Home >> Ford >> 2007 >> Escape 2WD L4-2.3L VIN Z >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Locations

Control Assembly: Locations

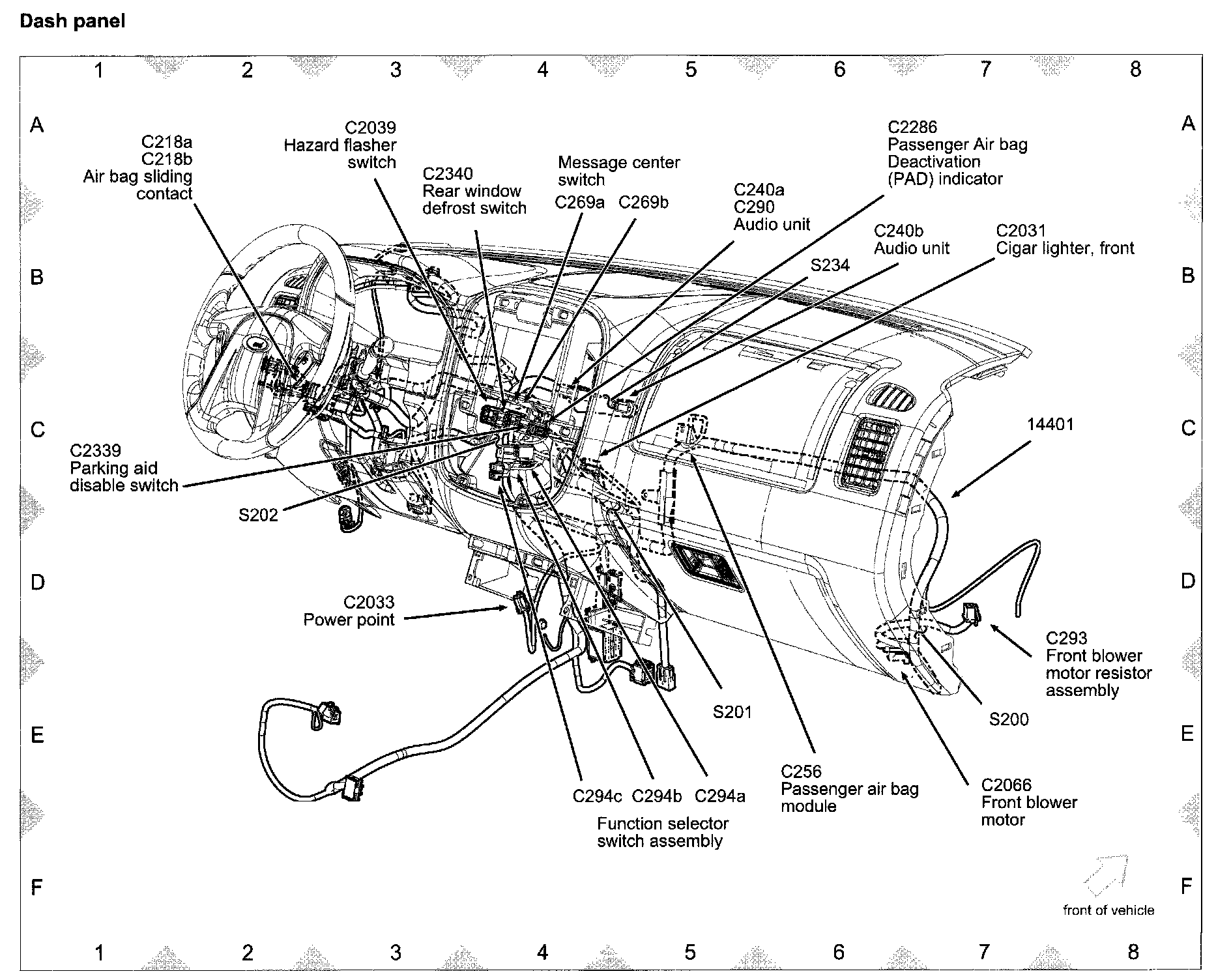

View 151-12 (Dash Panel):
