Parking Brake System
Parking Brake System

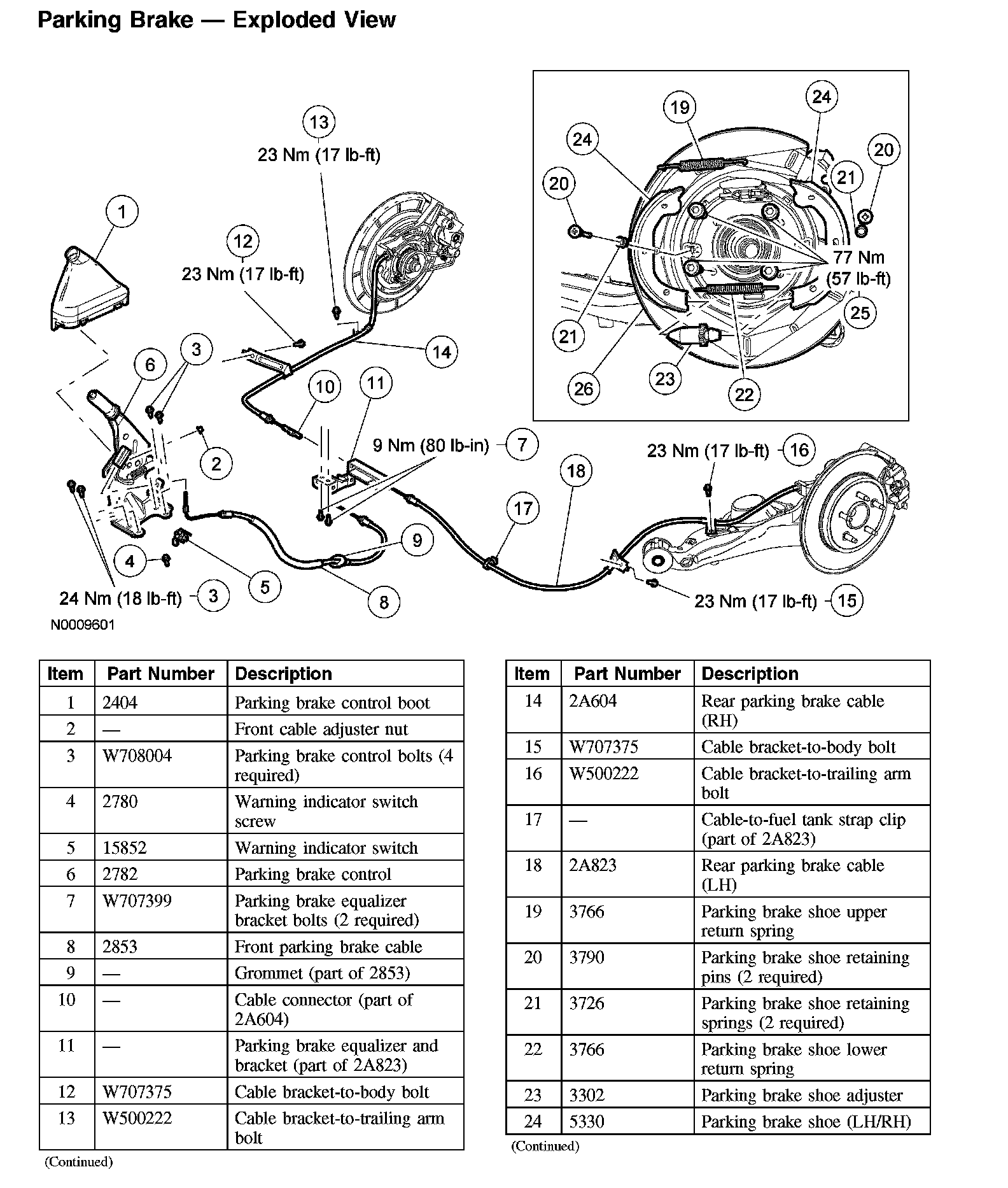

Parking Brake - Exploded View
Parking Brake - Exploded View (Part 1):
Parking Brake - Exploded View (Part 2):
