Escape 2WD L4-2.3L VIN Z
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Timing Components
Timing Components

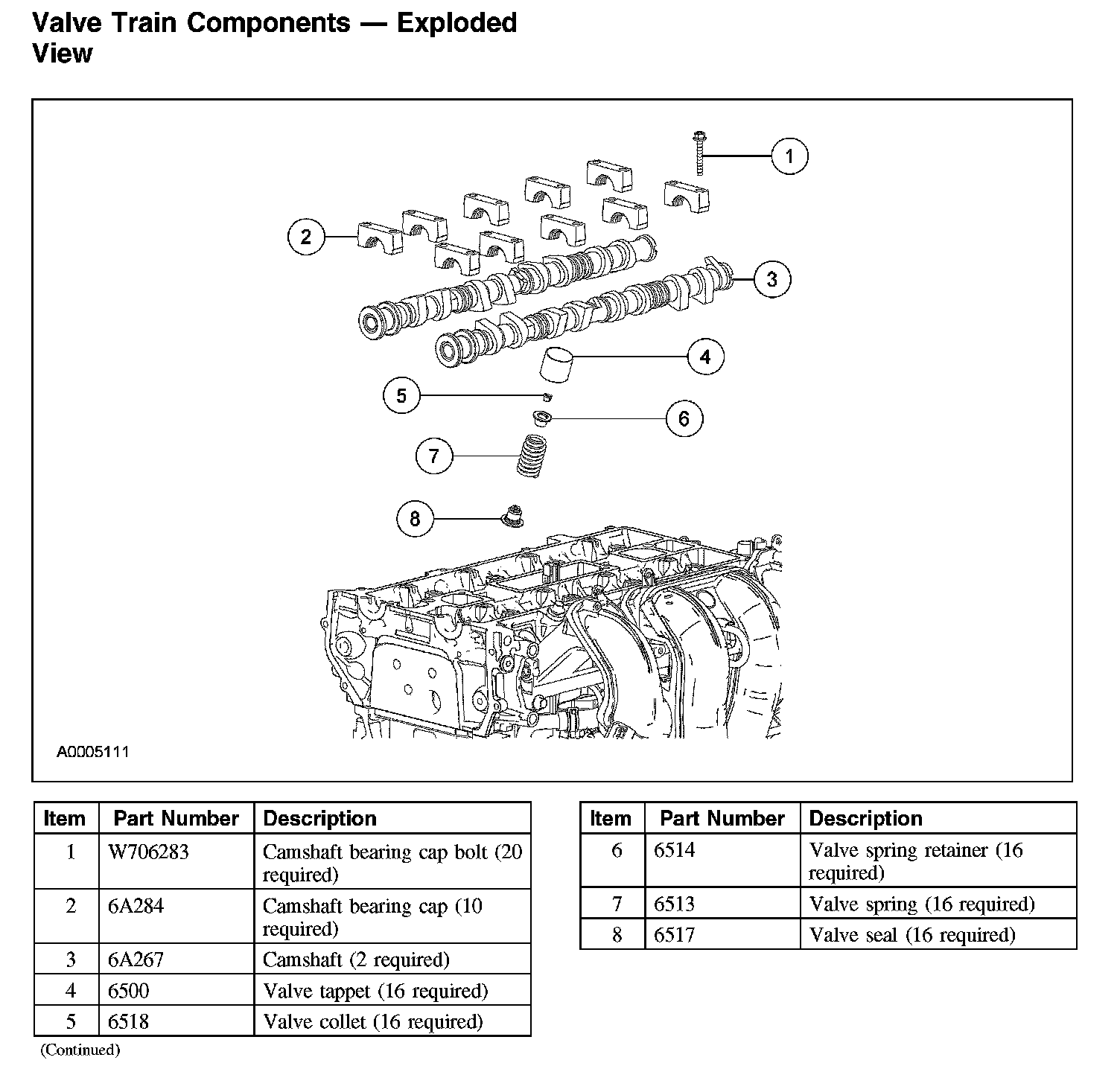

Valve Train Components - Exploded View
Valve Train Components - Exploded View:
