Lower End Components - Exploded View

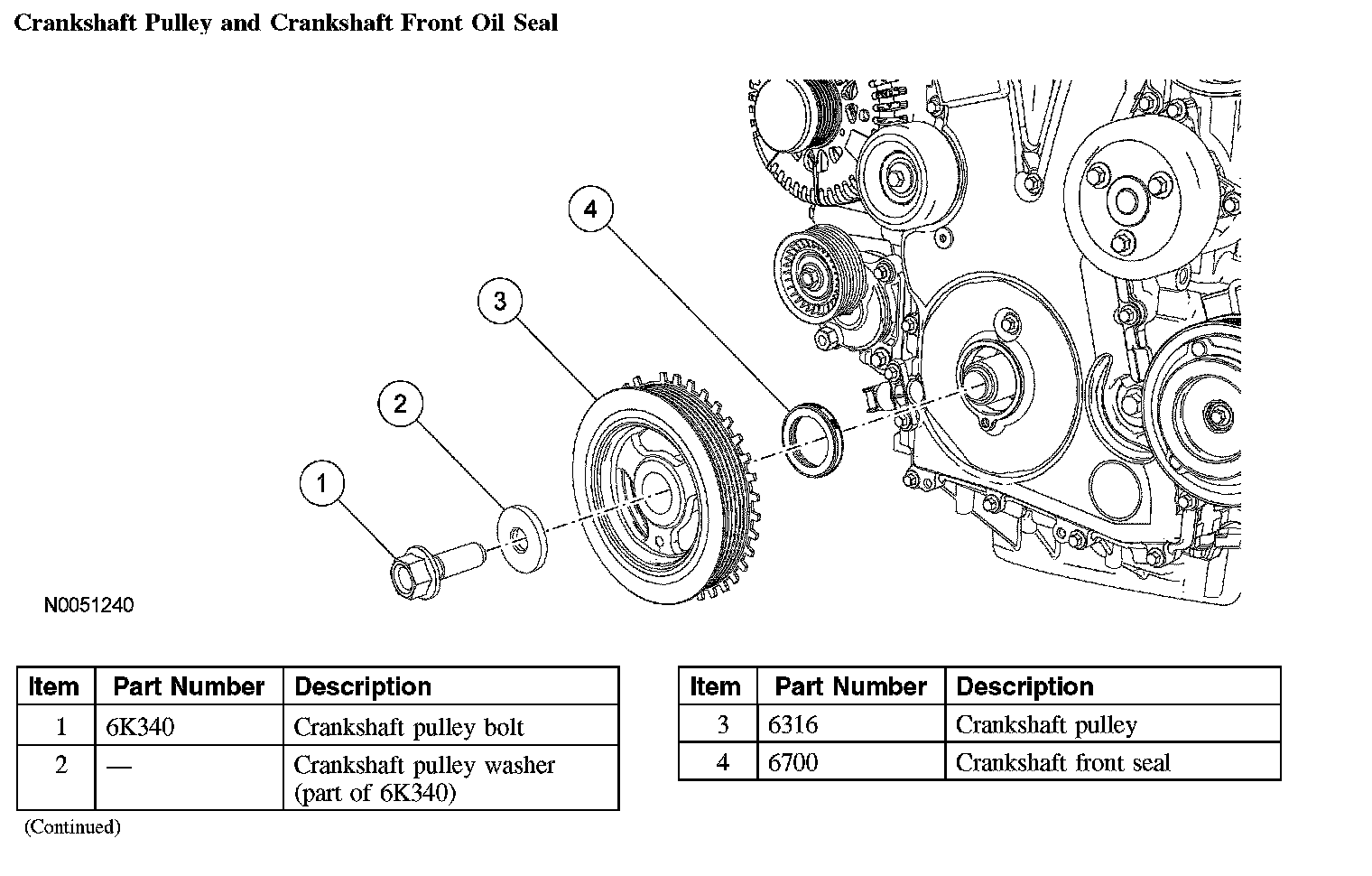

Crankshaft Pulley and Crankshaft Front Oil Seal:

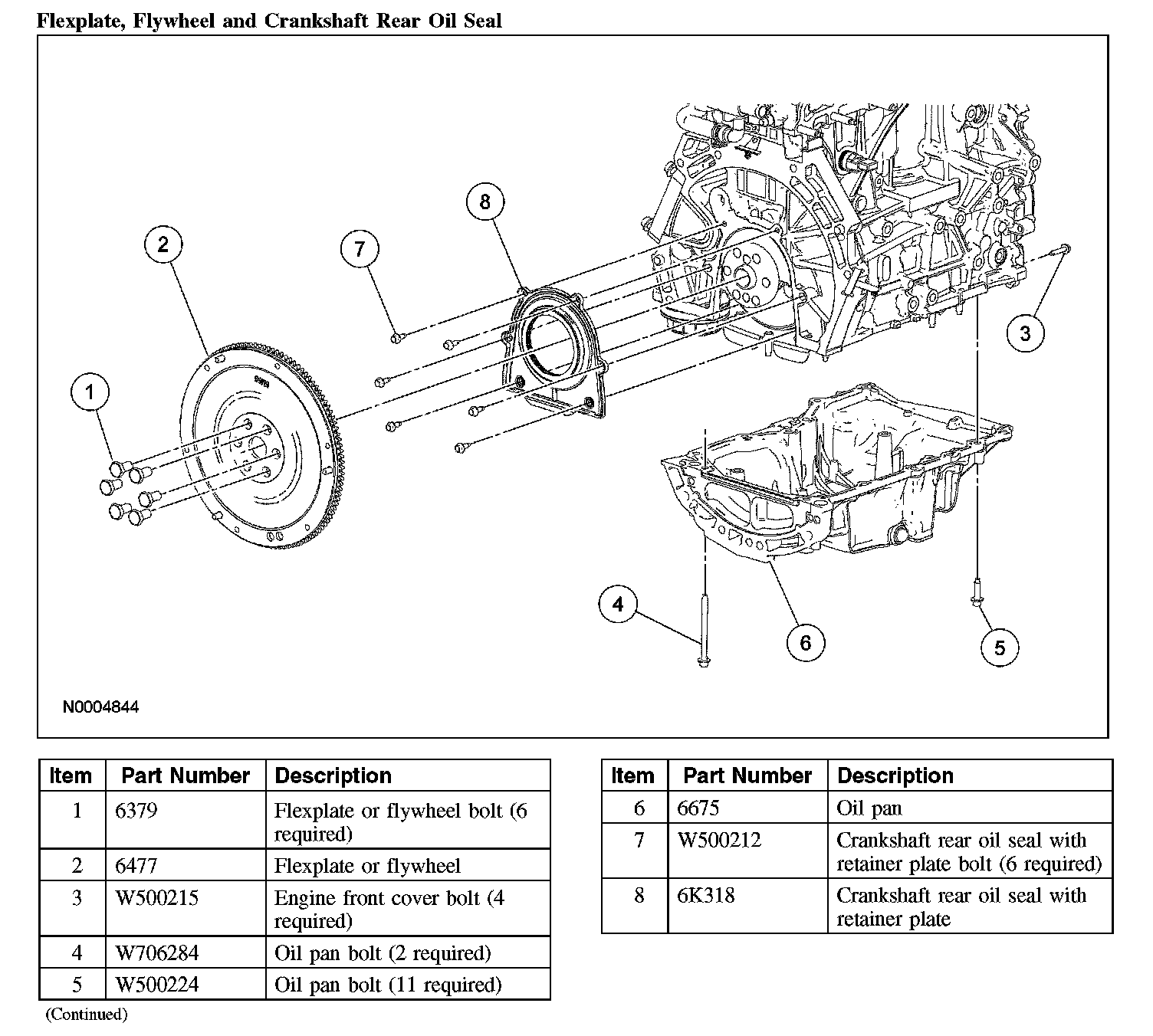

Flexplate, Flywheel and Crankshaft Rear Oil Seal:
