Home >> Ford >> 2007 >> Escape 2WD L4-2.3L VIN Z >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

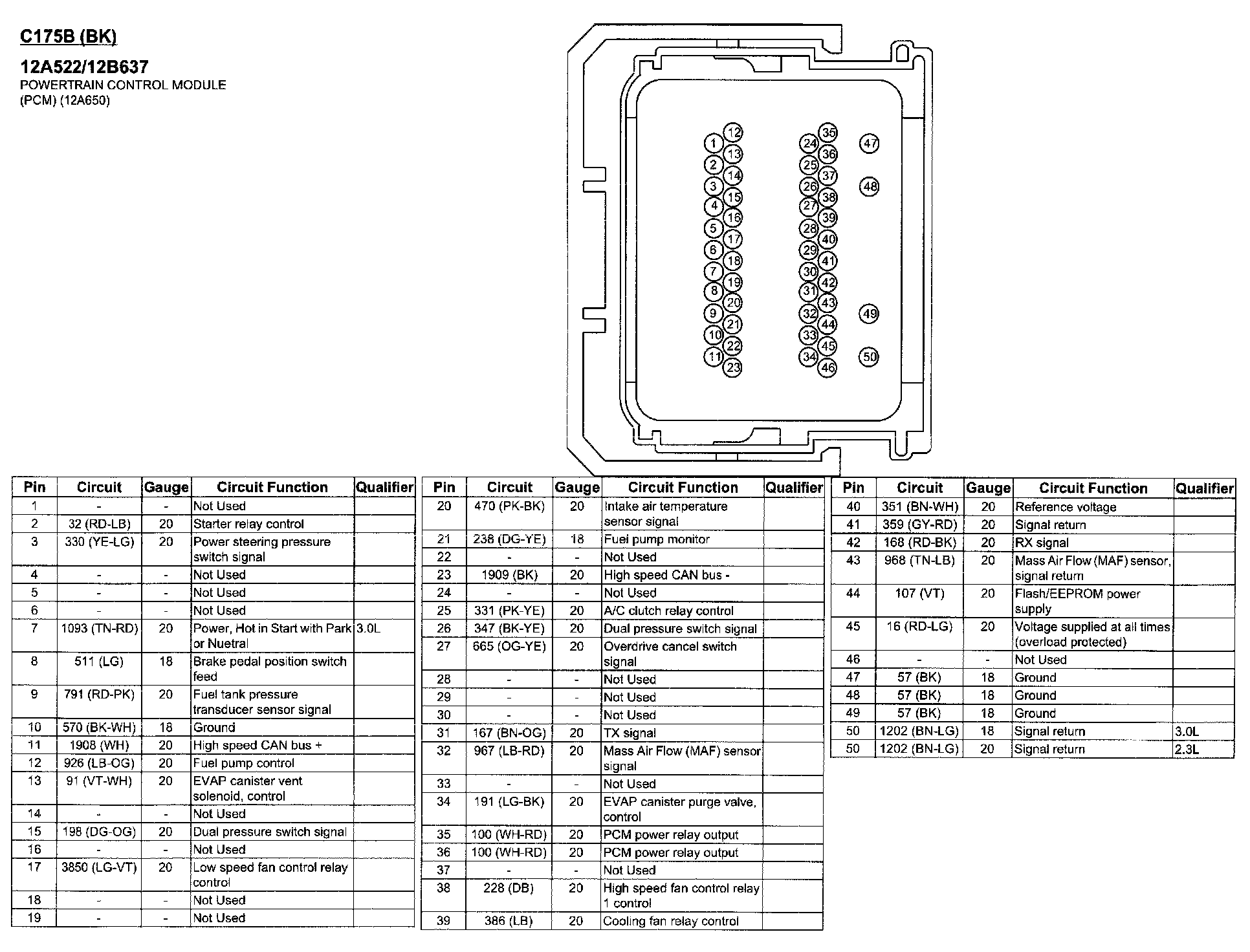

C175B:

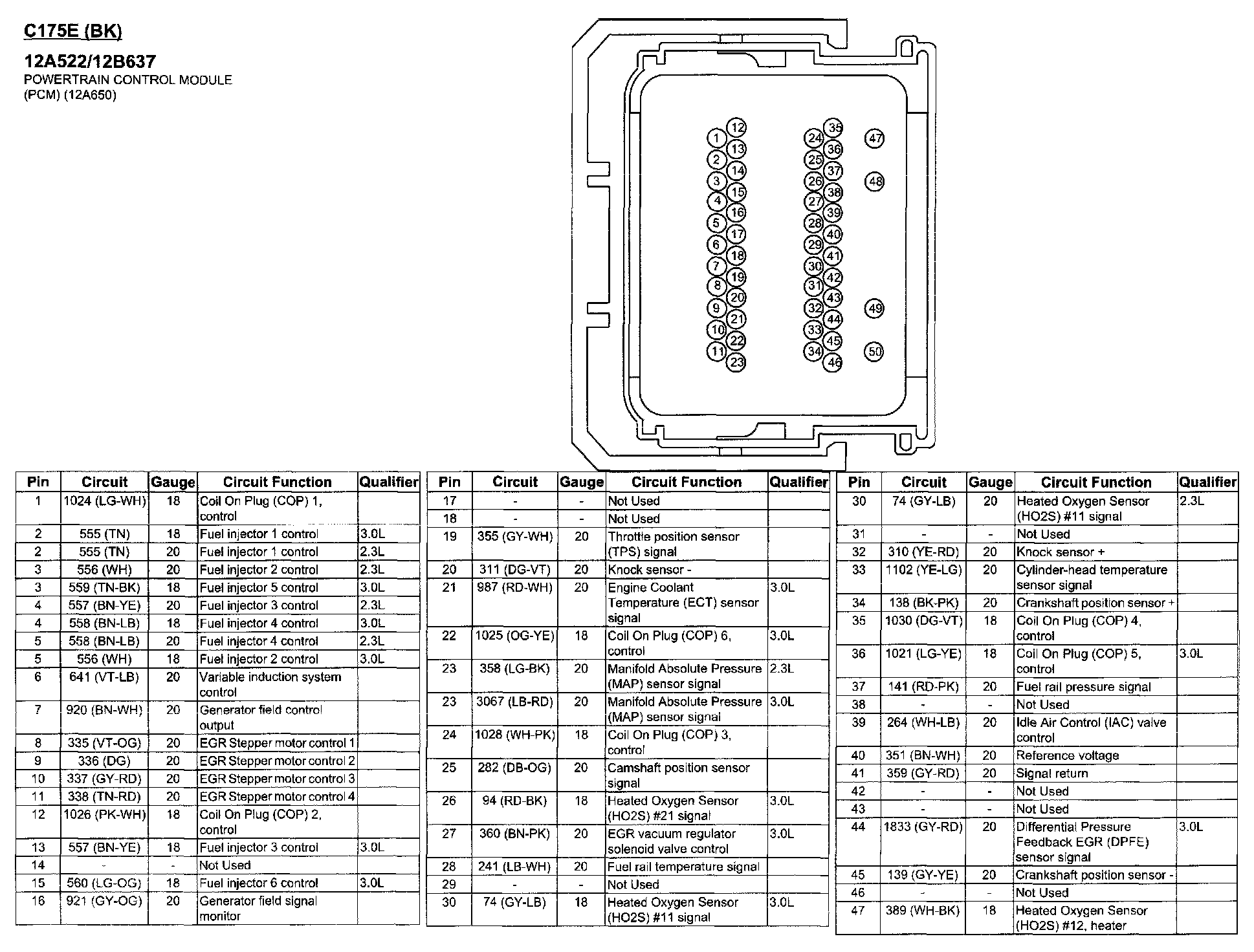

C175E (Part 1):

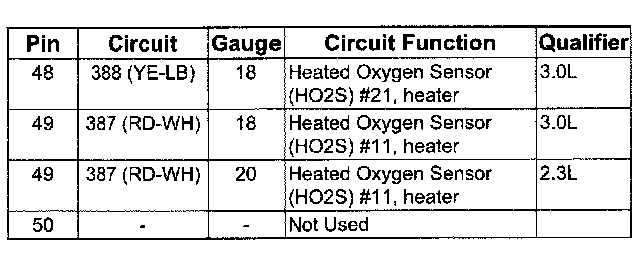

C175E (Part 2):

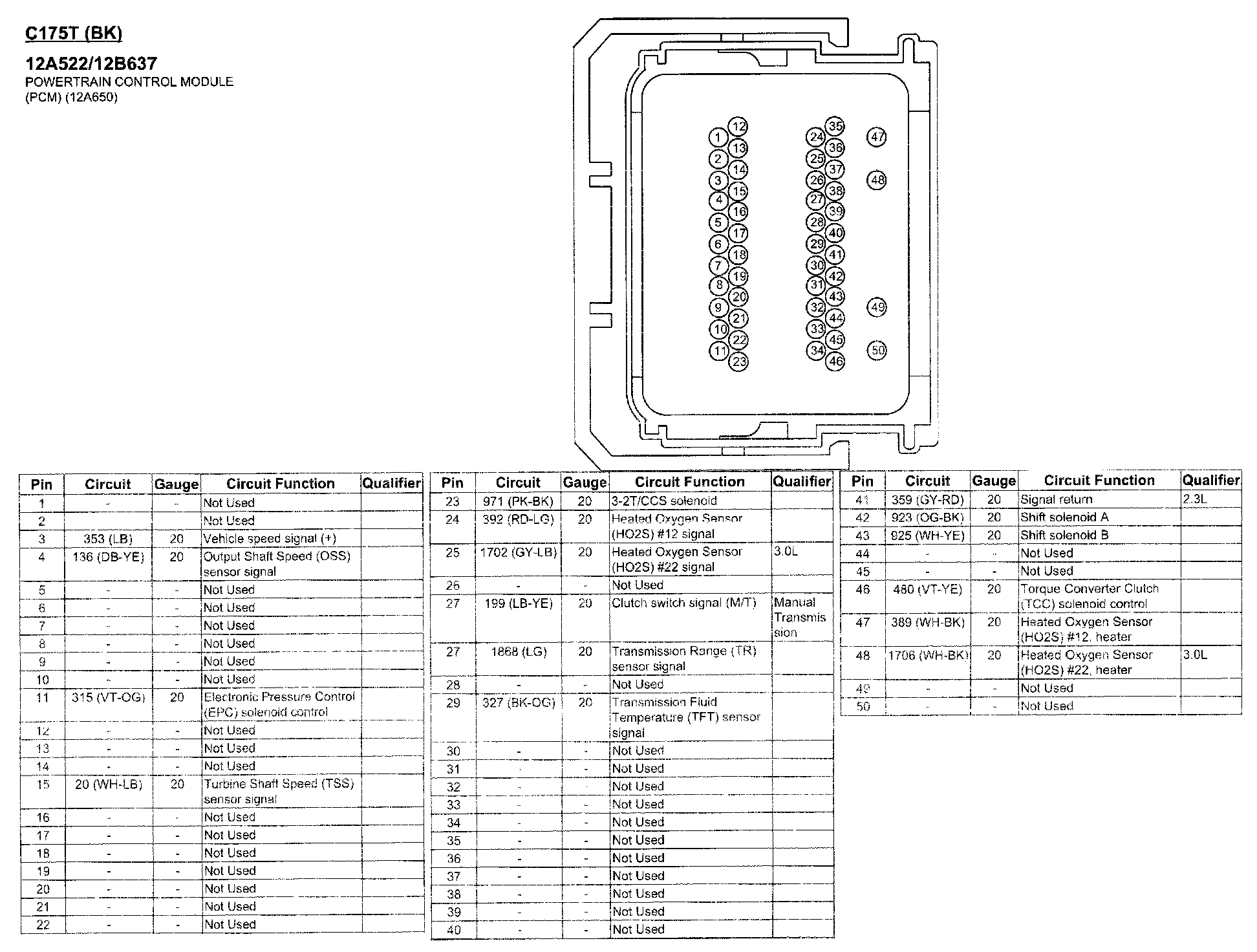

C175T:
