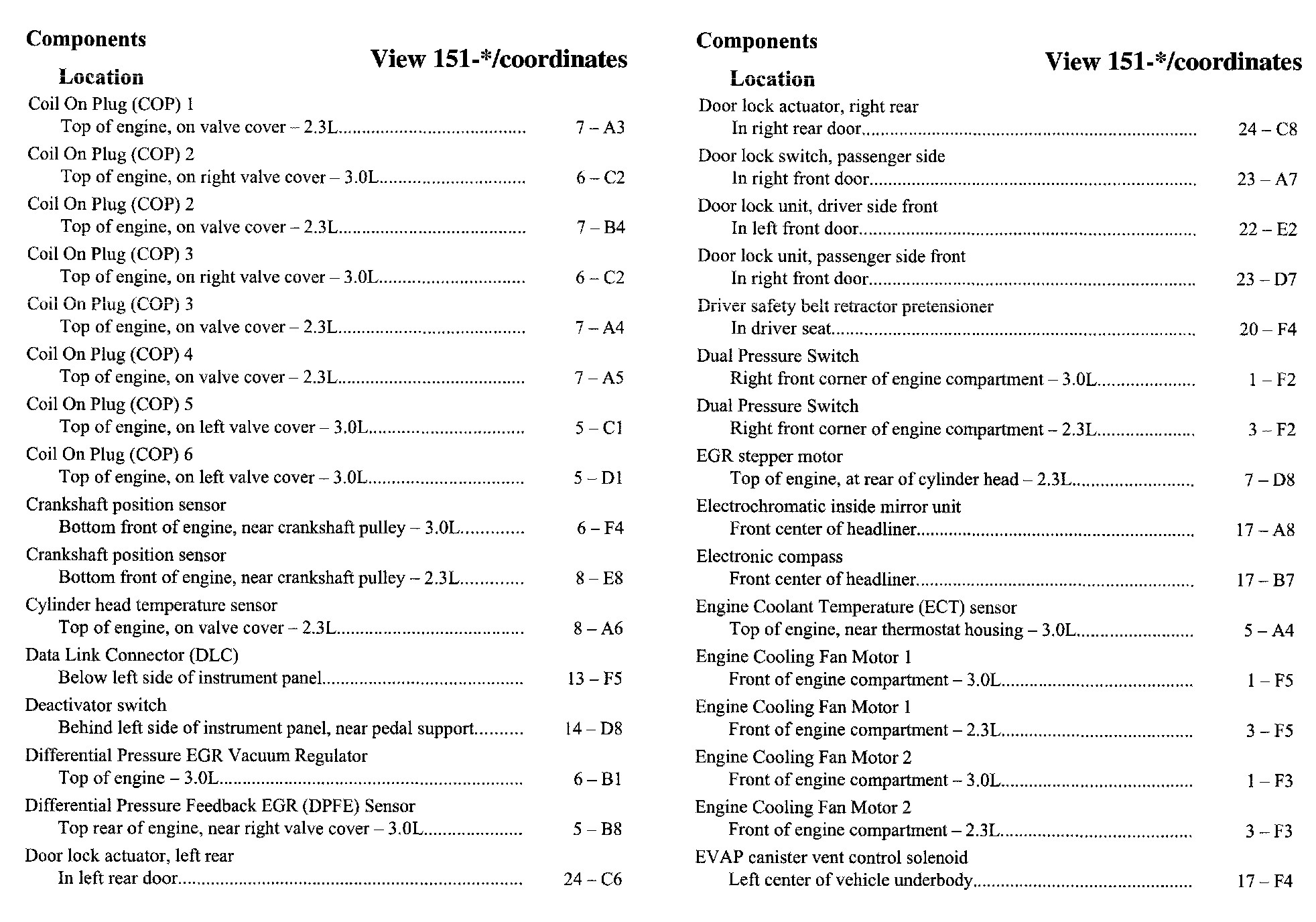

Component Location Index
PLEASE NOTE: If a link on the Component Location Index to a View is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.

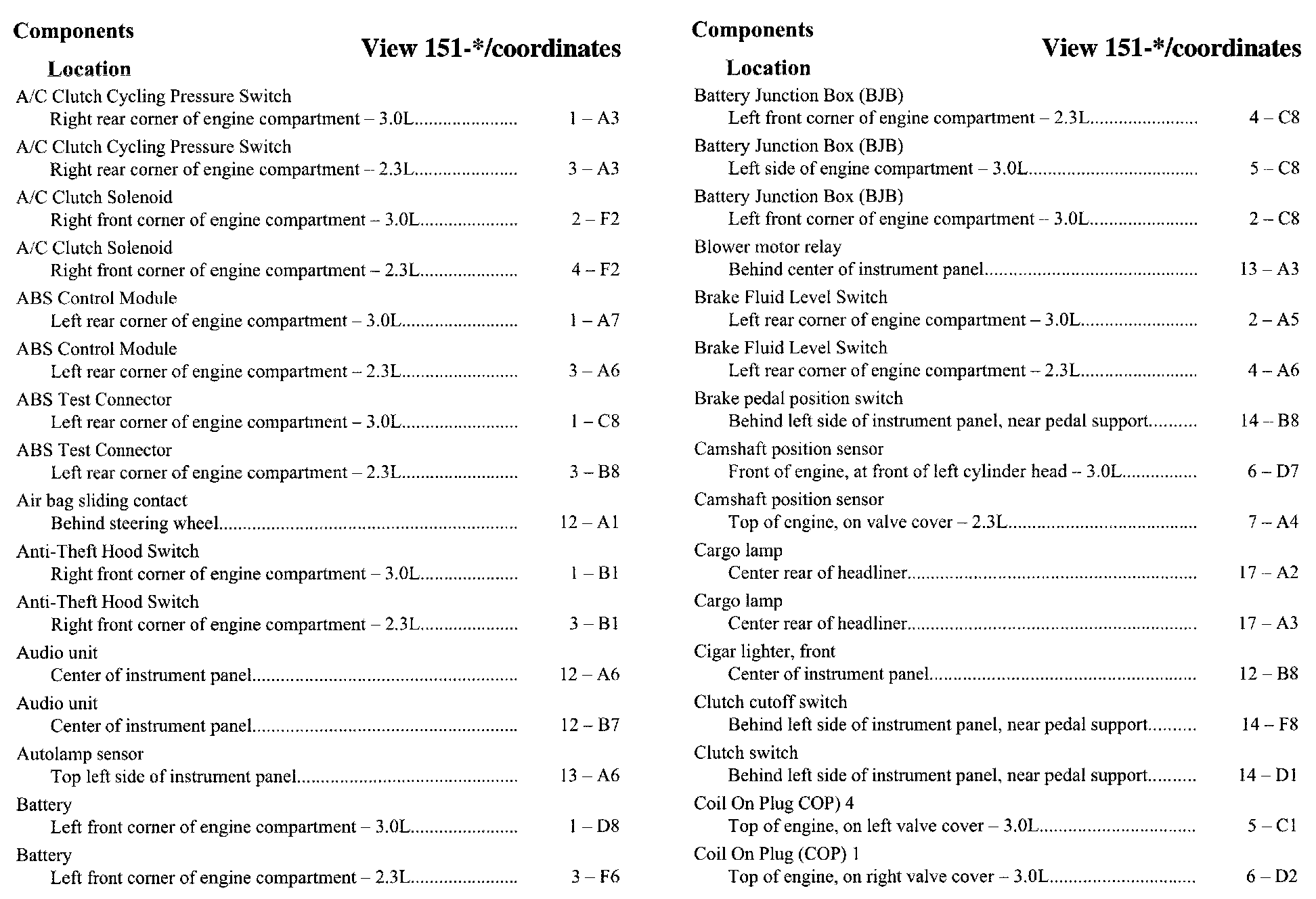

A/C-Co:
Co-EV:

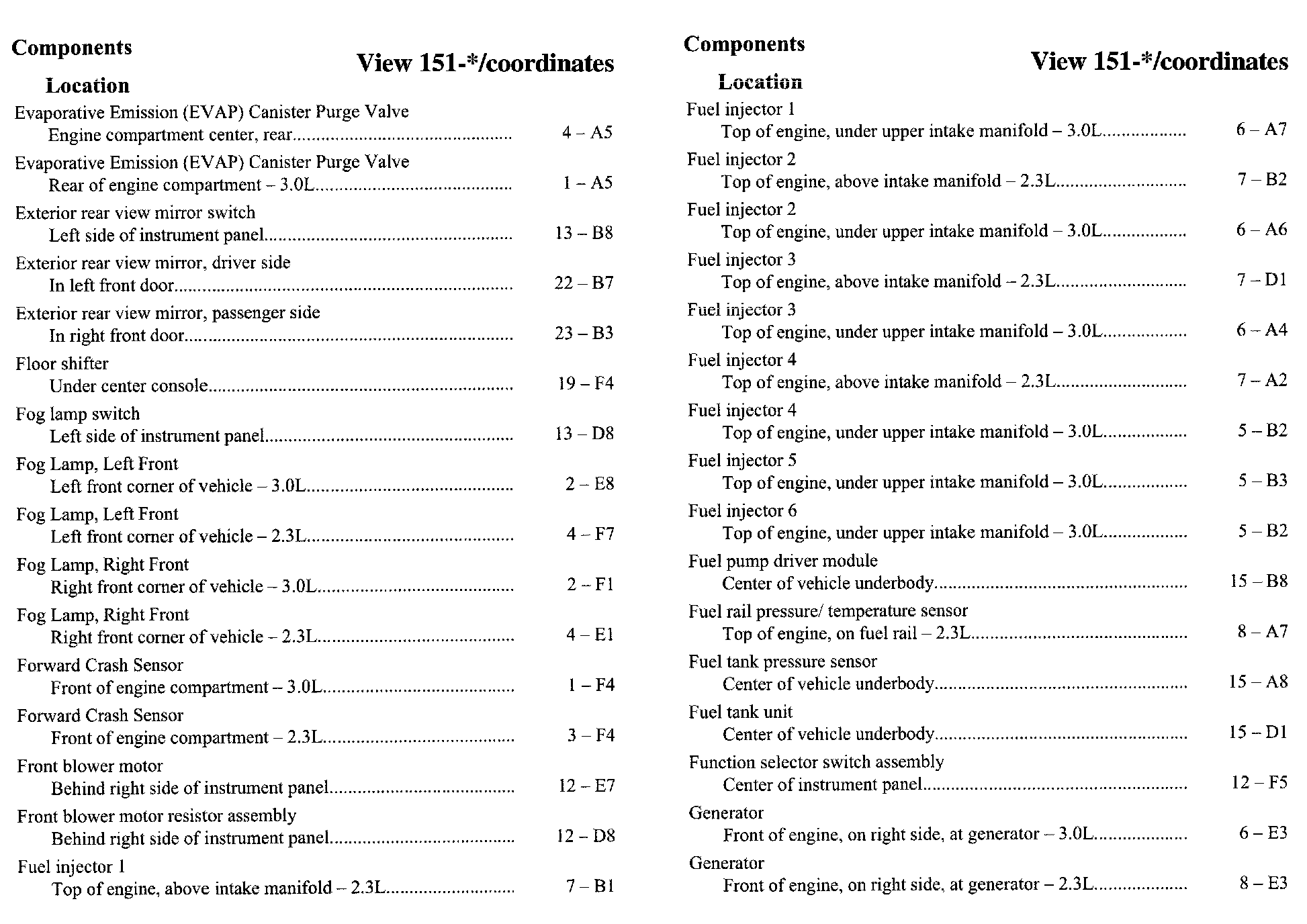

Ev-Ge:

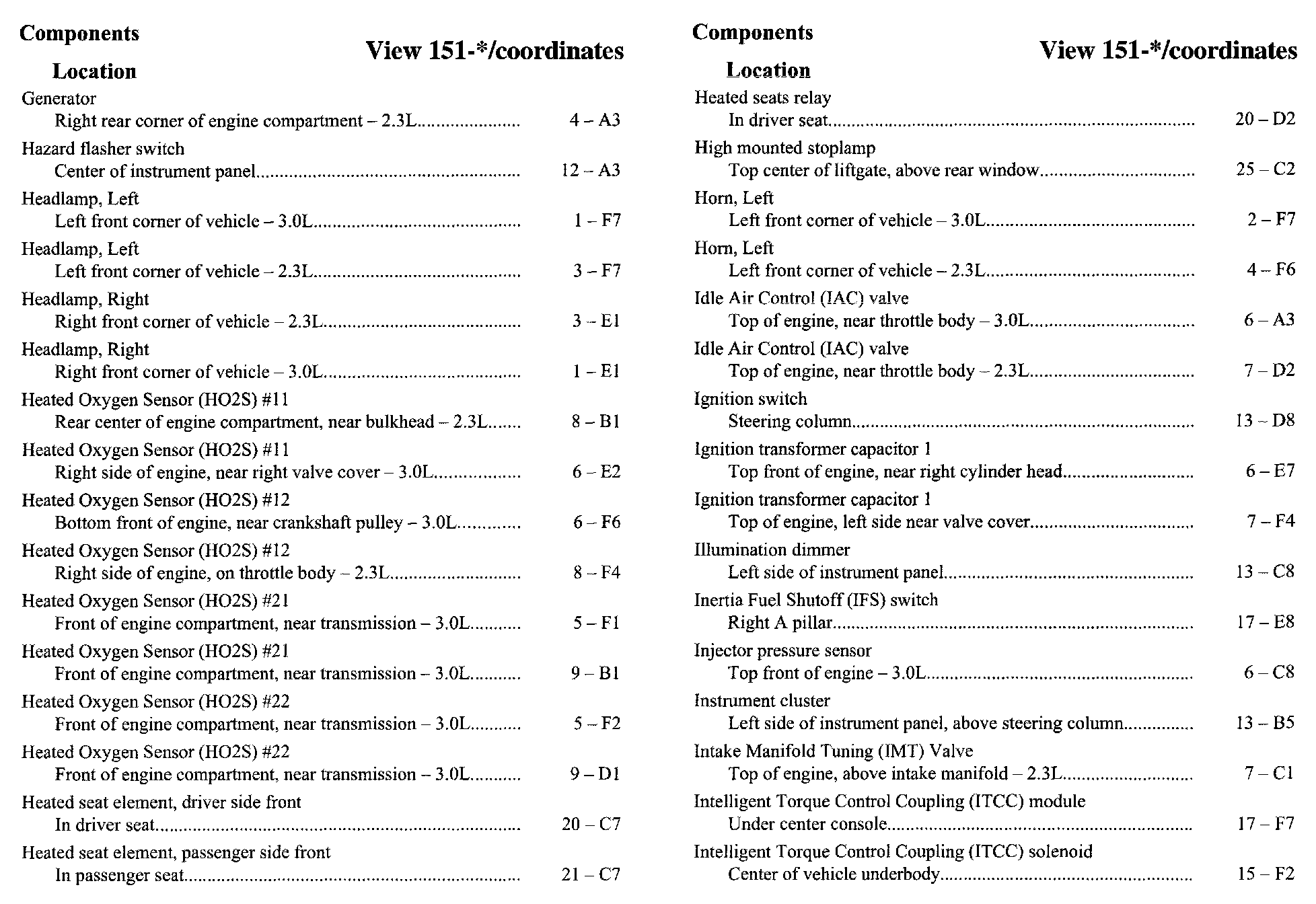

Ge-In:

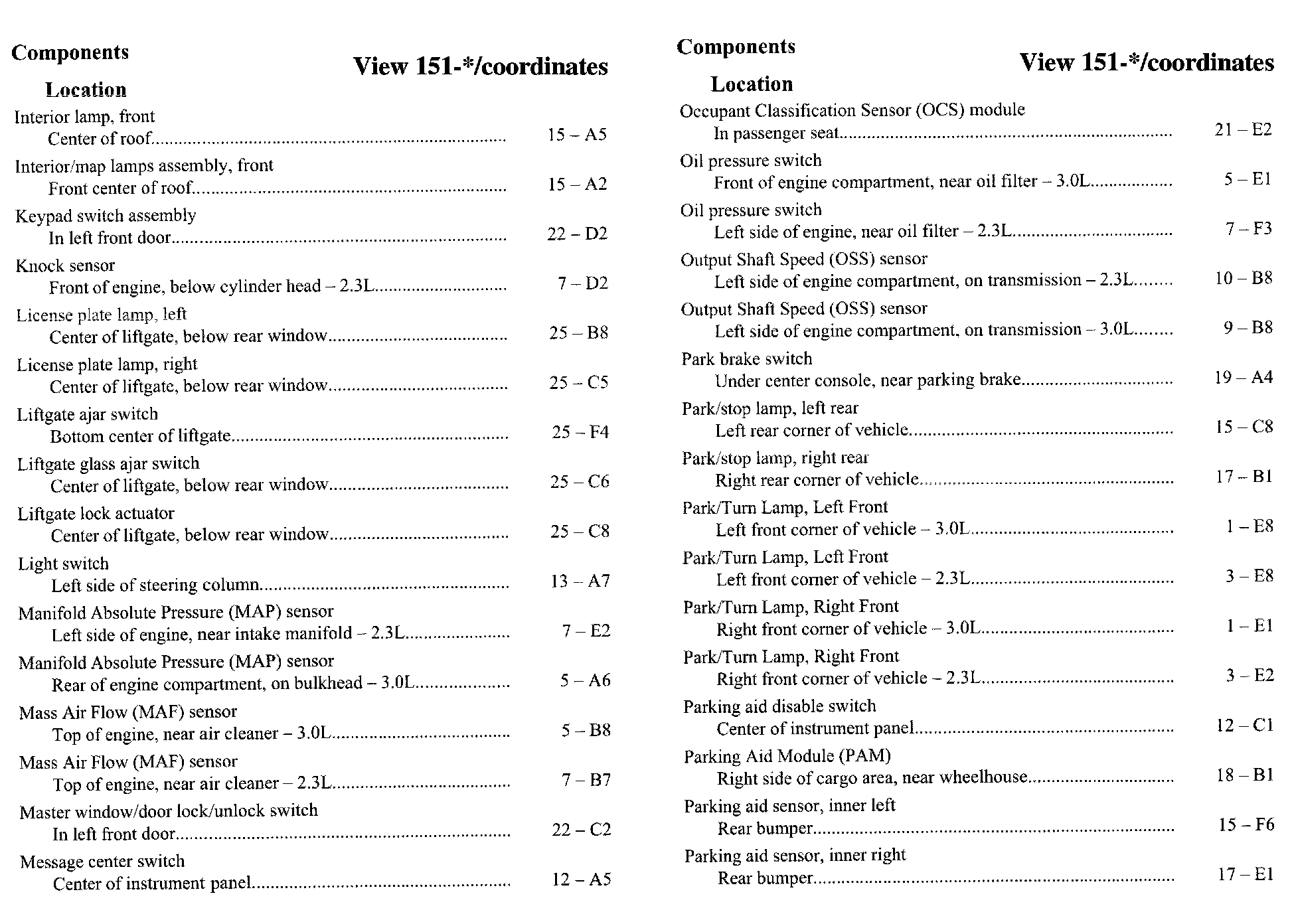

In-Pa:

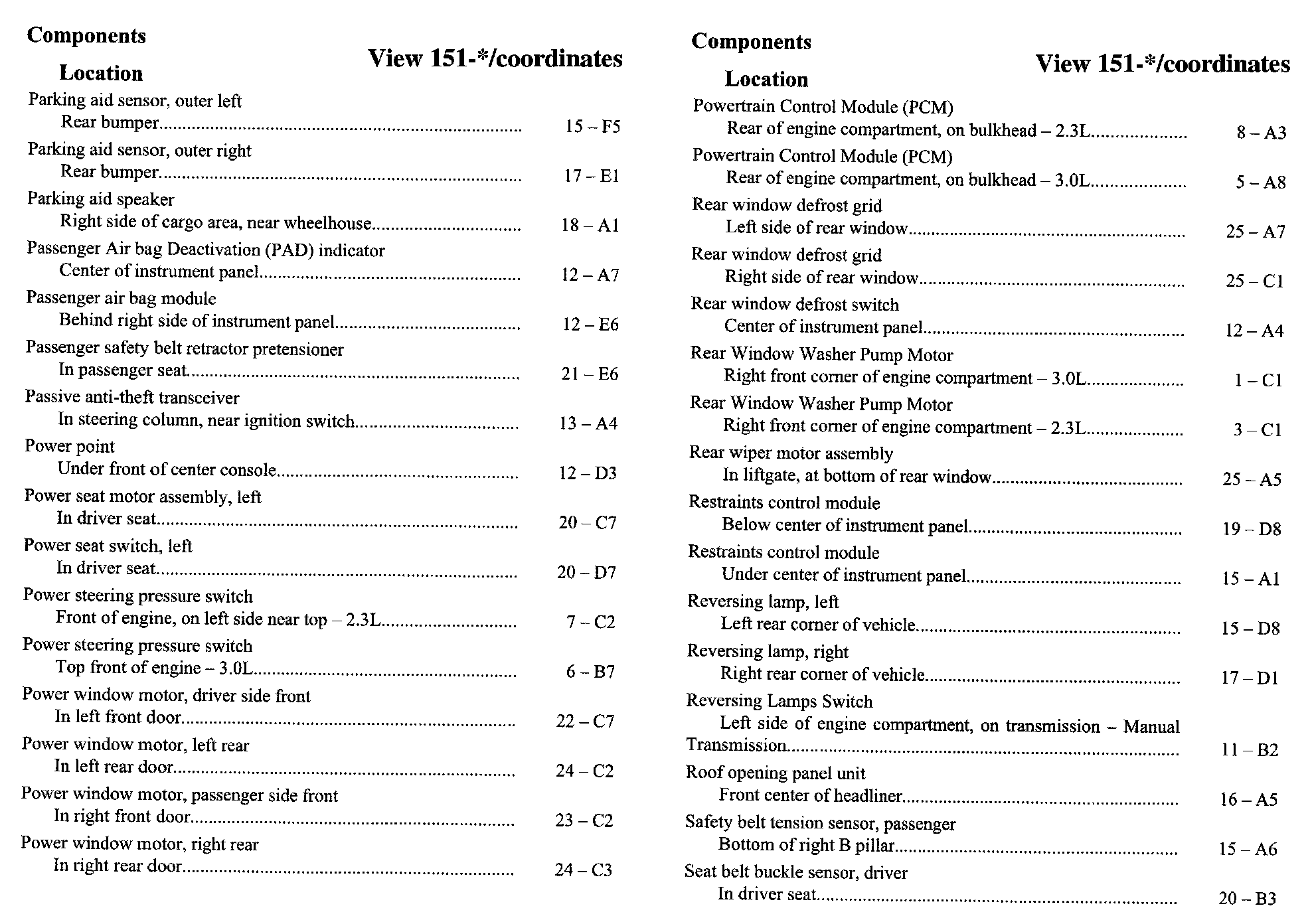

Pa-Se:

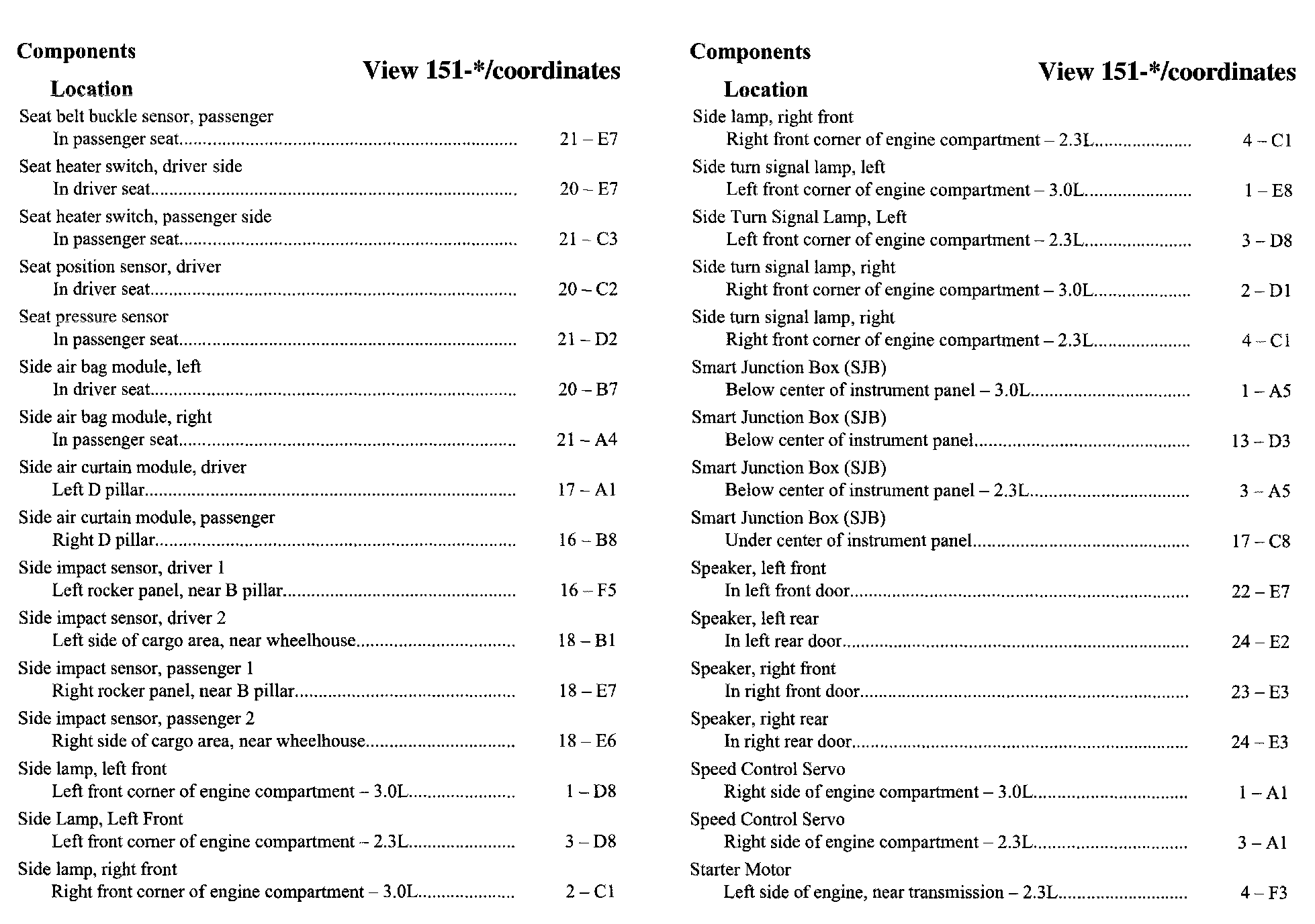

Se-St:

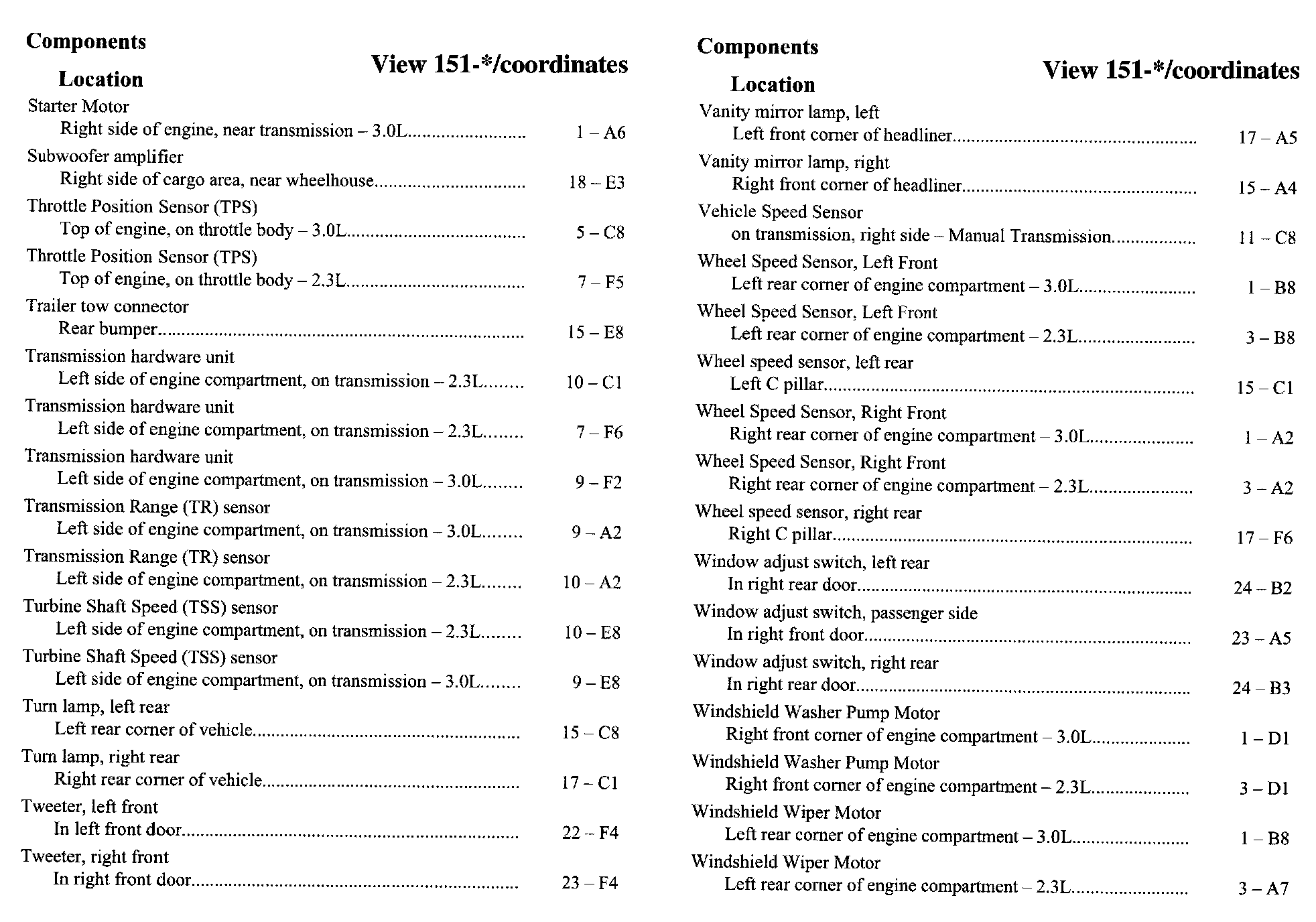

St-Wi:

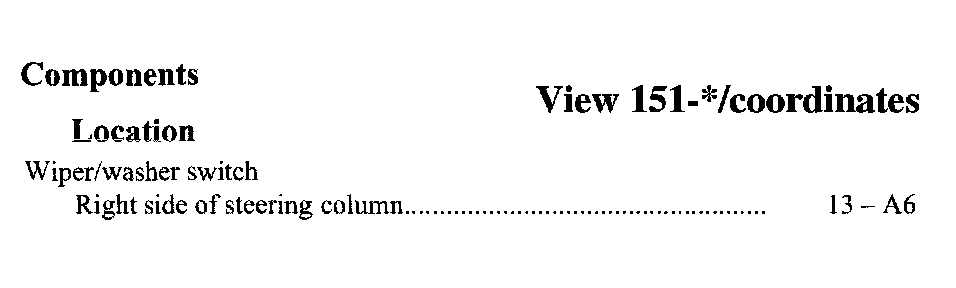

Wi:
