Keyless Entry Key-Pad: Service and Repair

KEYLESS ENTRY KEYPAD

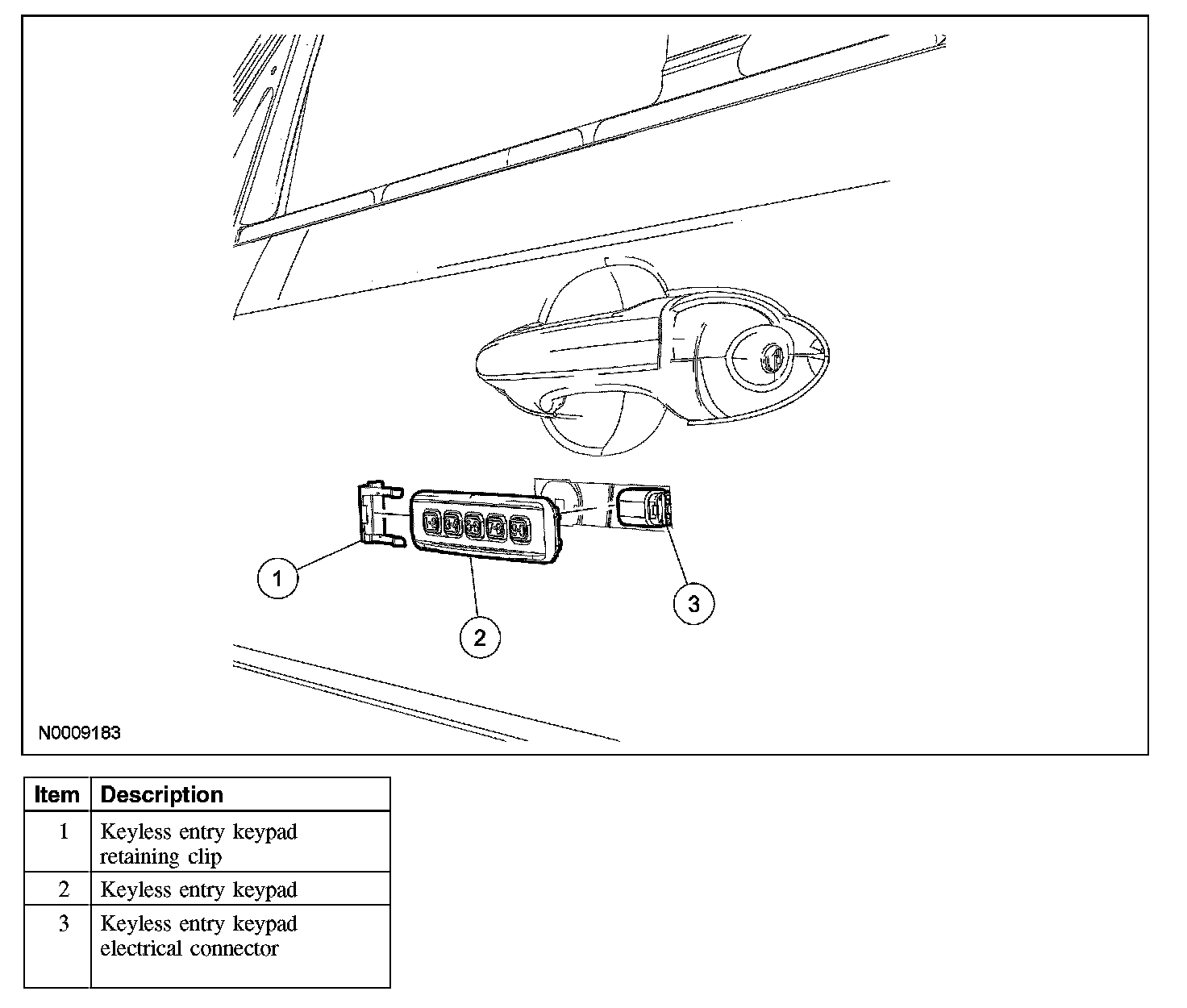

Removal and Installation
1. Remove the LH front door trim panel.
2. Position the watershield aside.
3. Remove the keyless entry keypad retaining clip.
4. Remove the keyless entry keypad from the door.
- Disconnect the electrical connector.

5. To install, reverse the removal procedure.
