Home >> Ford >> 2007 >> Edge FWD V6-3.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> Module Communications Network

Module Communications Network

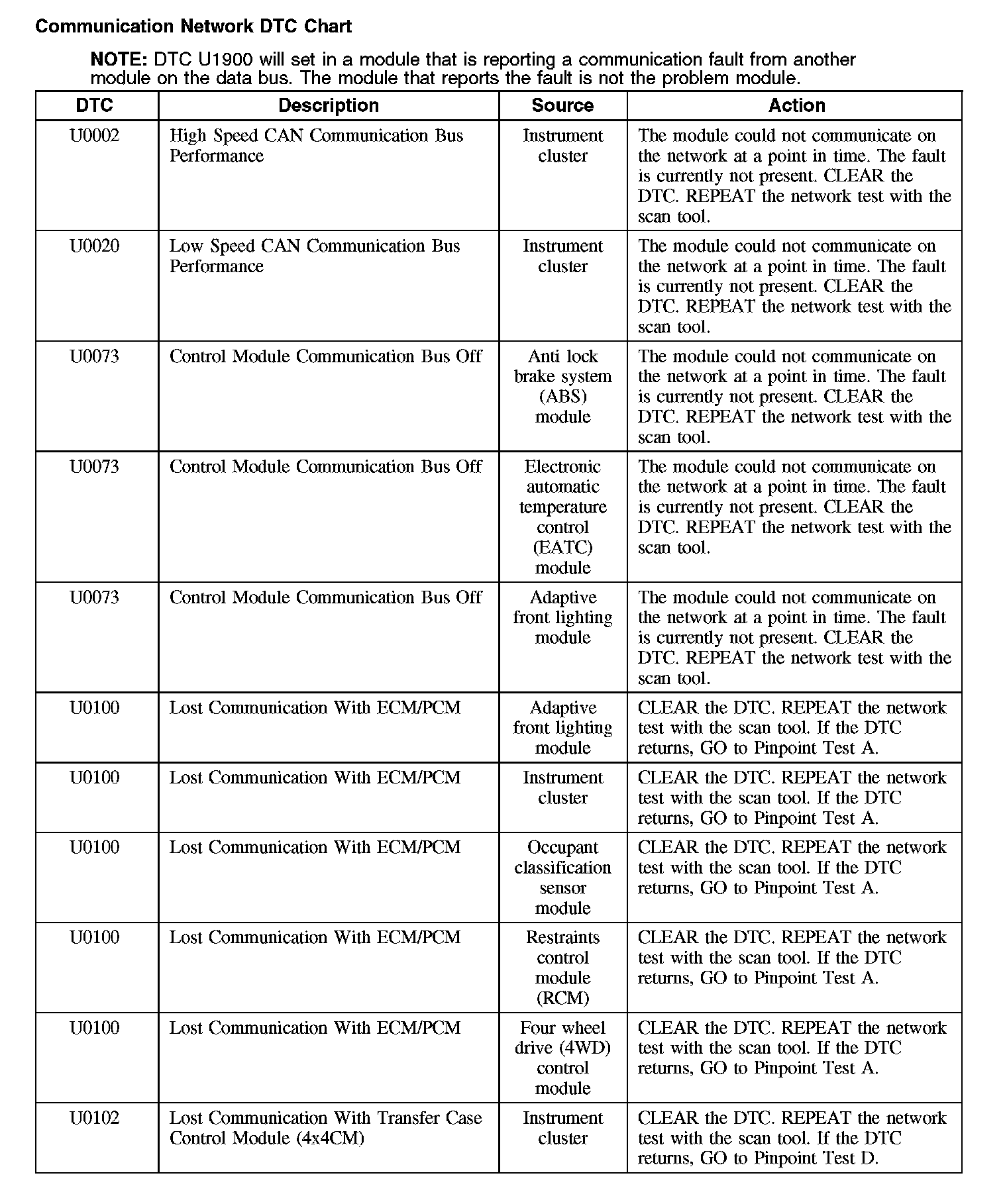

U0002-U0102:

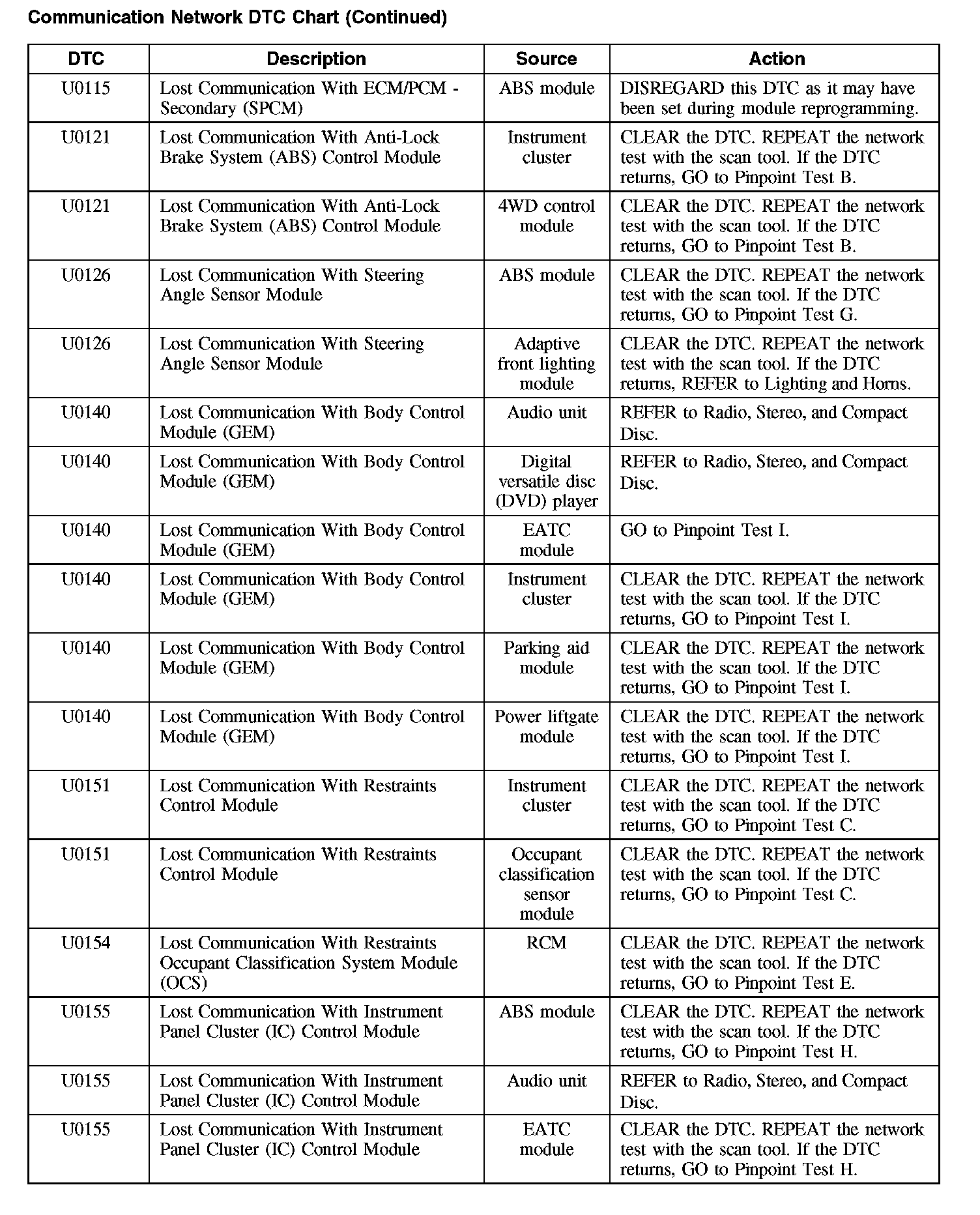

U0115-U0155:

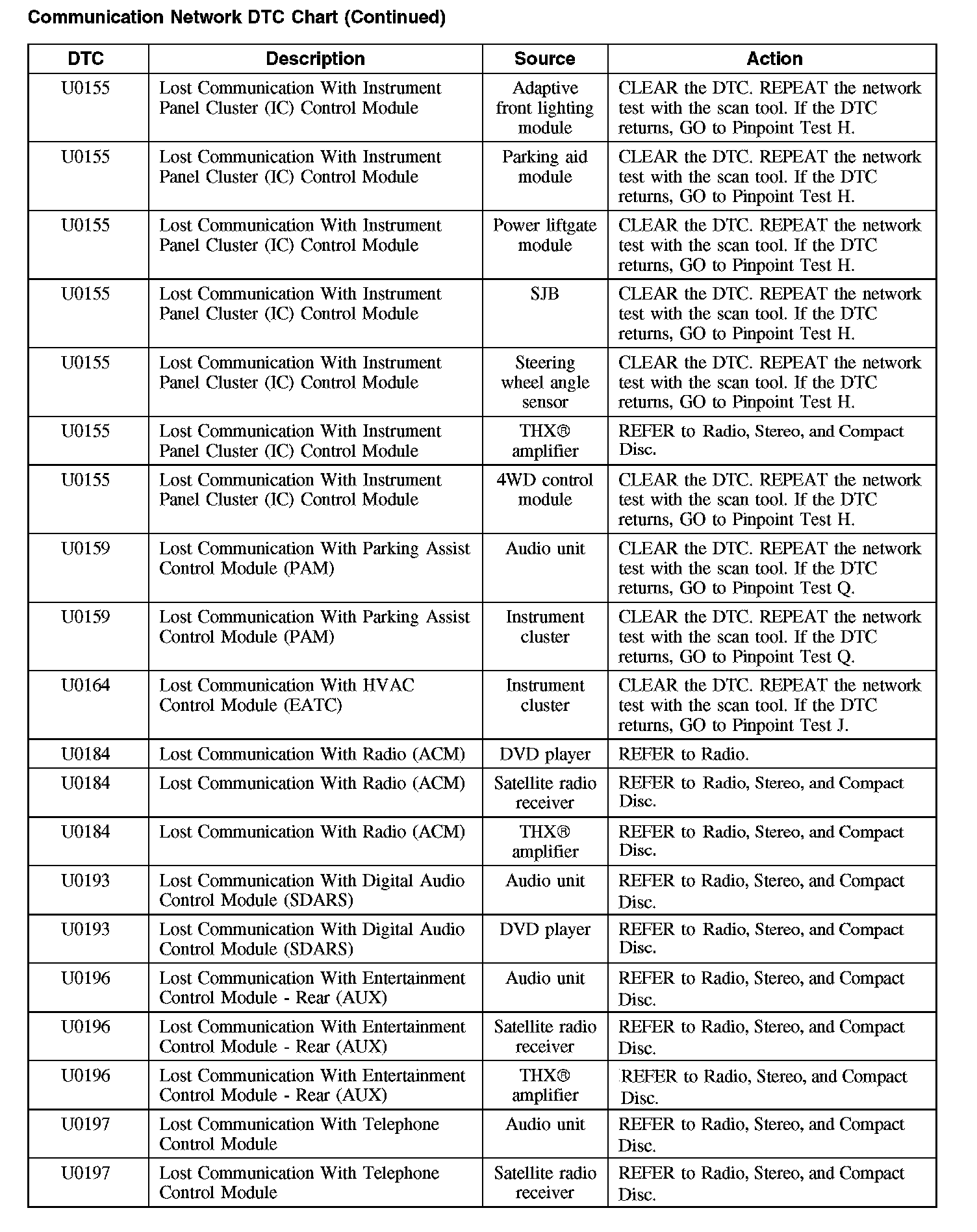

U0155-U0197:

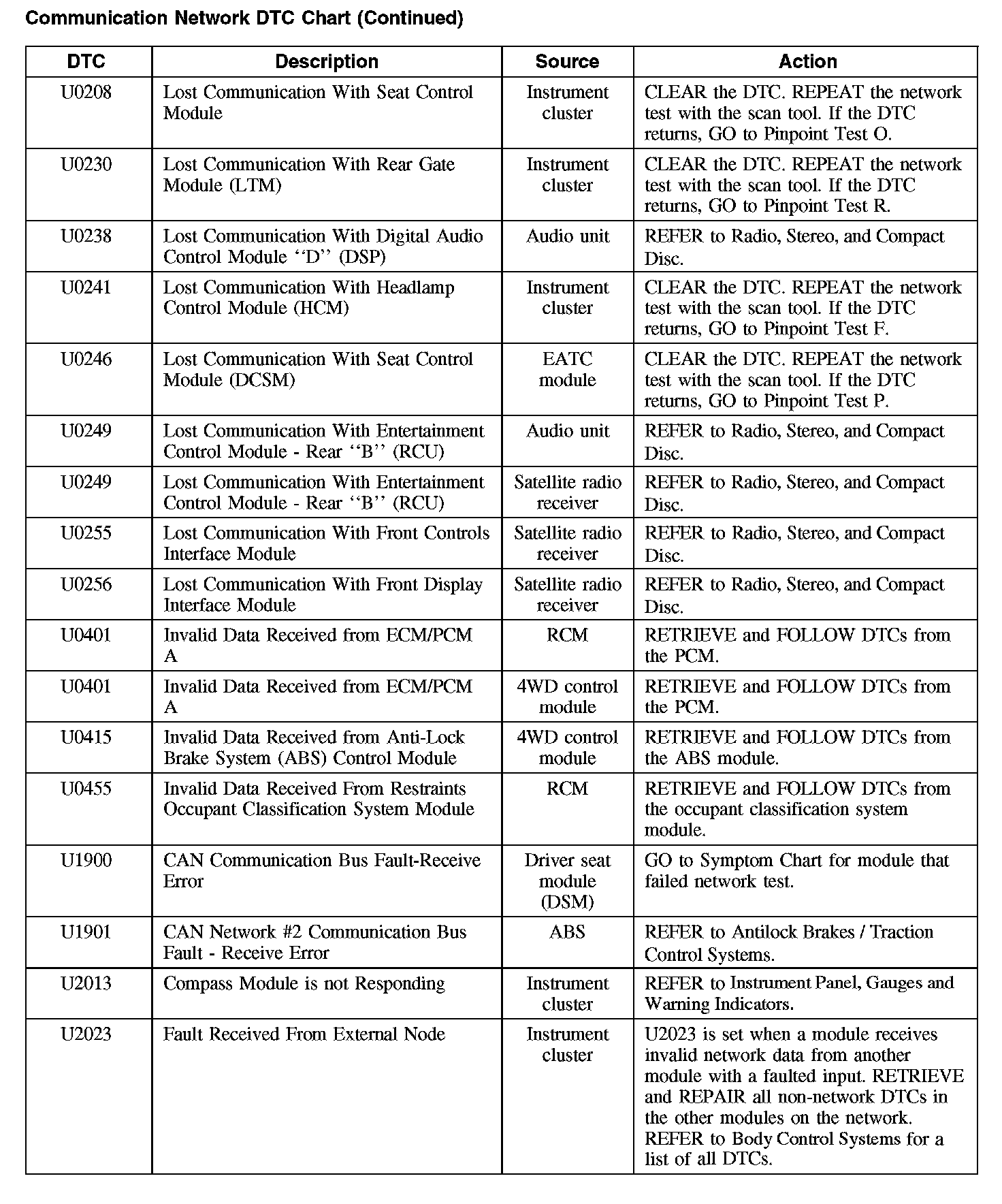

U0208-U2023:

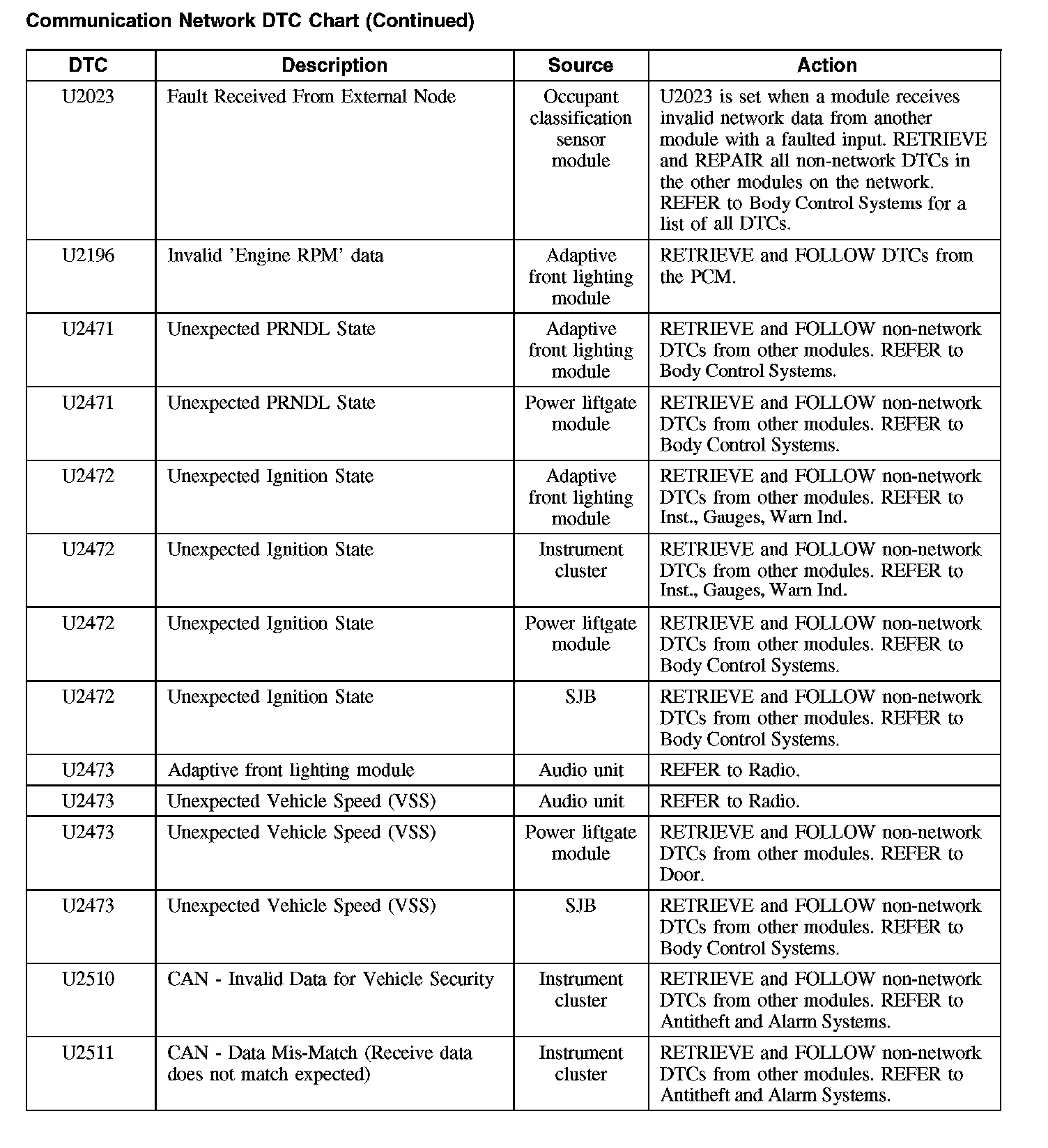

U2023-U2511:
