Ford
>>
2007
>>
Edge FWD V6-3.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Air Flow Meter/Sensor
>>
Diagrams
Air Flow Meter/Sensor: Diagrams

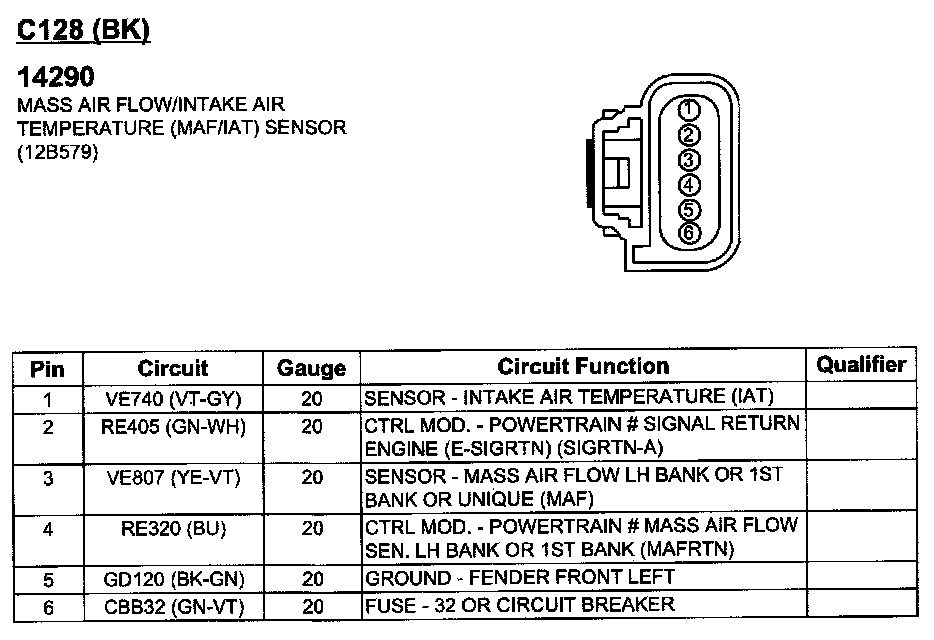

C128:
