Home >> Ford >> 2007 >> Edge AWD V6-3.5L >> Repair and Diagnosis >> Maintenance >> Drive Belt >> Diagrams >> Exploded Views

Exploded Views

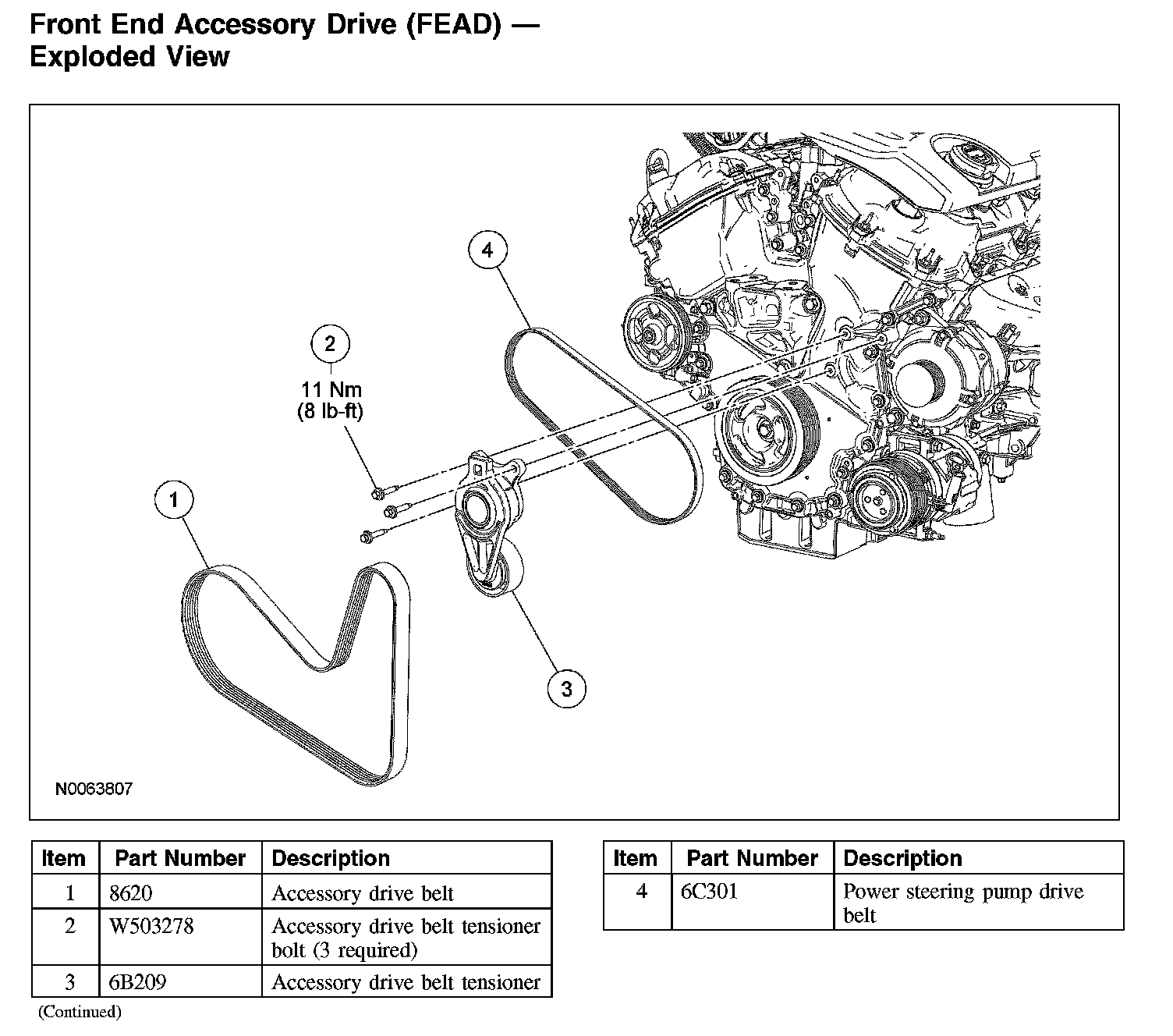

Front End Accessory Drive (FEAD) - Exploded View

Front End Accessory Drive (FEAD) - Exploded View:
