Valve Train Components - Exploded View

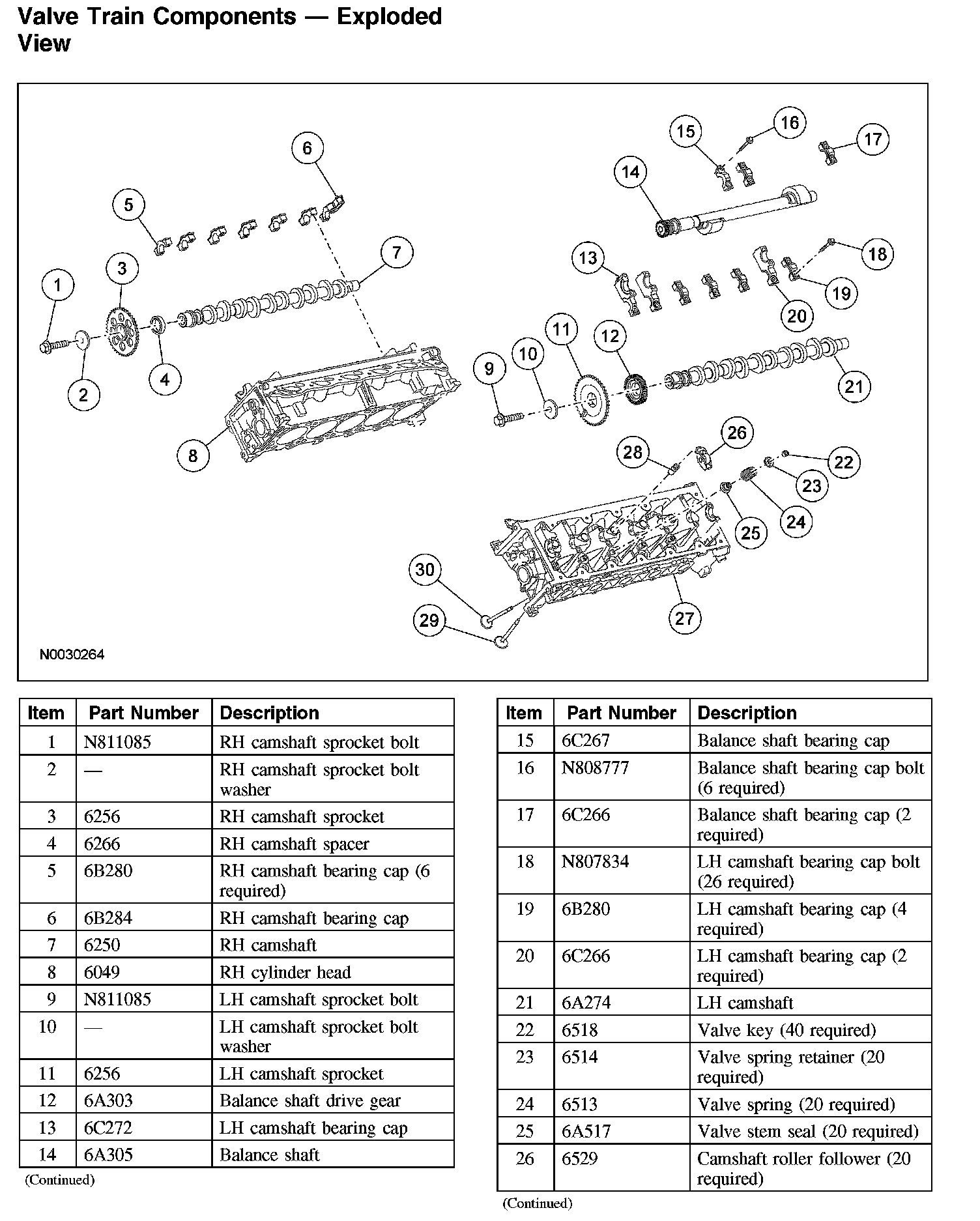

Valve Train Components - Exploded View (Part 1):

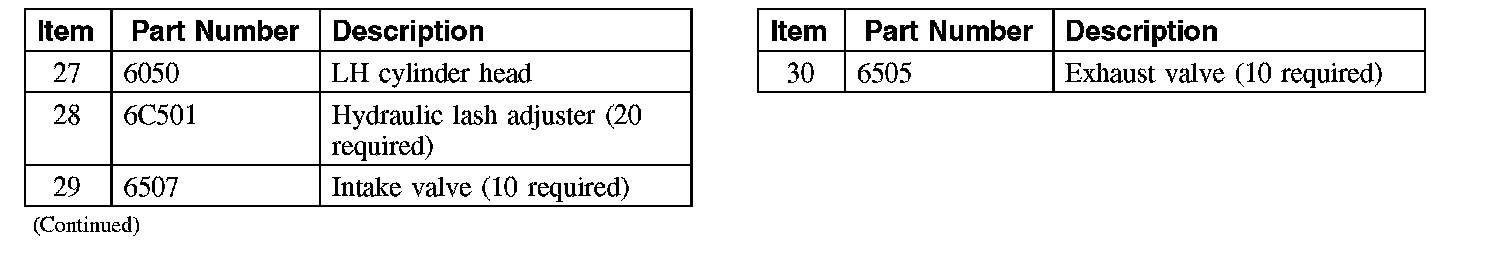

Valve Train Components - Exploded View (Part 2):
