Home >> Ford >> 2007 >> E 450 V10-6.8L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> System Diagram

System Diagram

Engine - Lower End

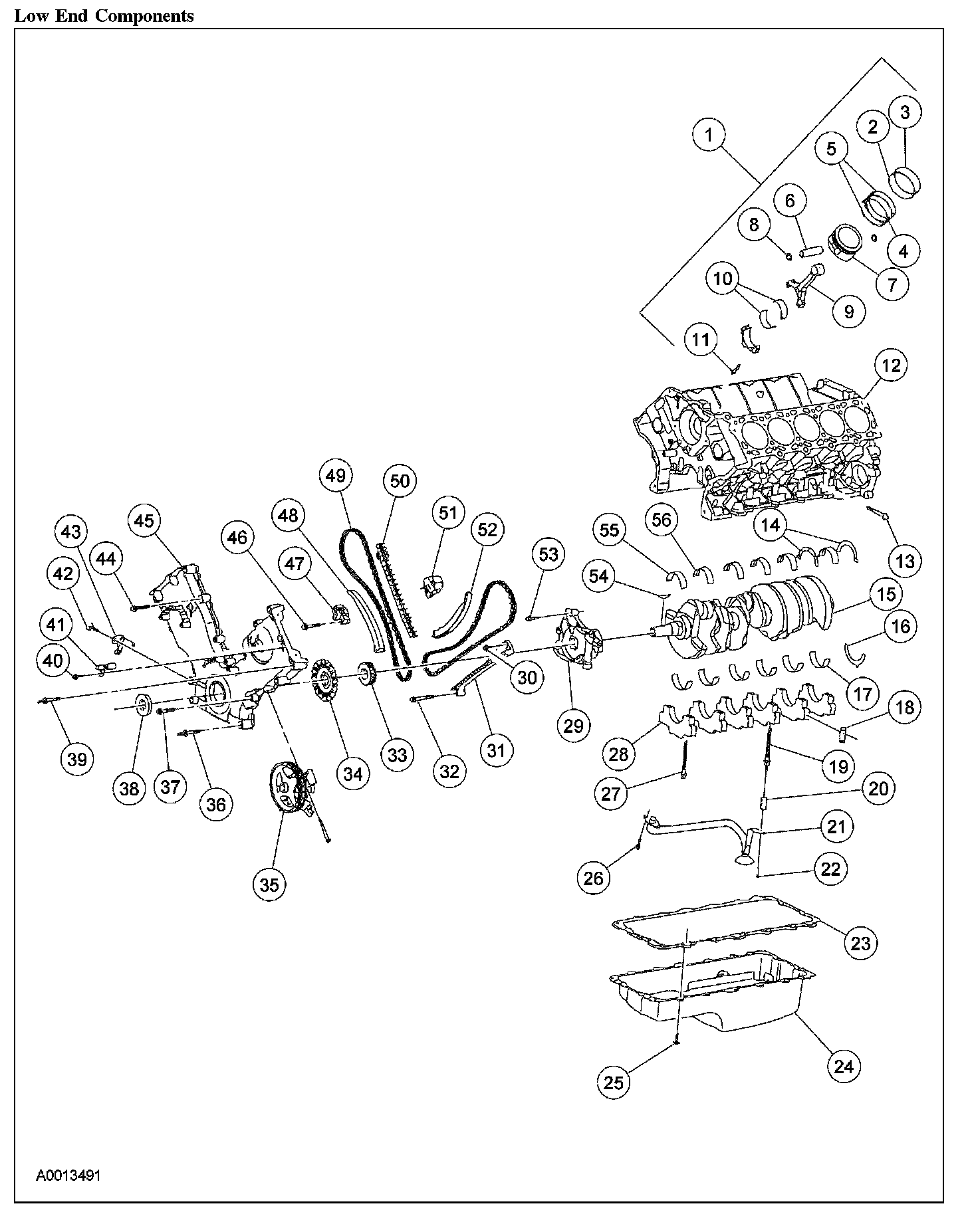

Low End Components (Part 1):

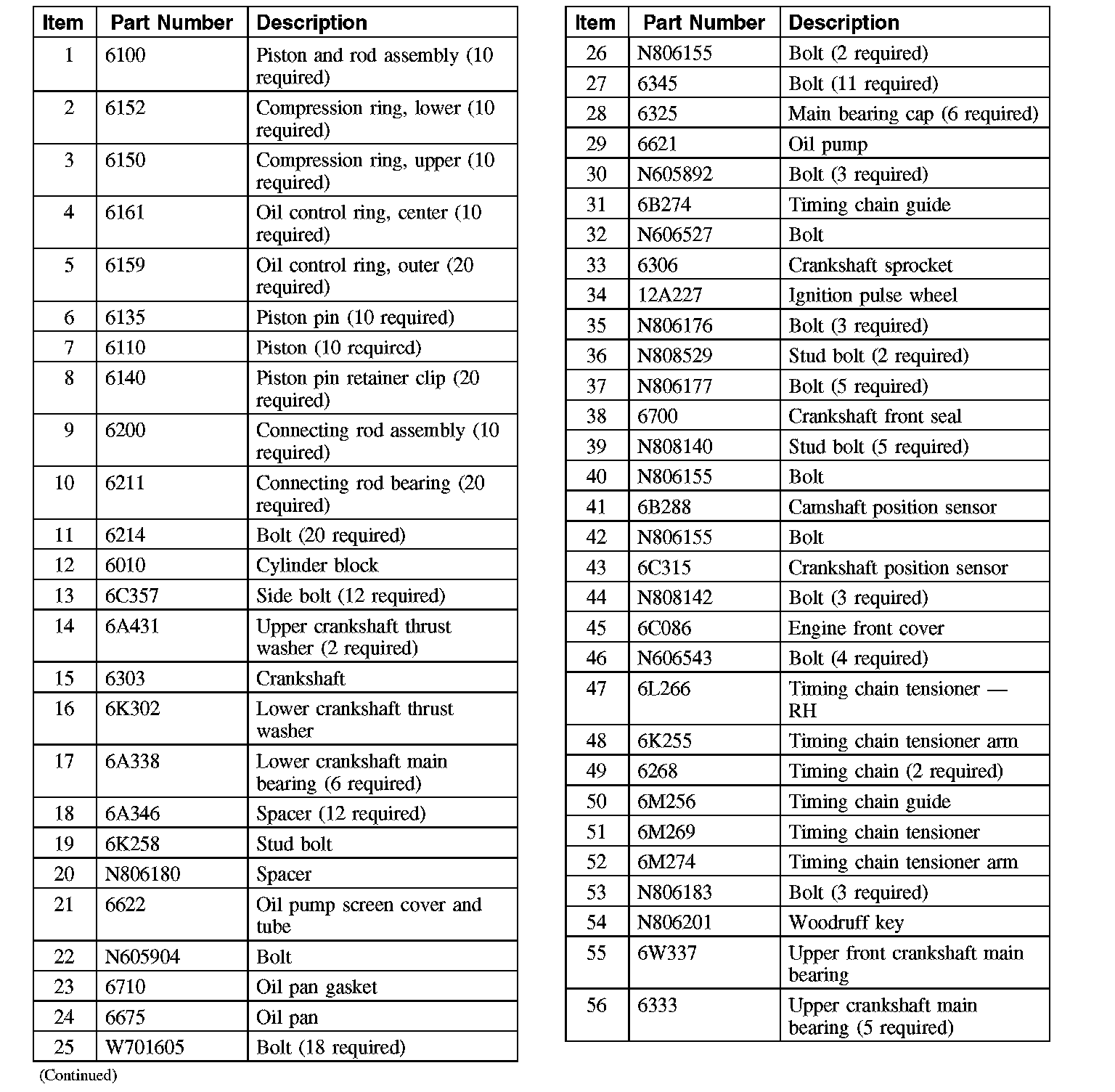

Low End Components (Part 2):

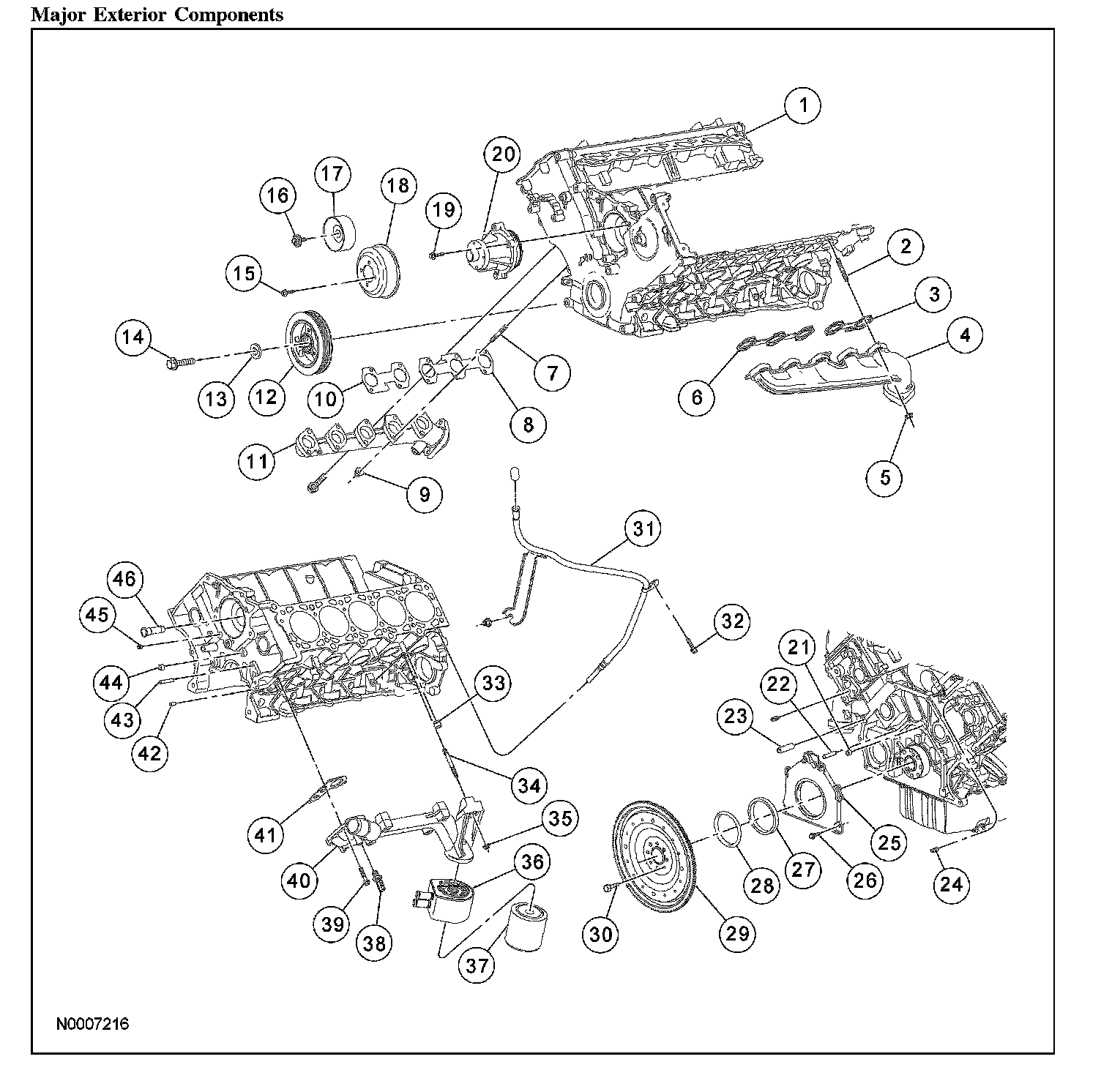

Major Exterior Components (Part 1):

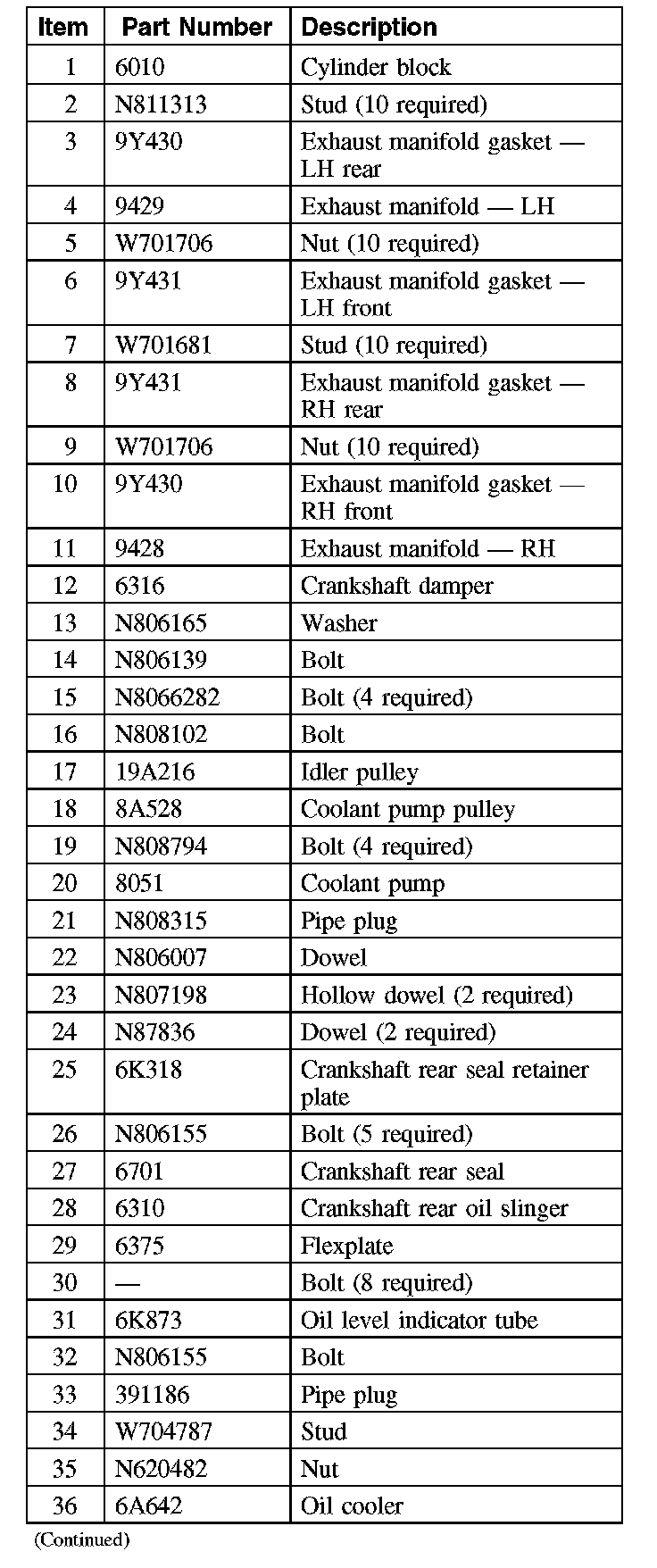

Major Exterior Components (Part 2):

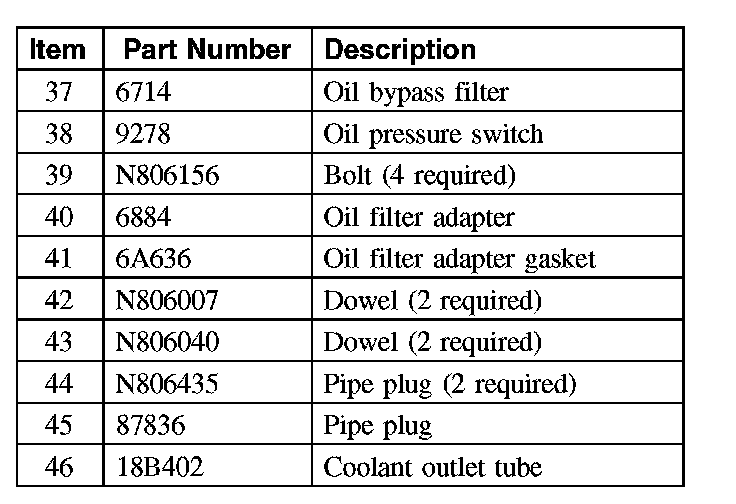

Major Exterior Components (Part 3):
