Home >> Ford >> 2007 >> E 150 V8-5.4L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Locations

Data Link Connector: Locations

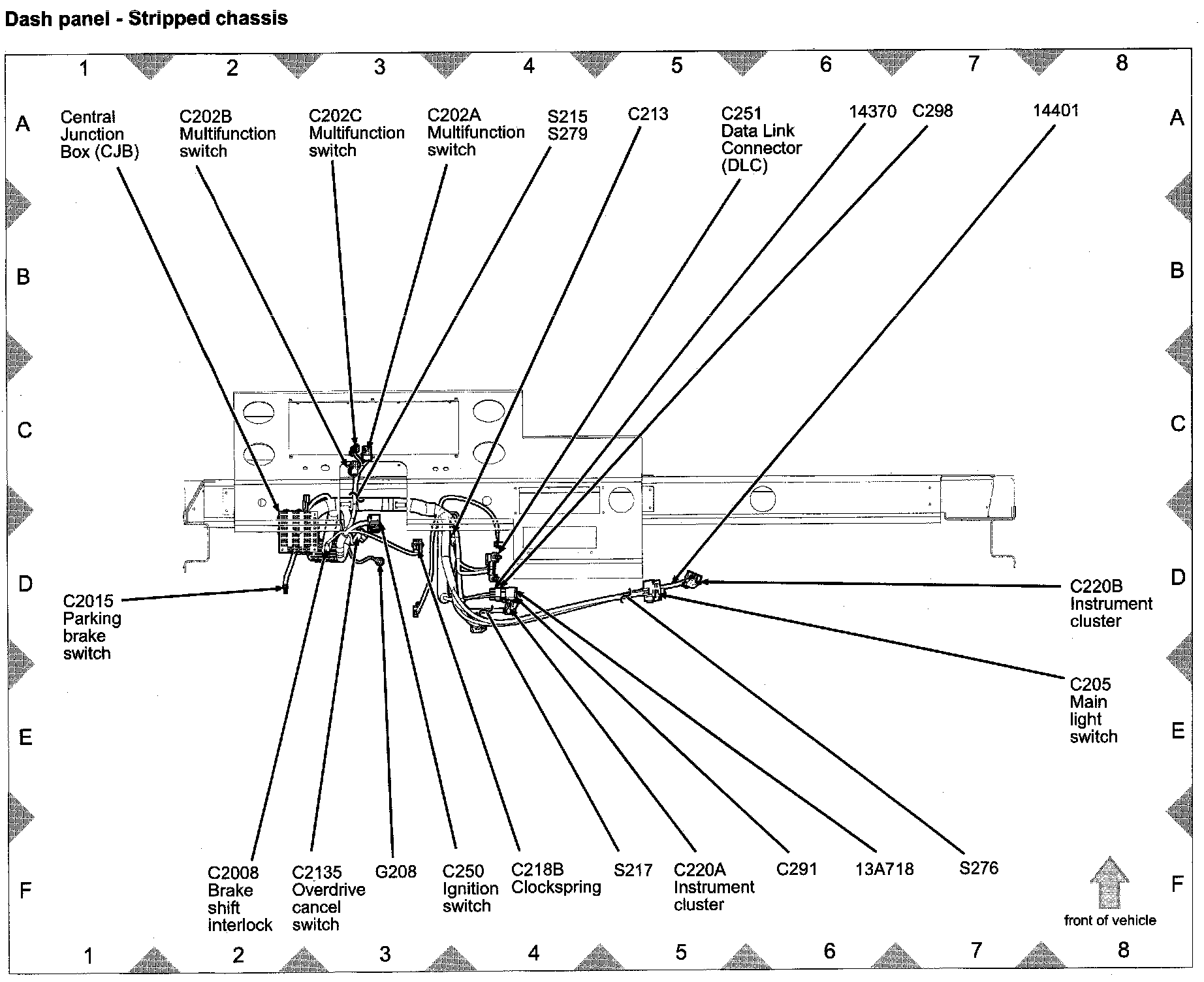

View 151-21 (Dash Panel - Stripped Chassis):

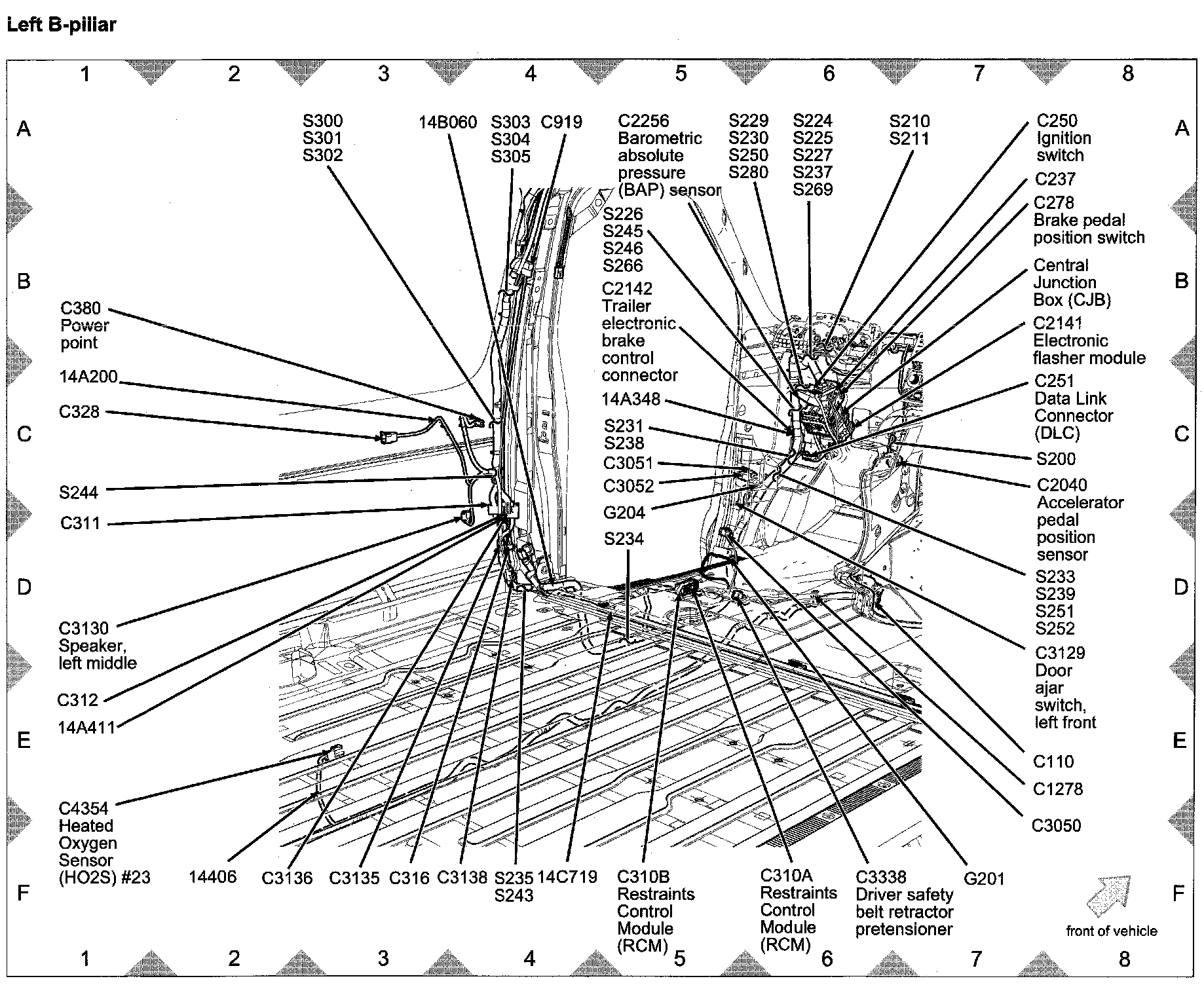

View 151-22 (Left B-Pillar):
