Flex Plate
Flexplate or Flywheel and Crankshaft Rear Seal - Exploded View
4.6L (2V) Engine:

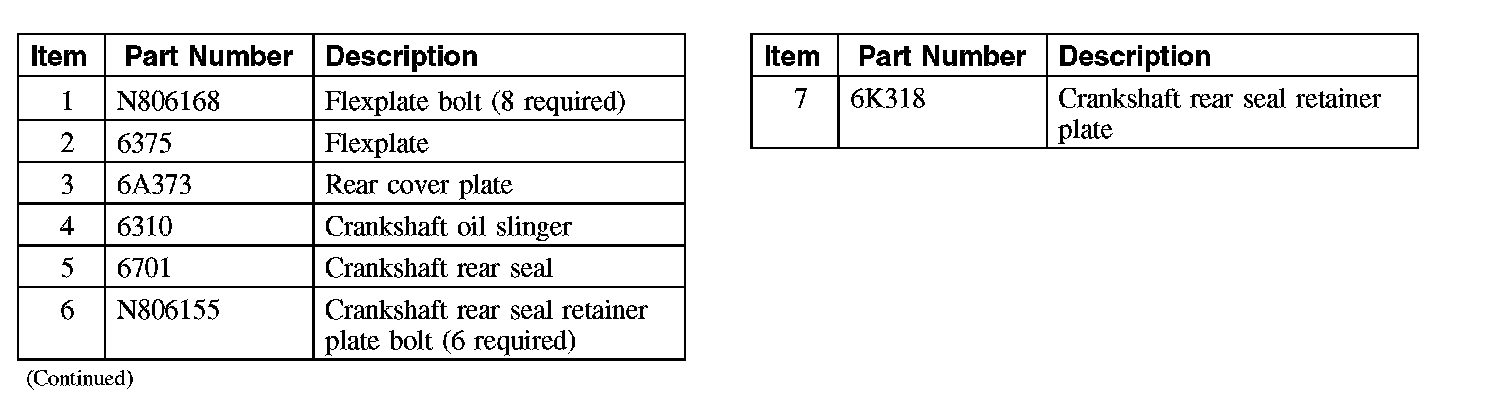

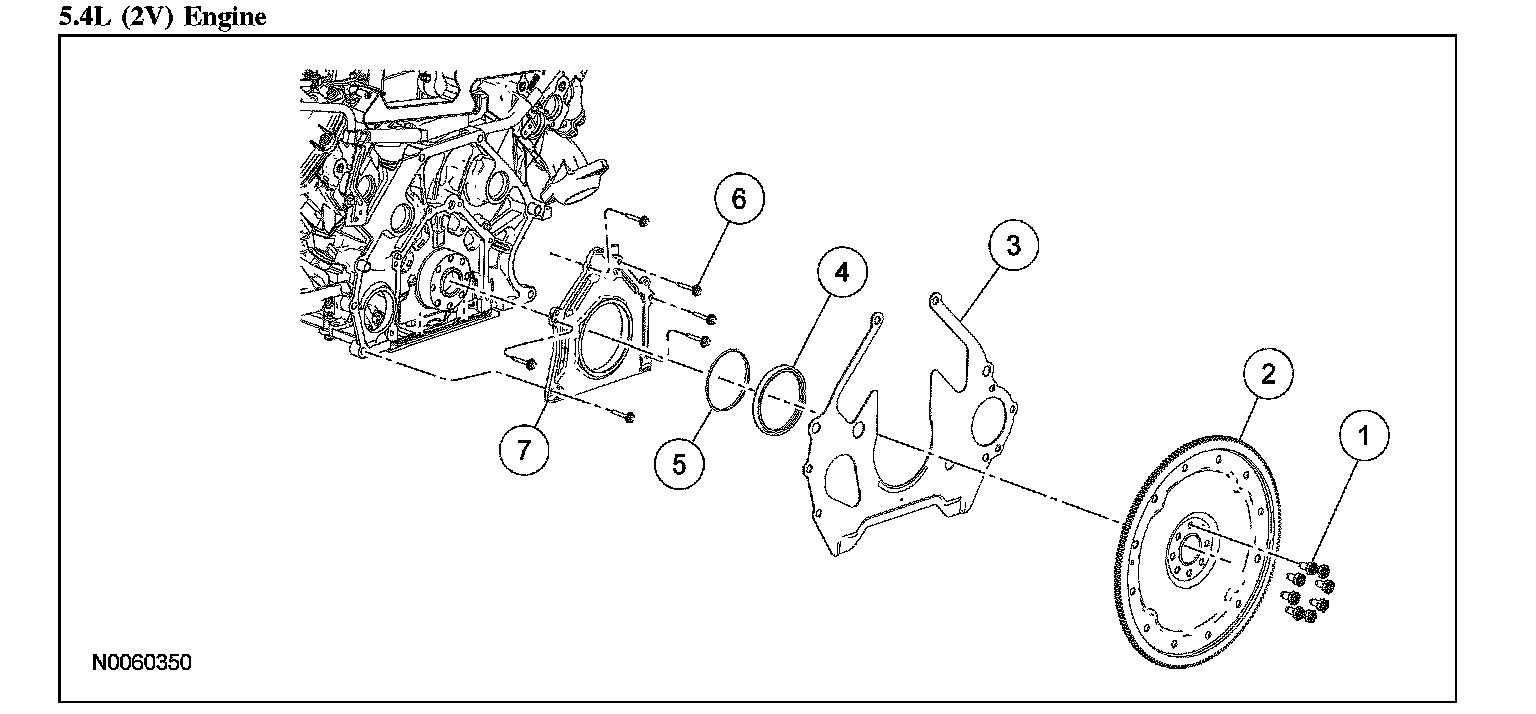

5.4L (2V) Engine (Part 1):
5.4L (2V) Engine (Part 2):
