Home >> Ford >> 2007 >> E 150 V8-5.4L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Engine Lubrication

Engine Lubrication

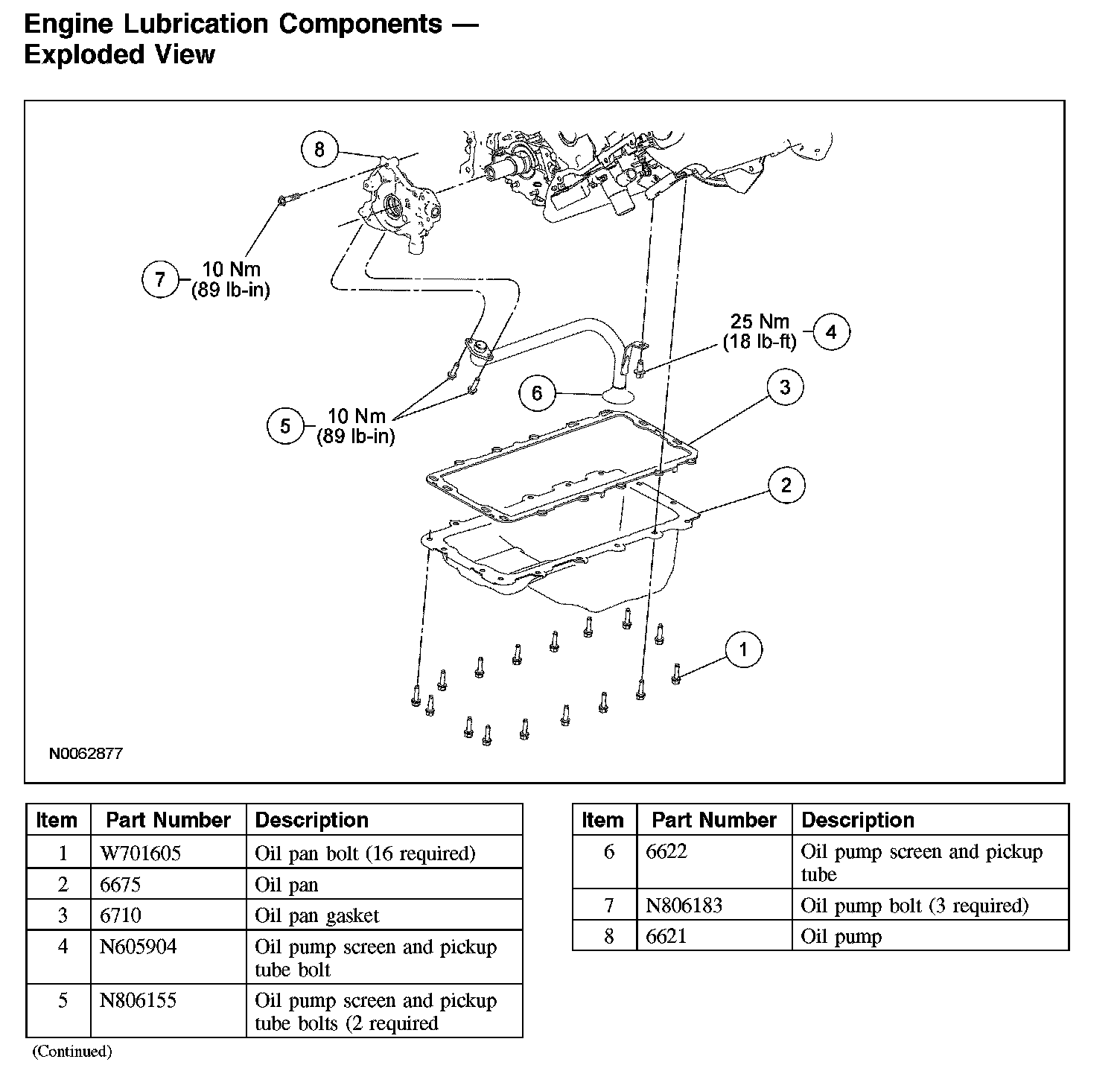

Engine Lubrication Components - Exploded View

Engine Lubrication Components - Exploded View:
