Disc Brake System

Disc Brake System - Exploded View

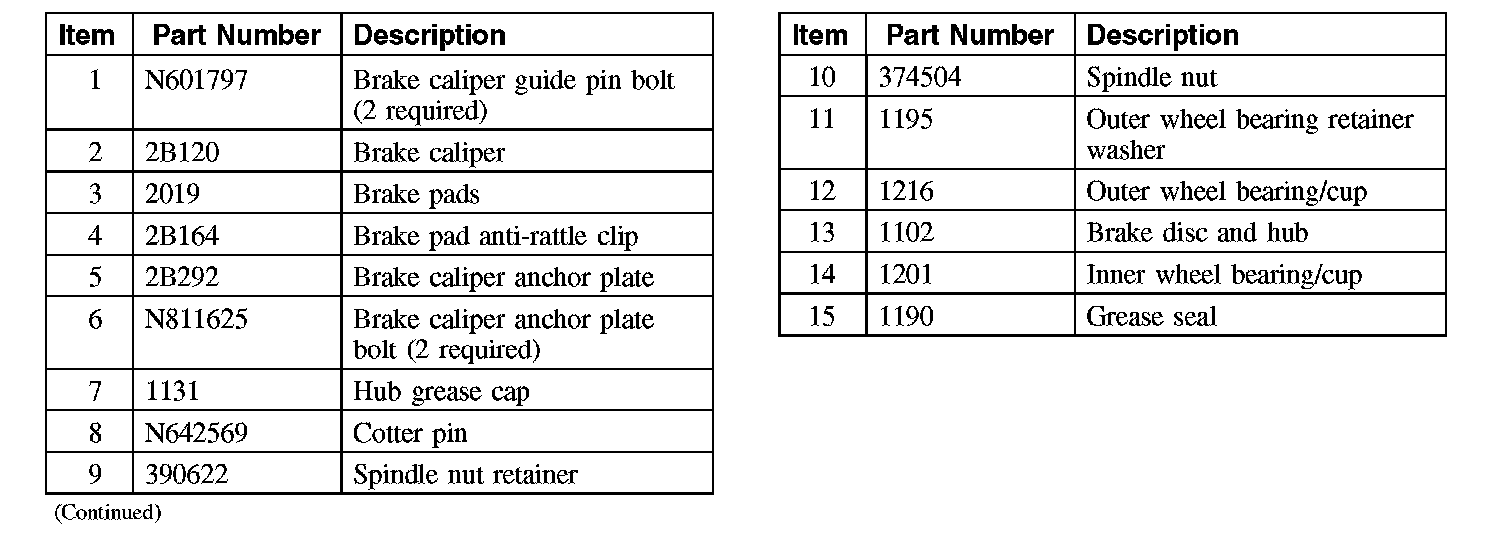

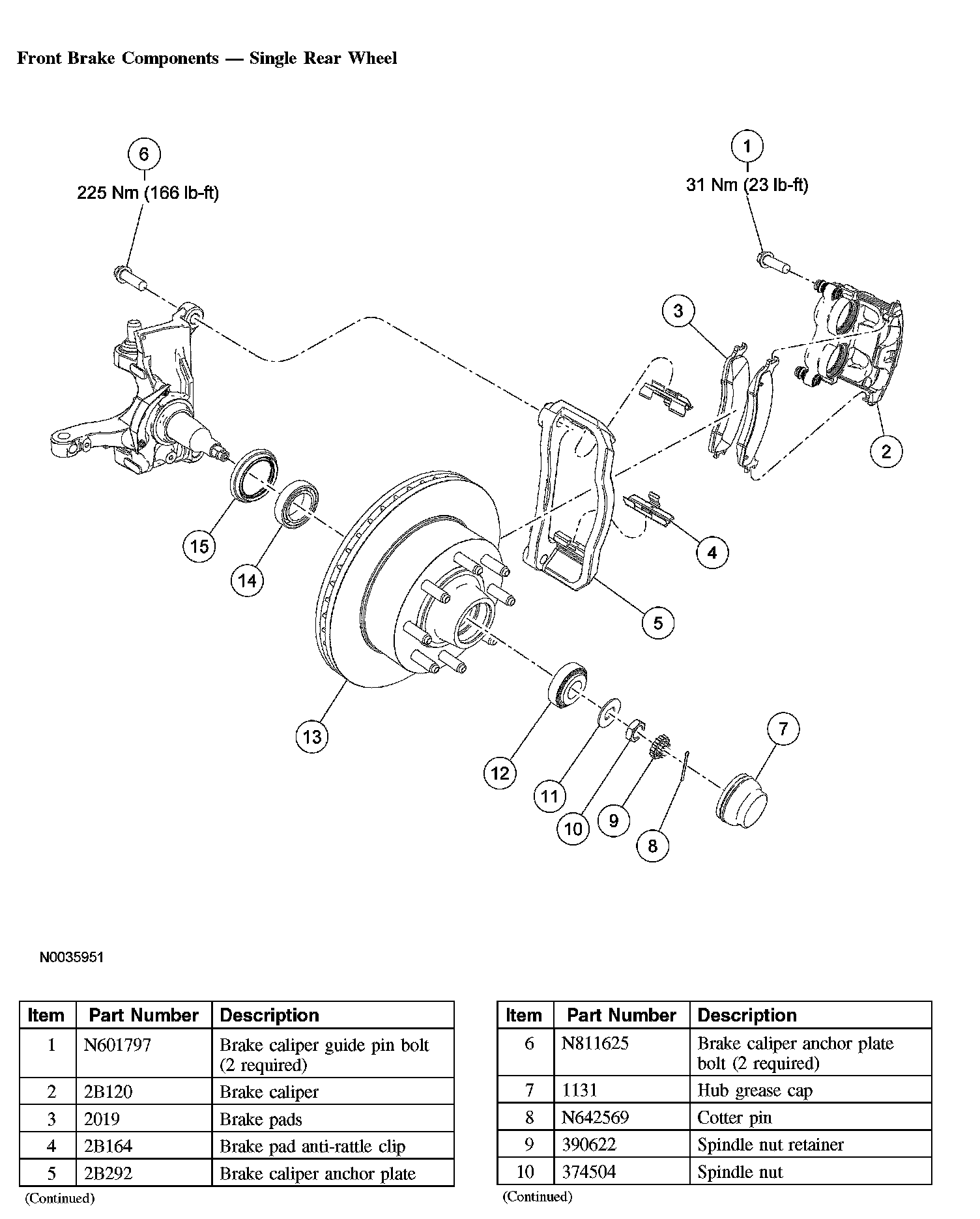

Front Brake Components - Single Rear Wheel (Part 1):

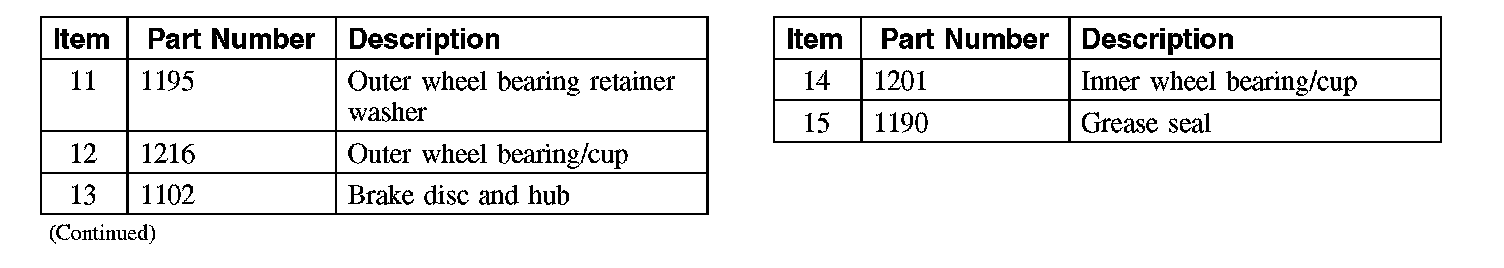

Front Brake Components - Single Rear Wheel (Part 2):

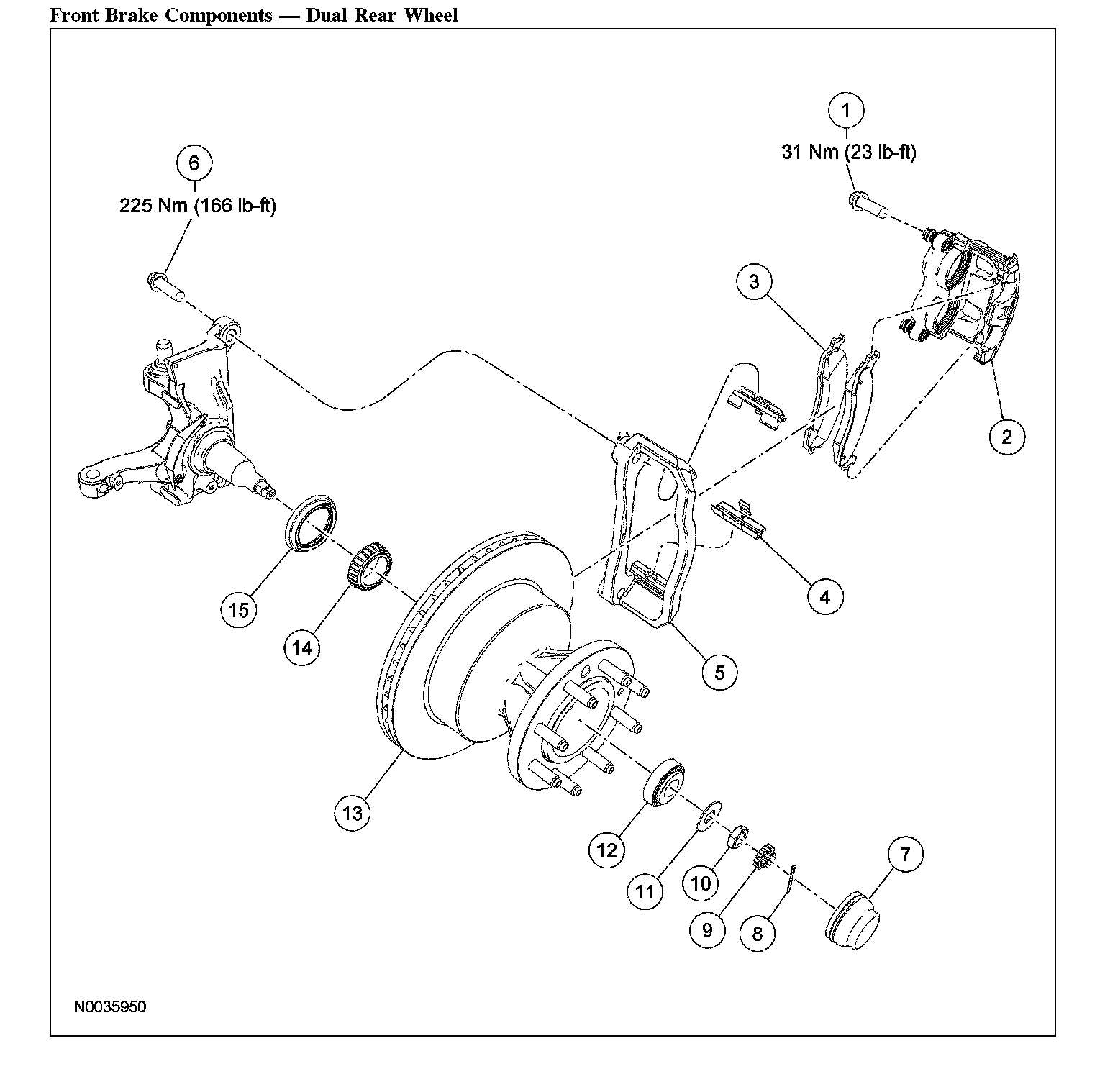

Front Brake Components - Dual Rear Wheel (Part 1):




Front Brake Components - Dual Rear Wheel (Part 2):
