Home >> Ford >> 2007 >> E 150 V8-5.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

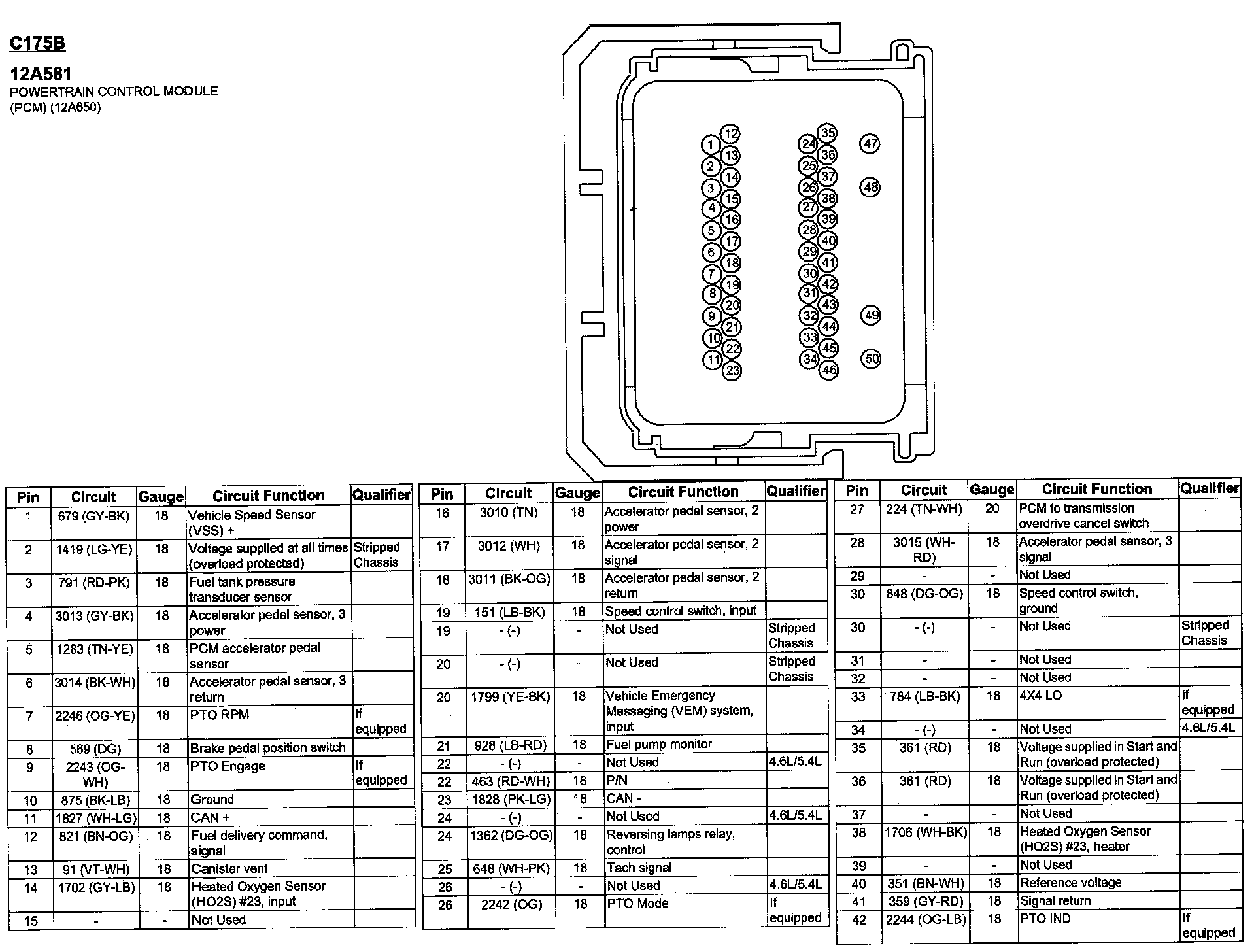

C175B (Part 1):

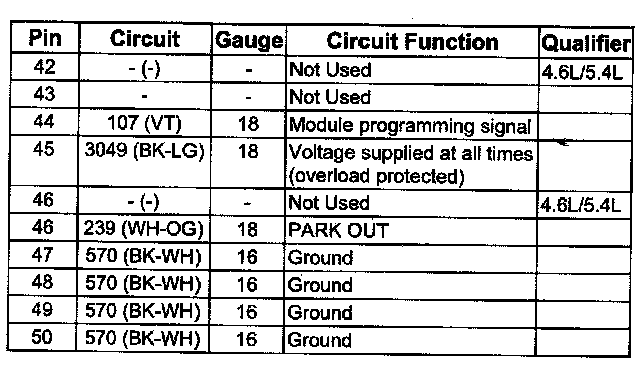

C175B (Part 2):

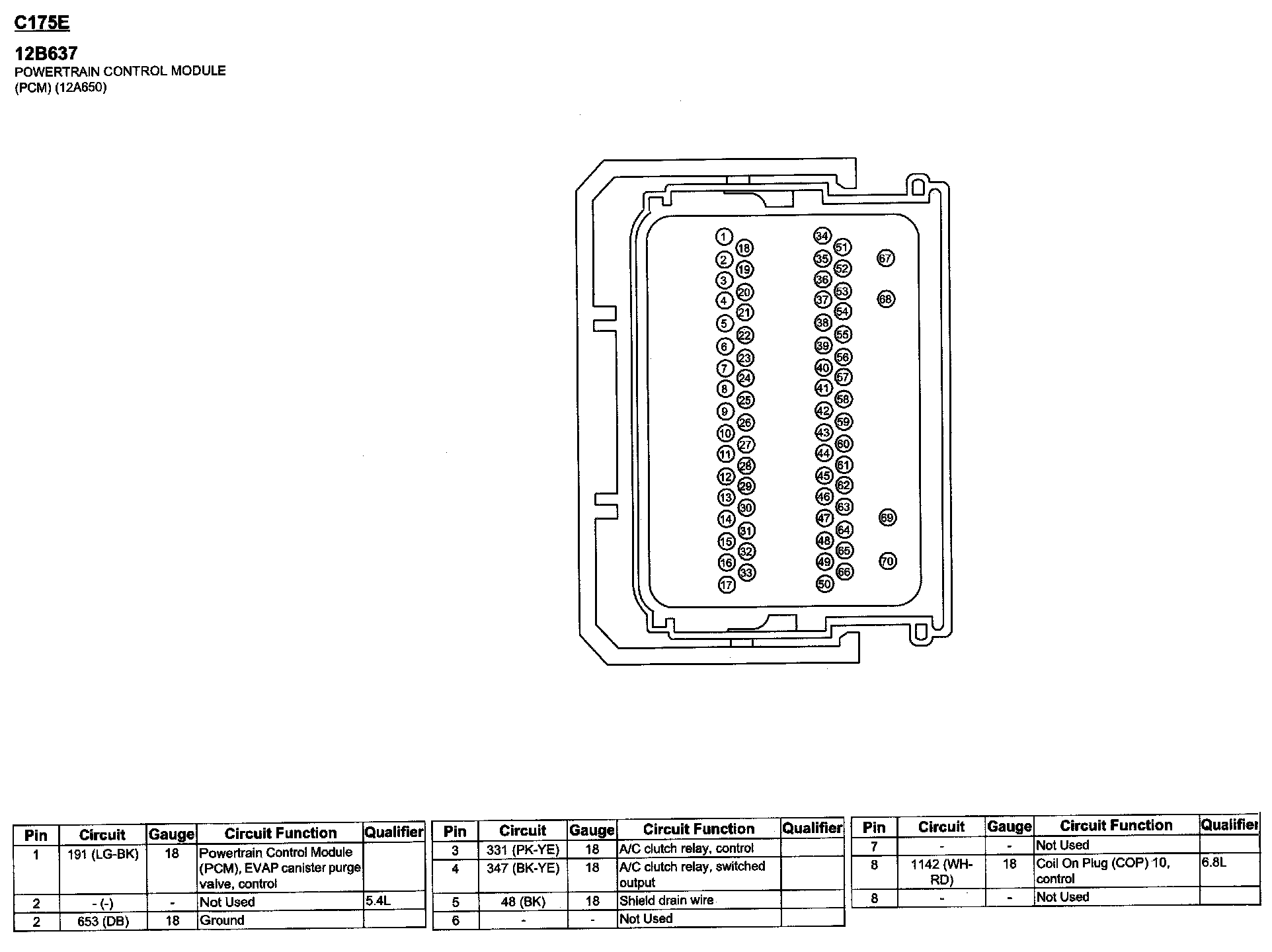

C175E (Part 1):

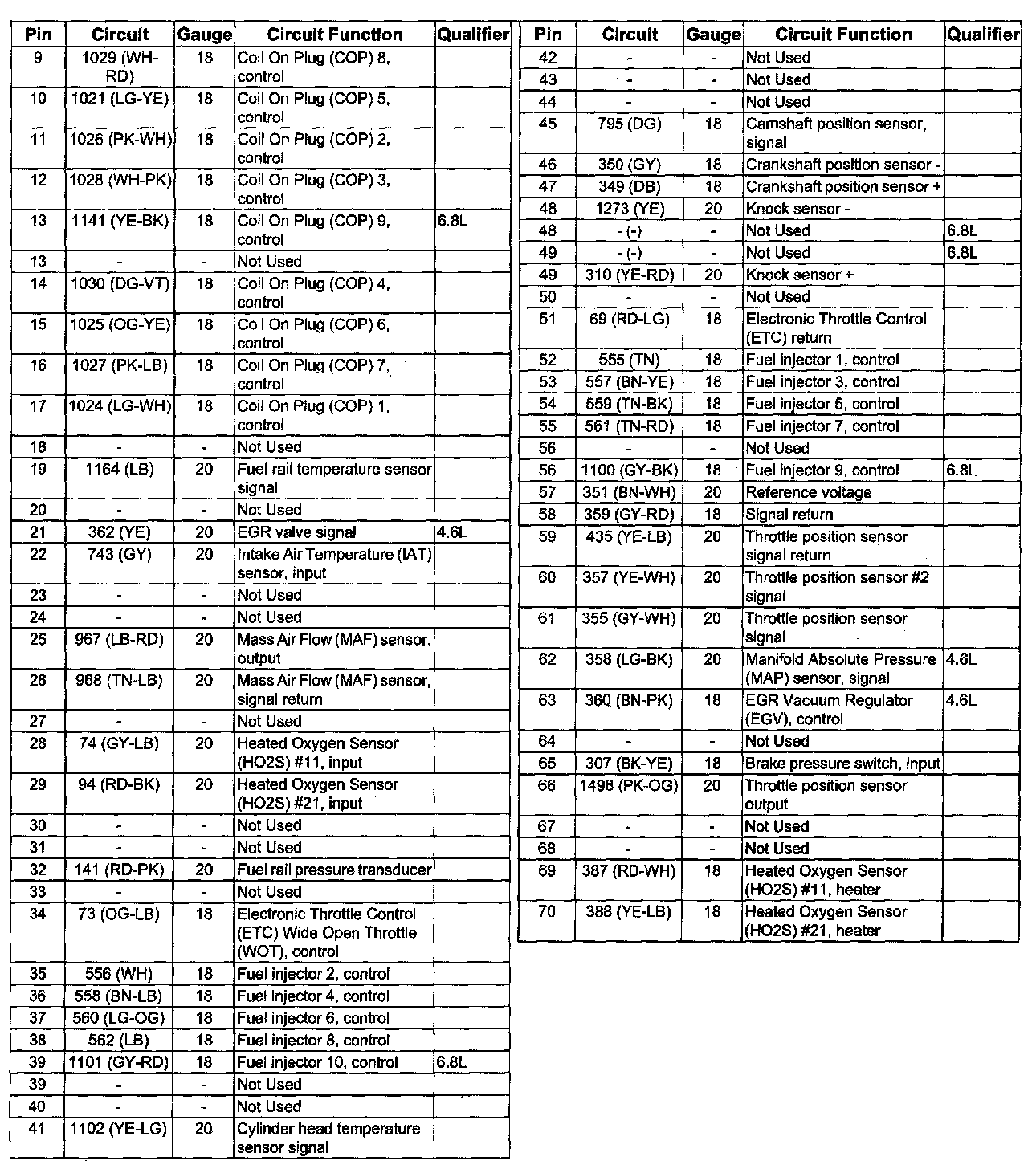

C175E (Part 2):

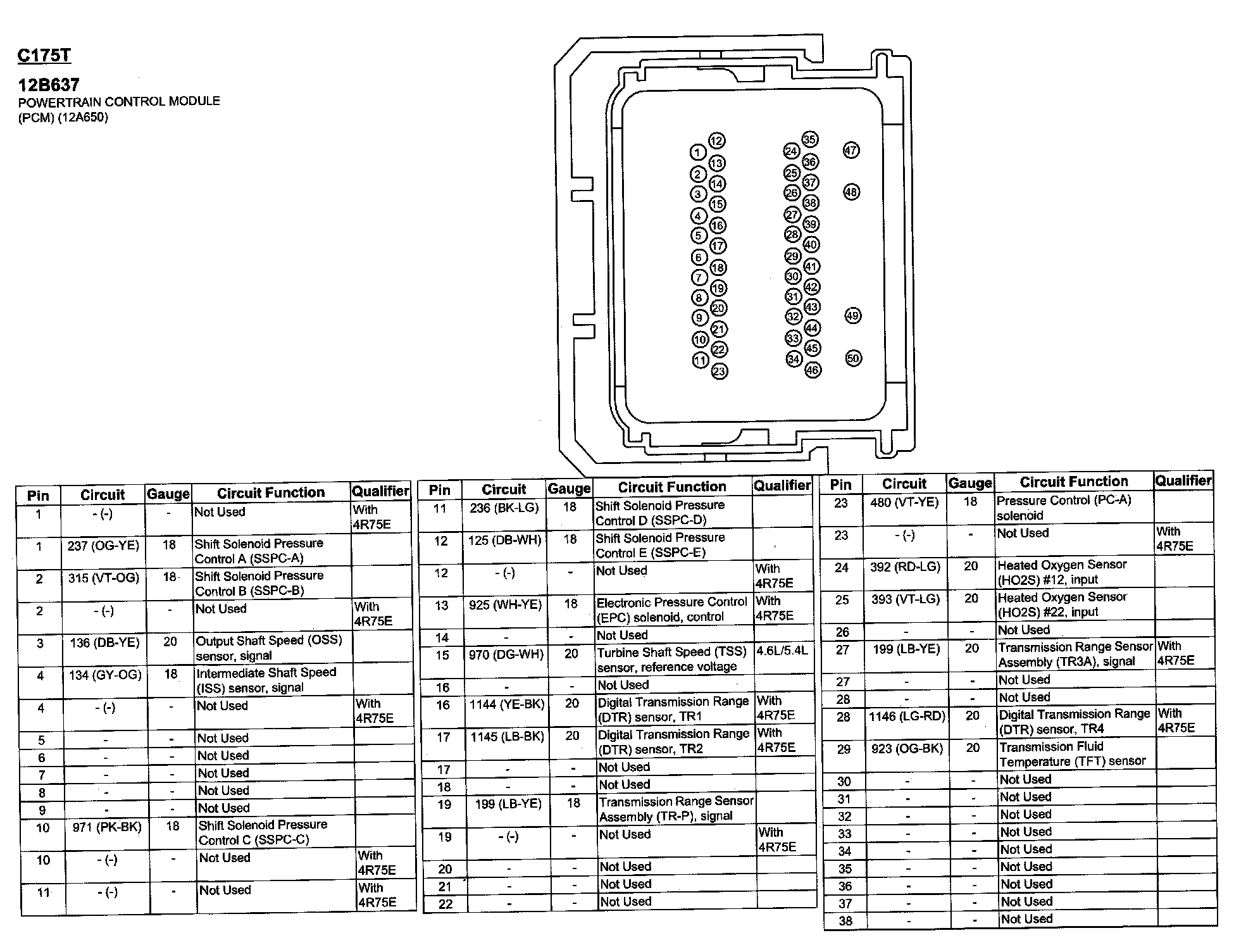

C175T (Part 1):

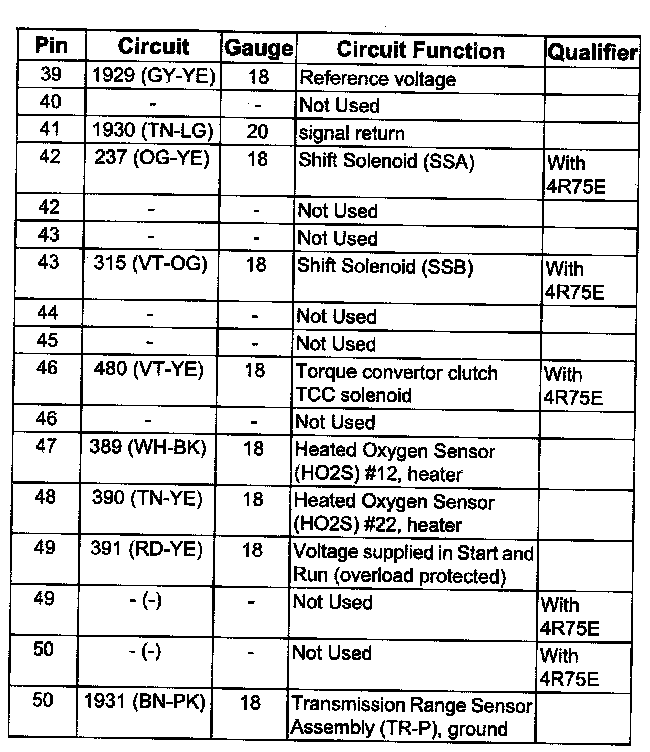

C175T (Part 2):

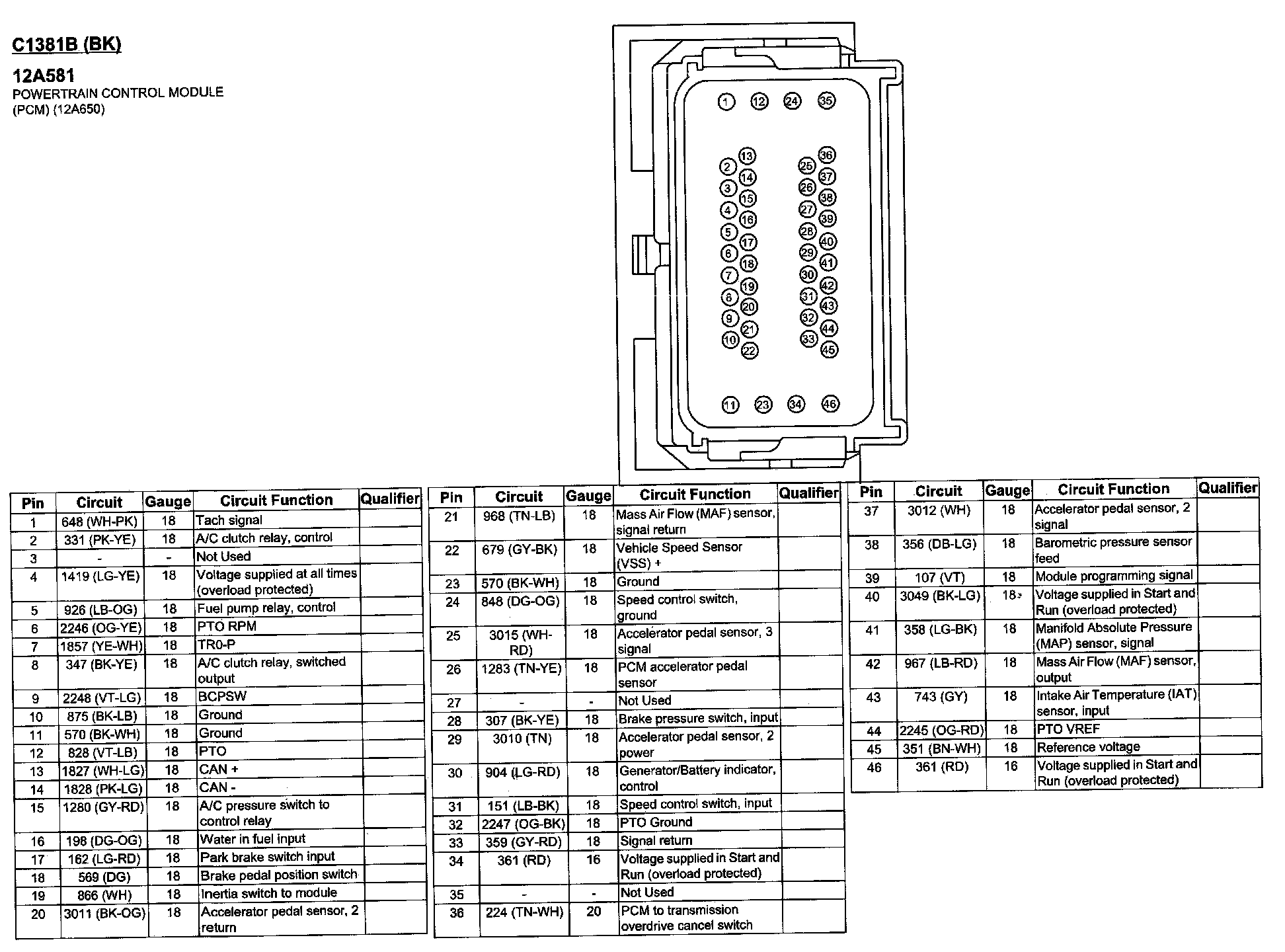

C1381B:

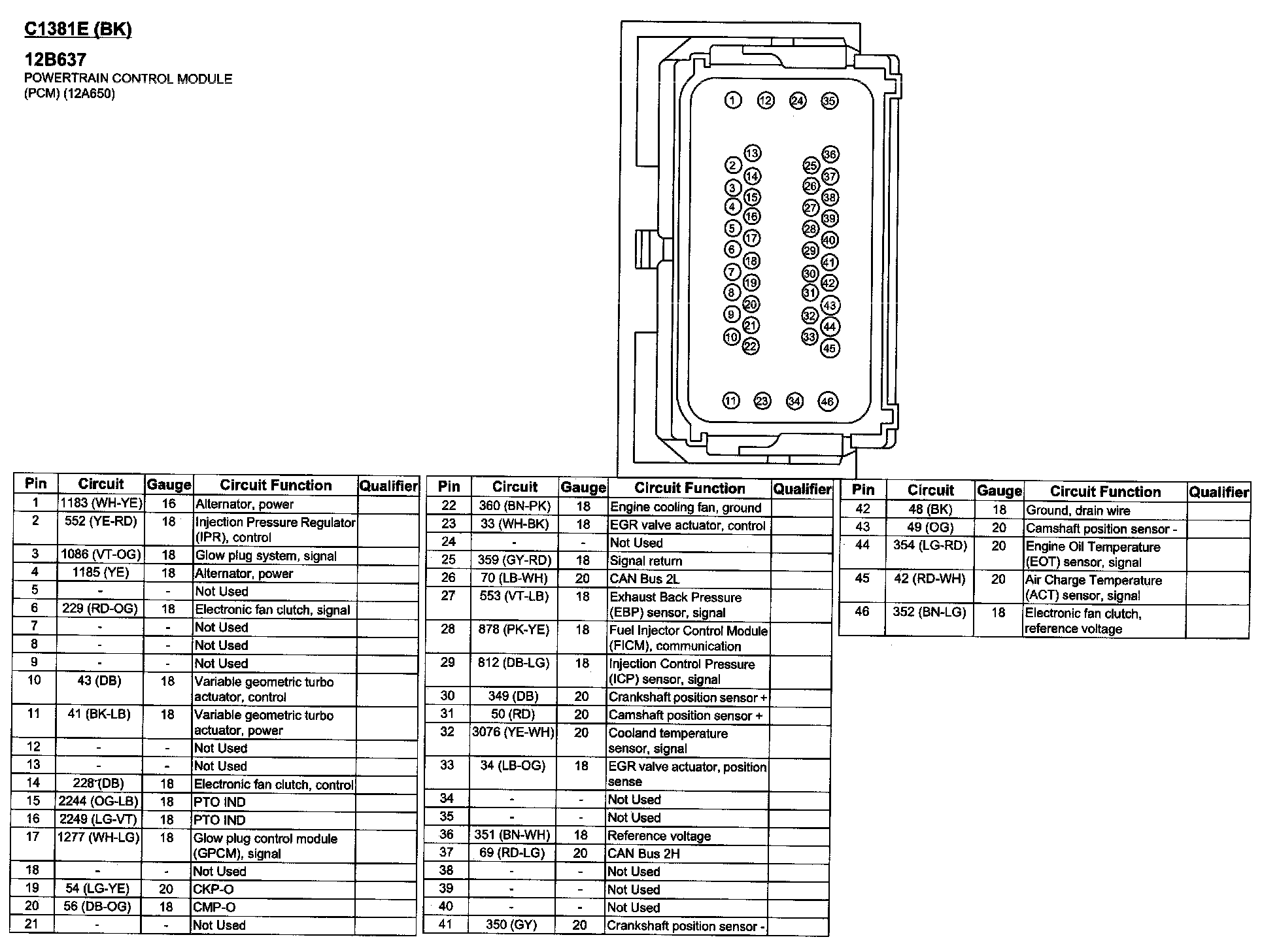

C1381E:

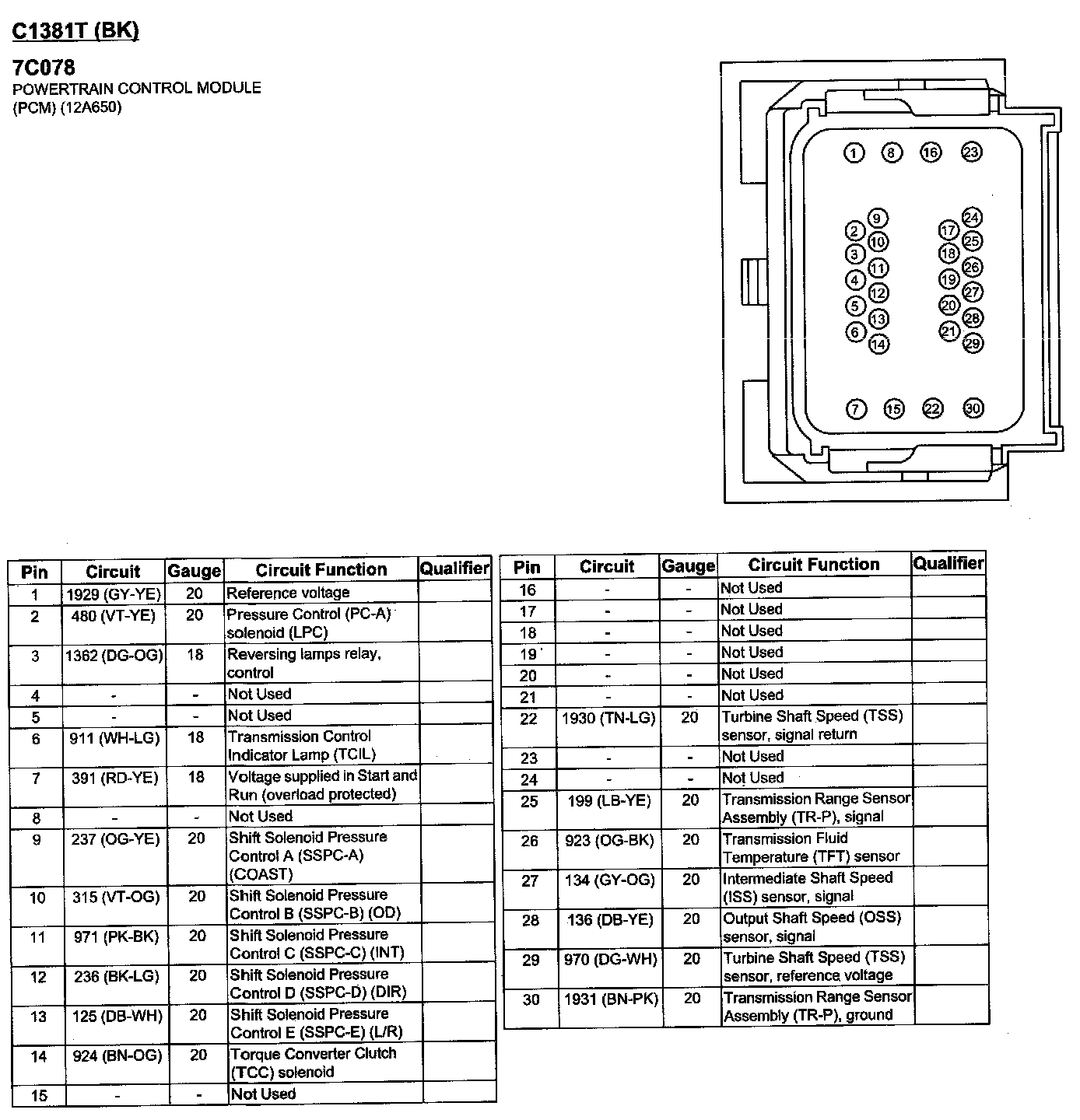

C1381T:
