Timing Components

Valve Train Components - Exploded View

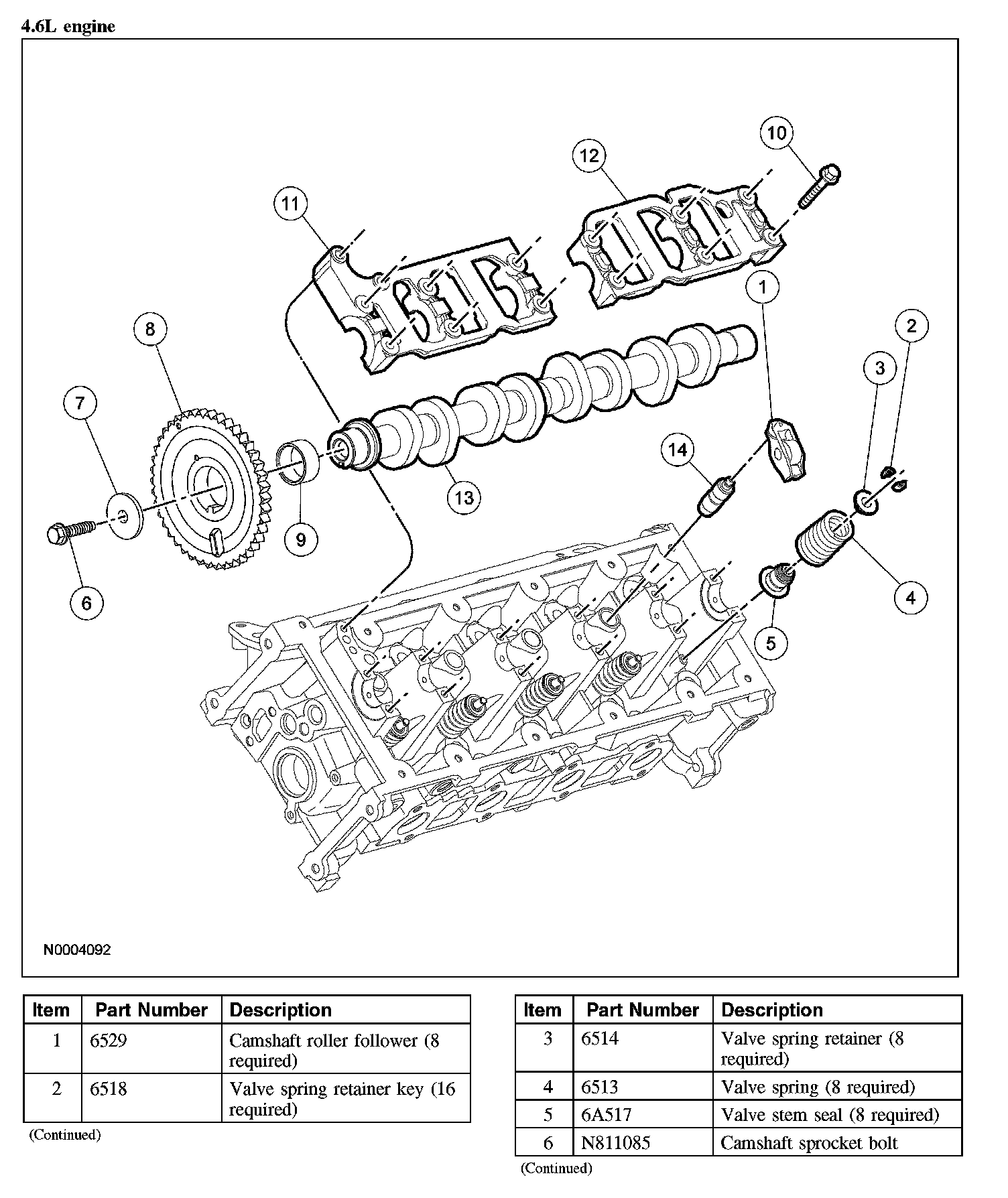

4.6L engine (Part 1):

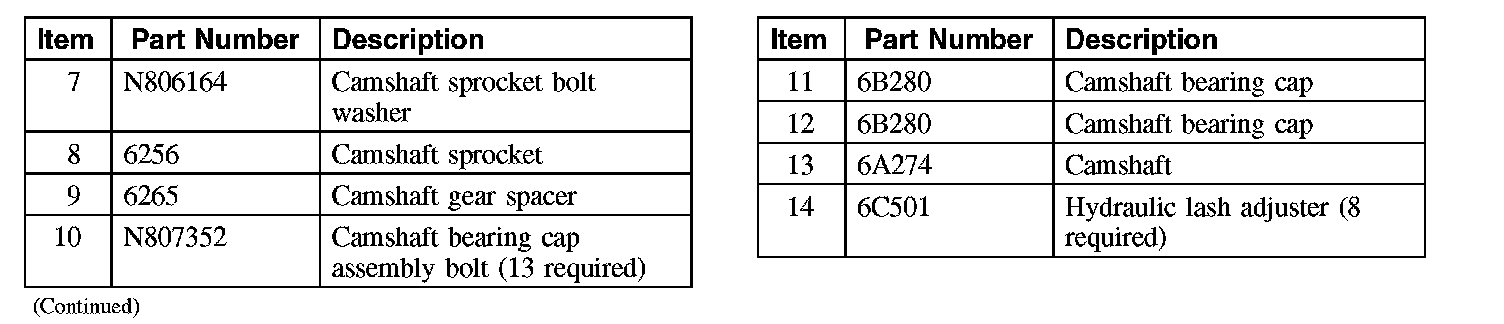

4.6L engine (Part 2):

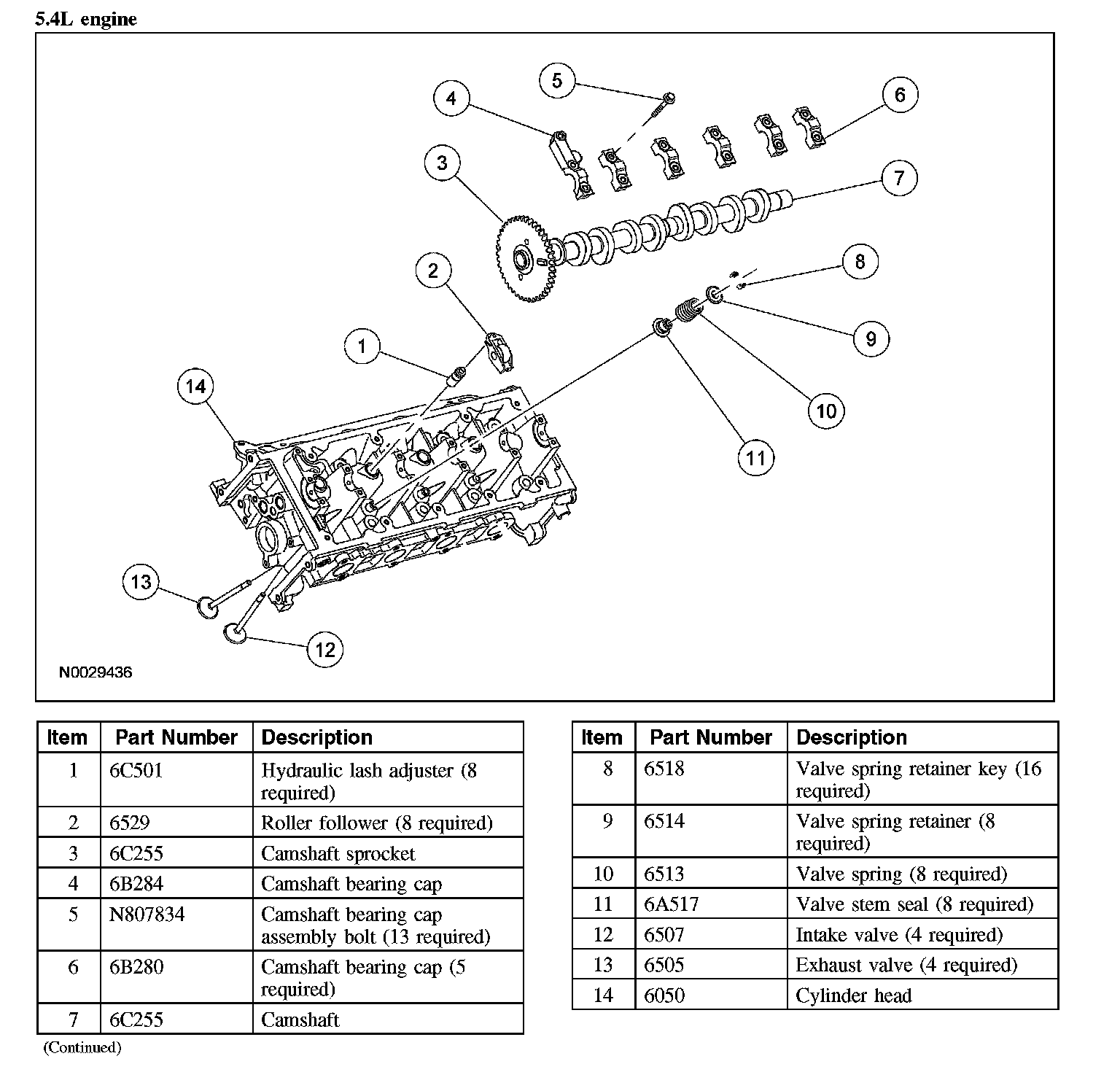

5.4L engine:
