System Diagram

Engine - Lower End

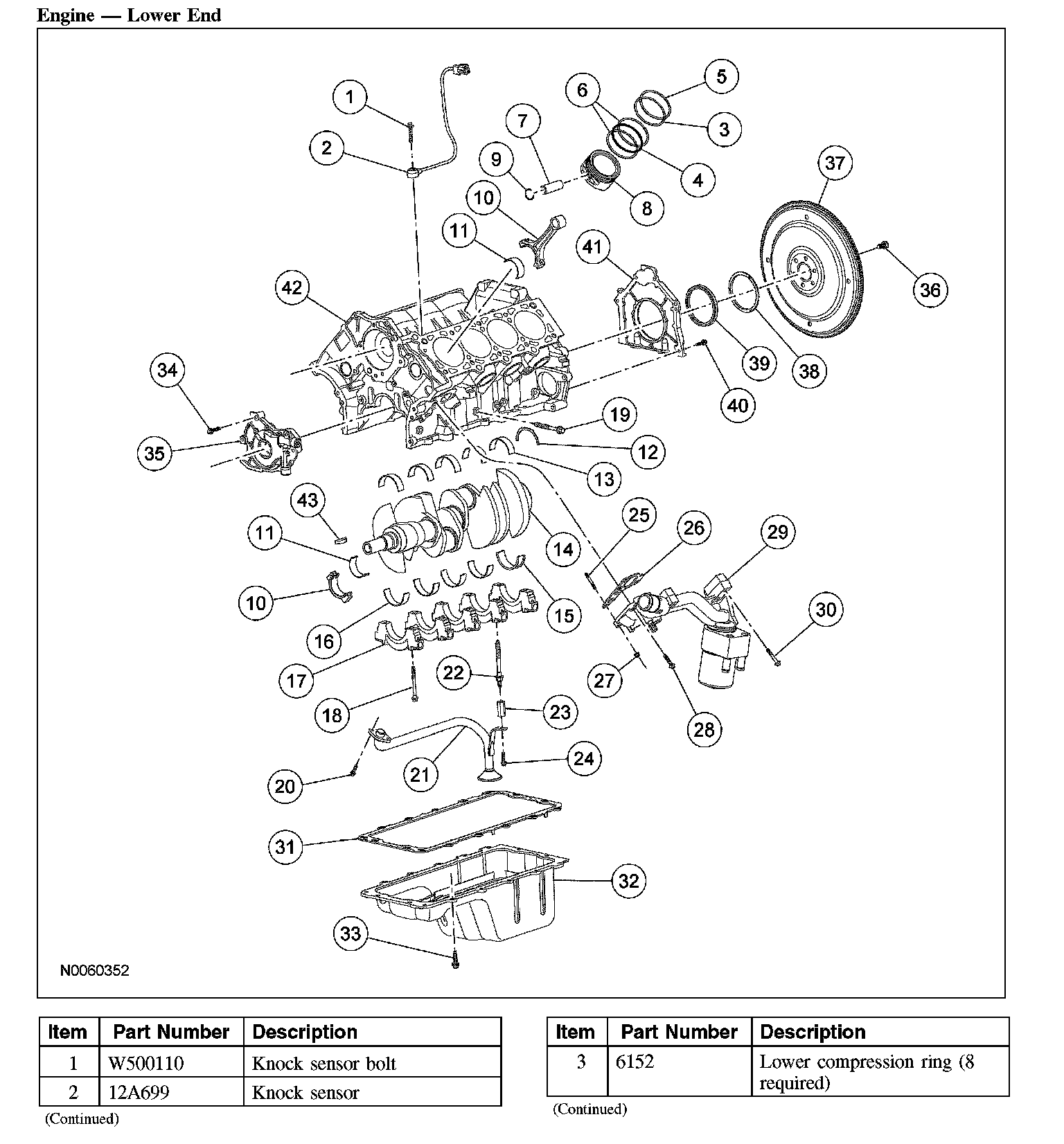

Engine - Lower End (Part 1):

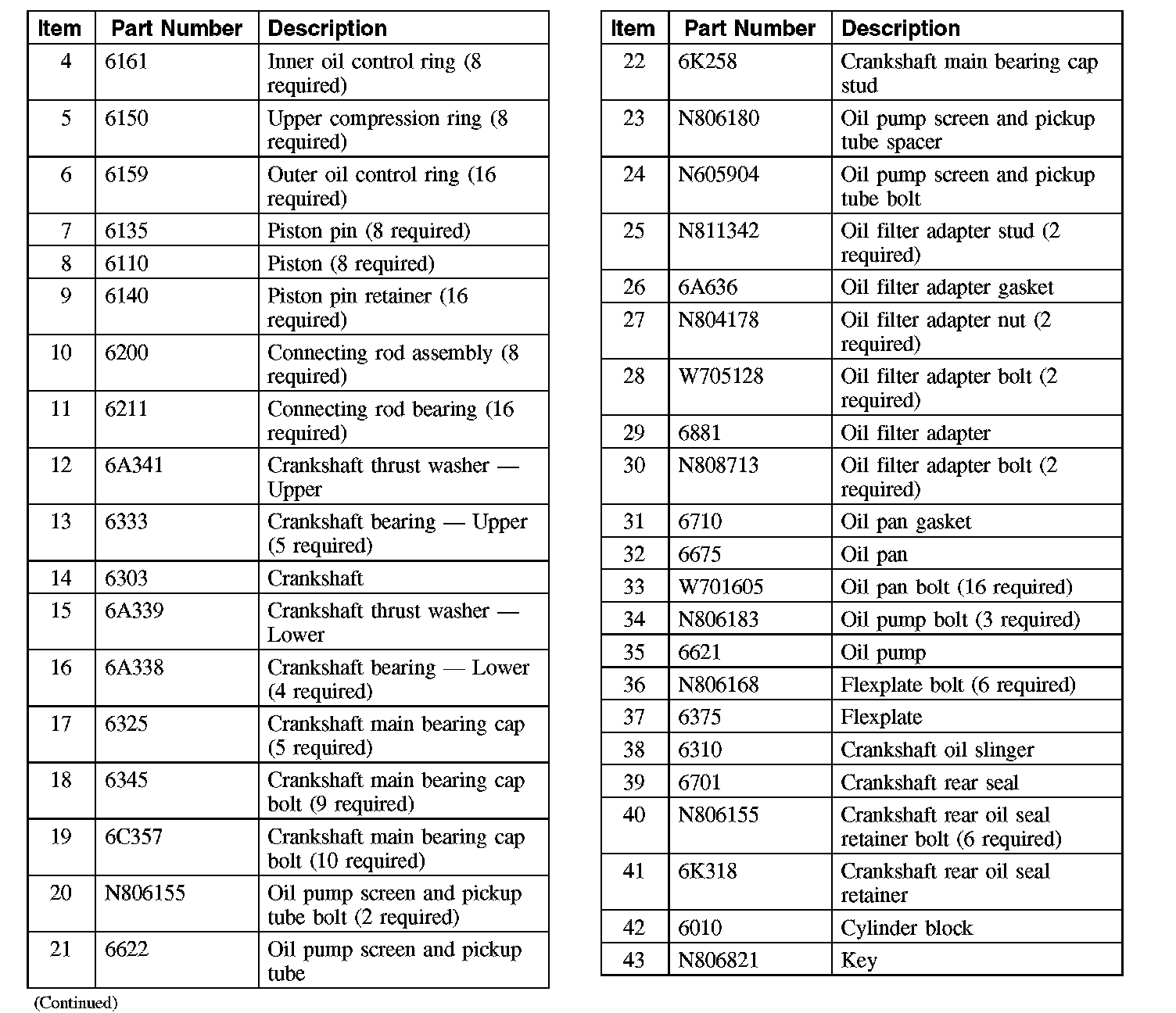

Engine - Lower End (Part 2):

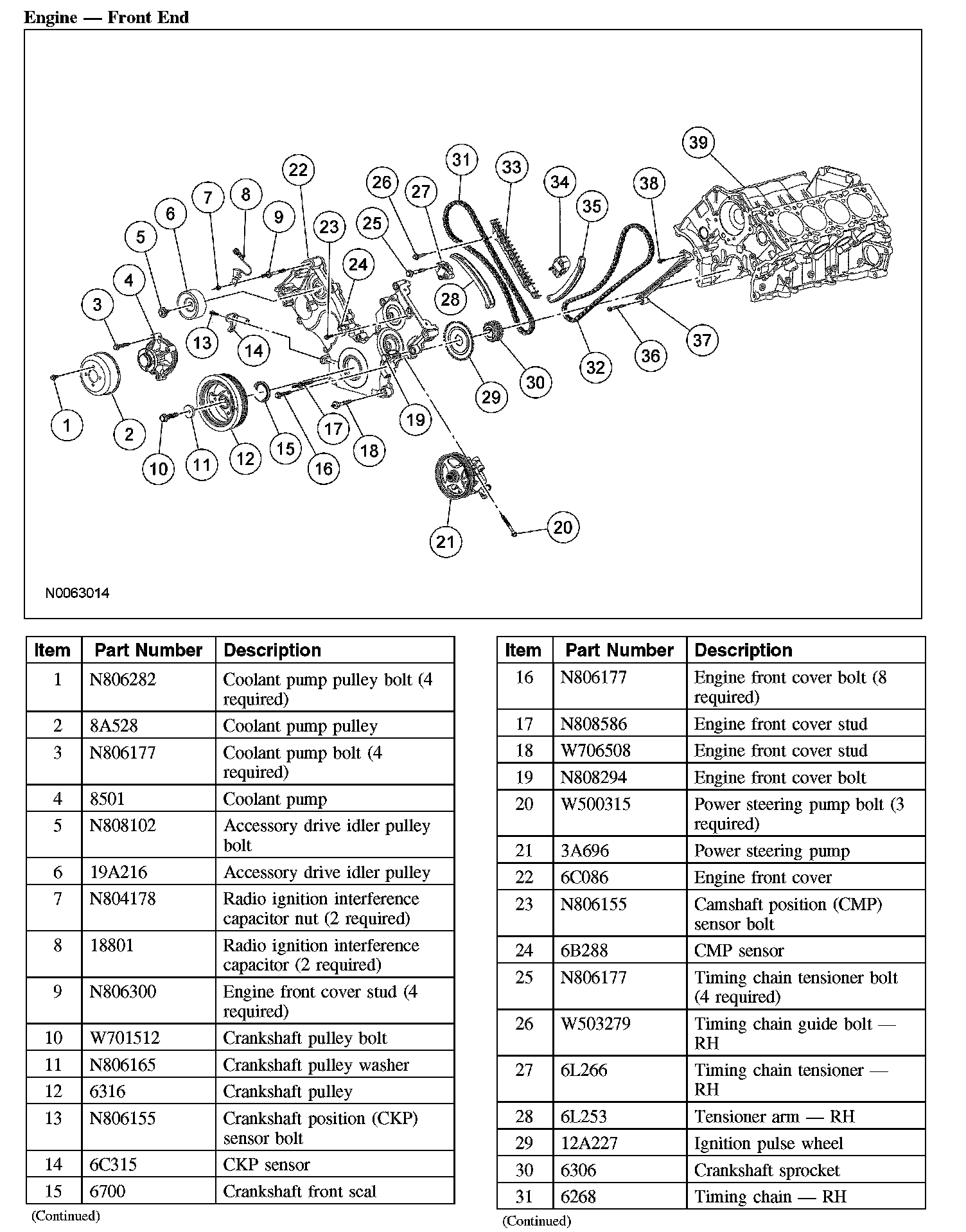

Engine - Front End (Part 1):

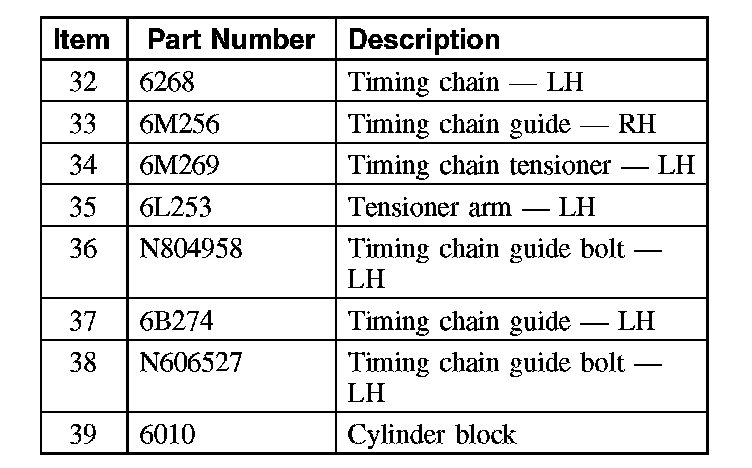

Engine - Front End (Part 2):
