Exhaust System
Exhaust System
Exhaust System
- Exploded View

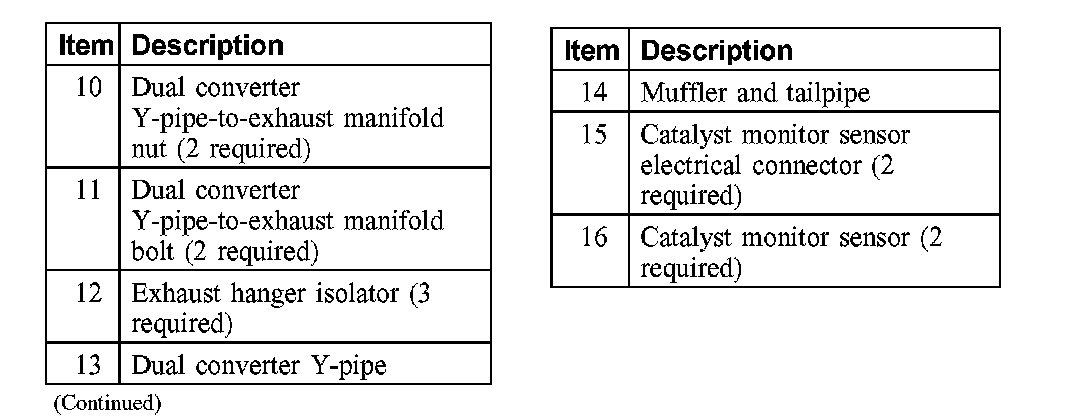

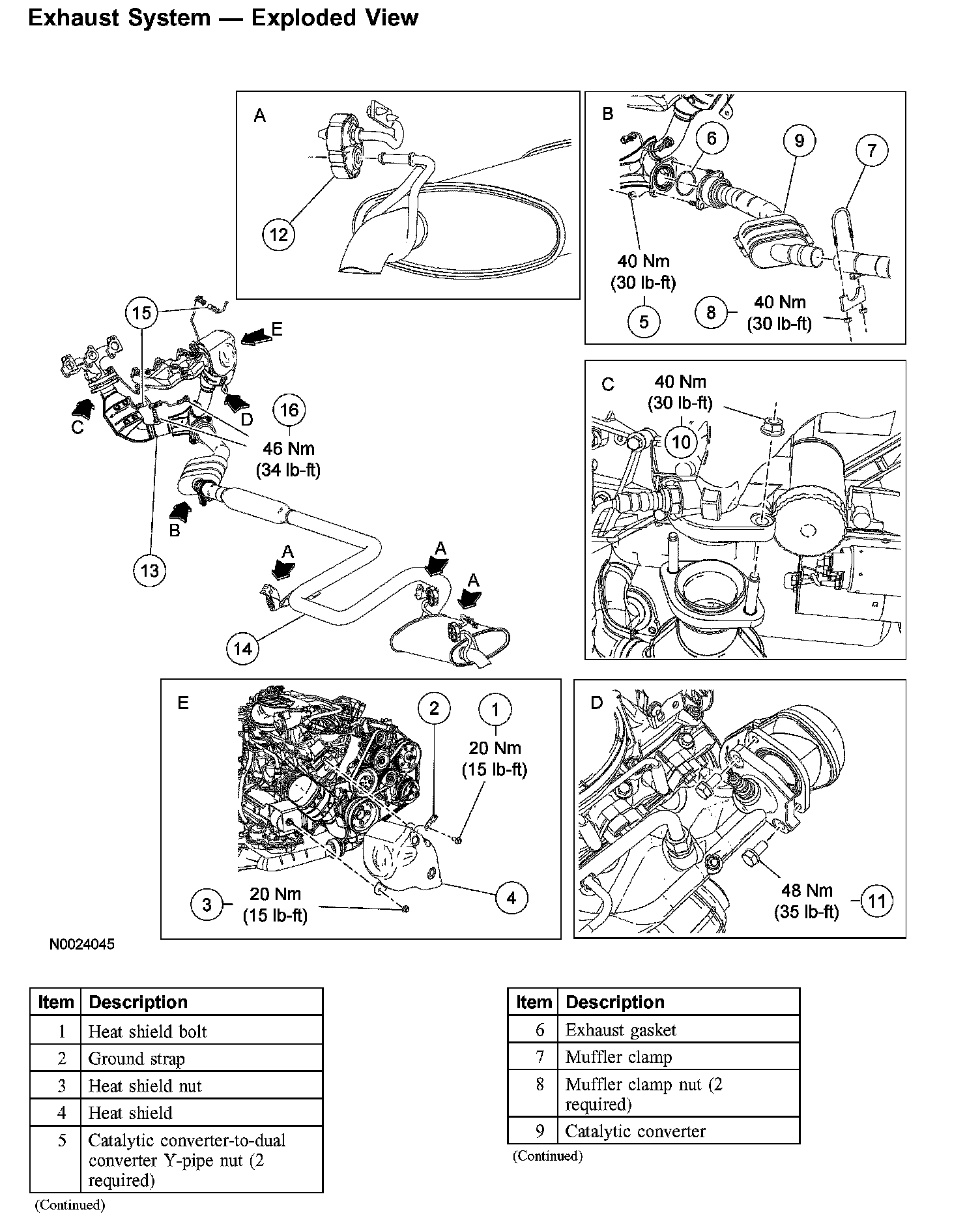

Exhaust System - Exploded View:
Exhaust System - Exploded View:
