Drive Belt

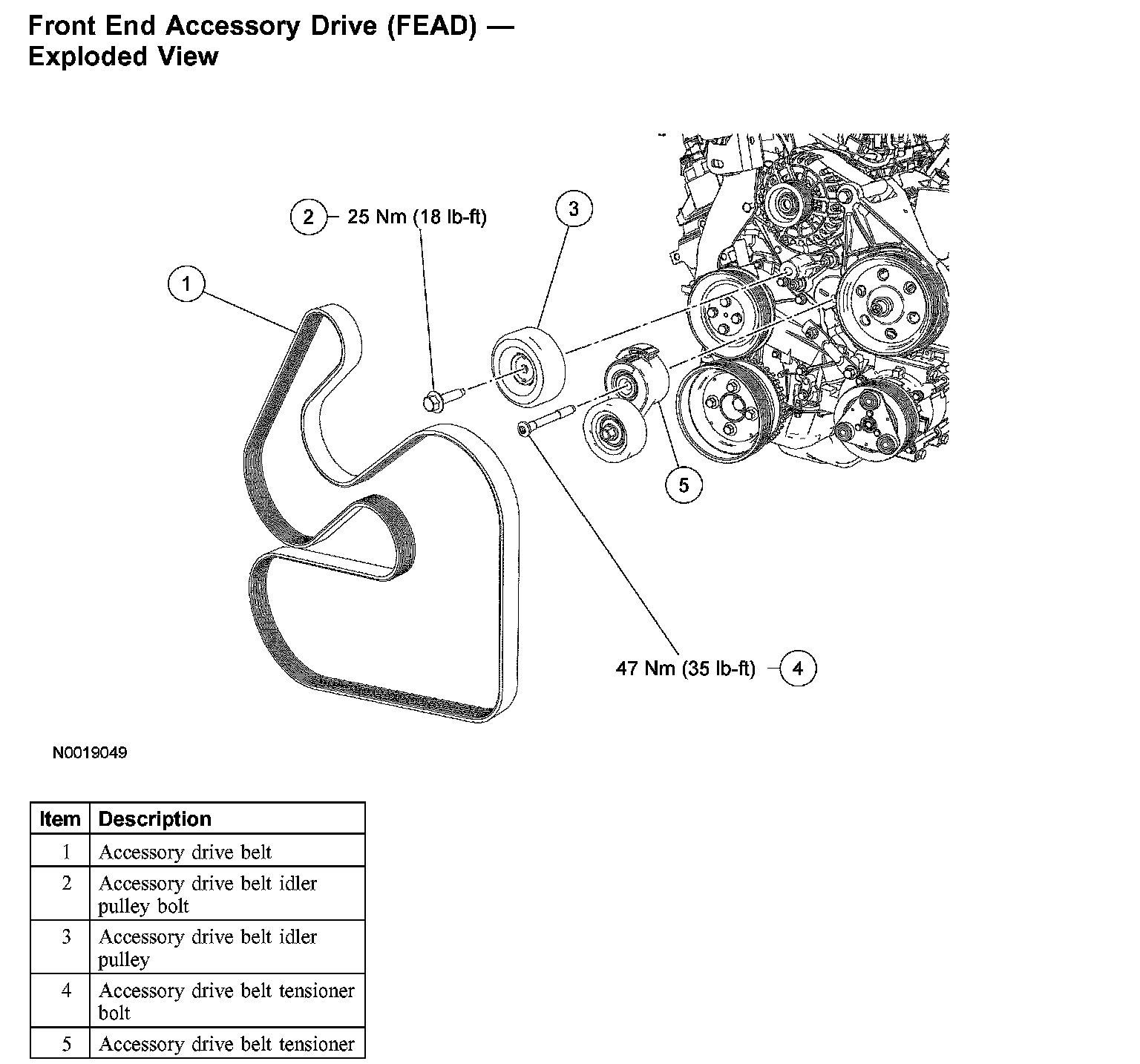

Front End Accessory Drive (FEAD) Exploded View

Front End Accessory Drive (FEAD) Exploded View:
