Home >> Ford >> 2006 >> Fusion V6-3.0L VIN 1 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Locations

Engine Control Module: Locations

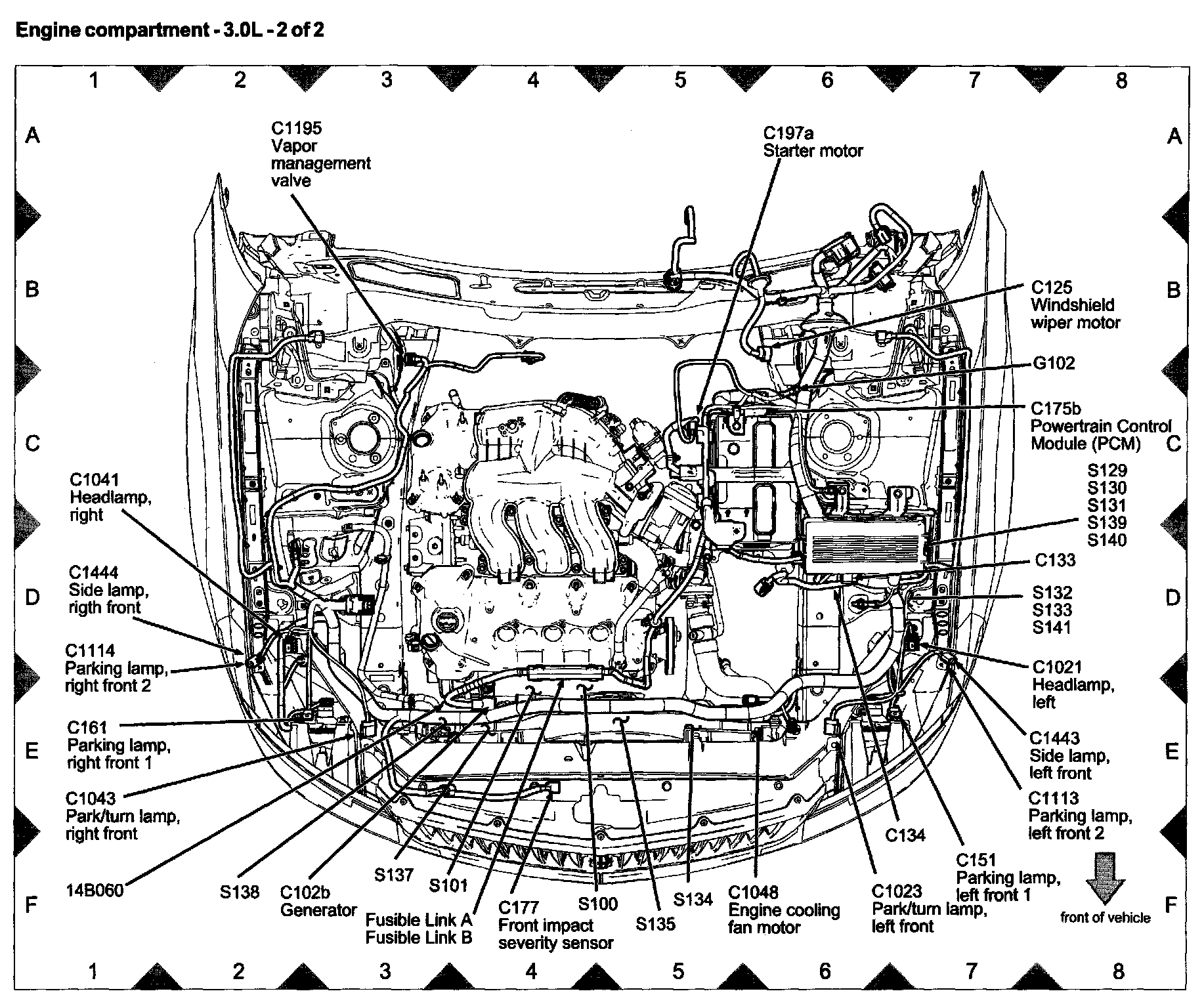

View 151-4 (Engine Compartment (2 Of 2)):
