Exhaust System

Exhaust System - Exploded View

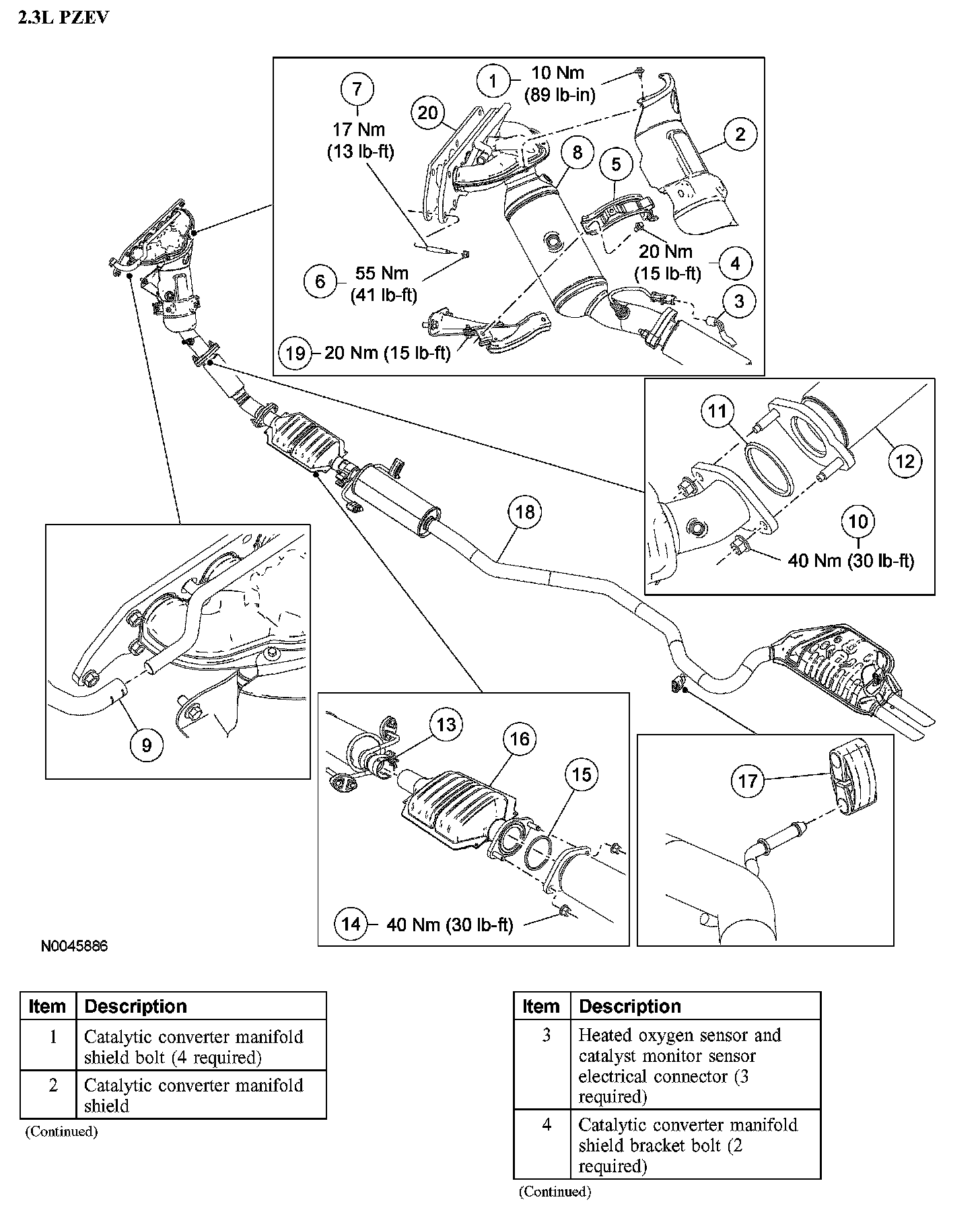

2.3L PZEV:

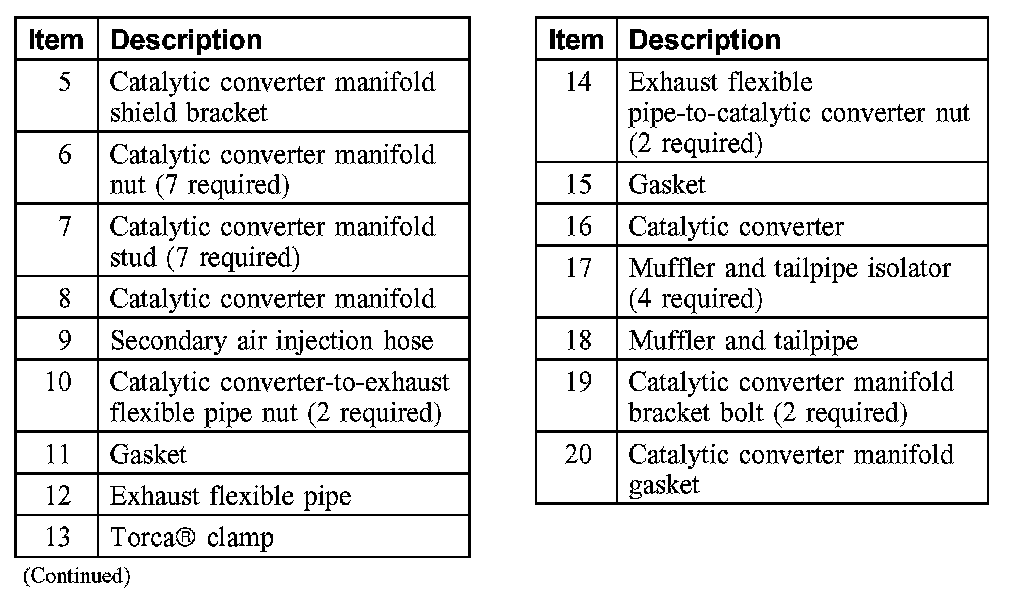

2.3L PZEV:

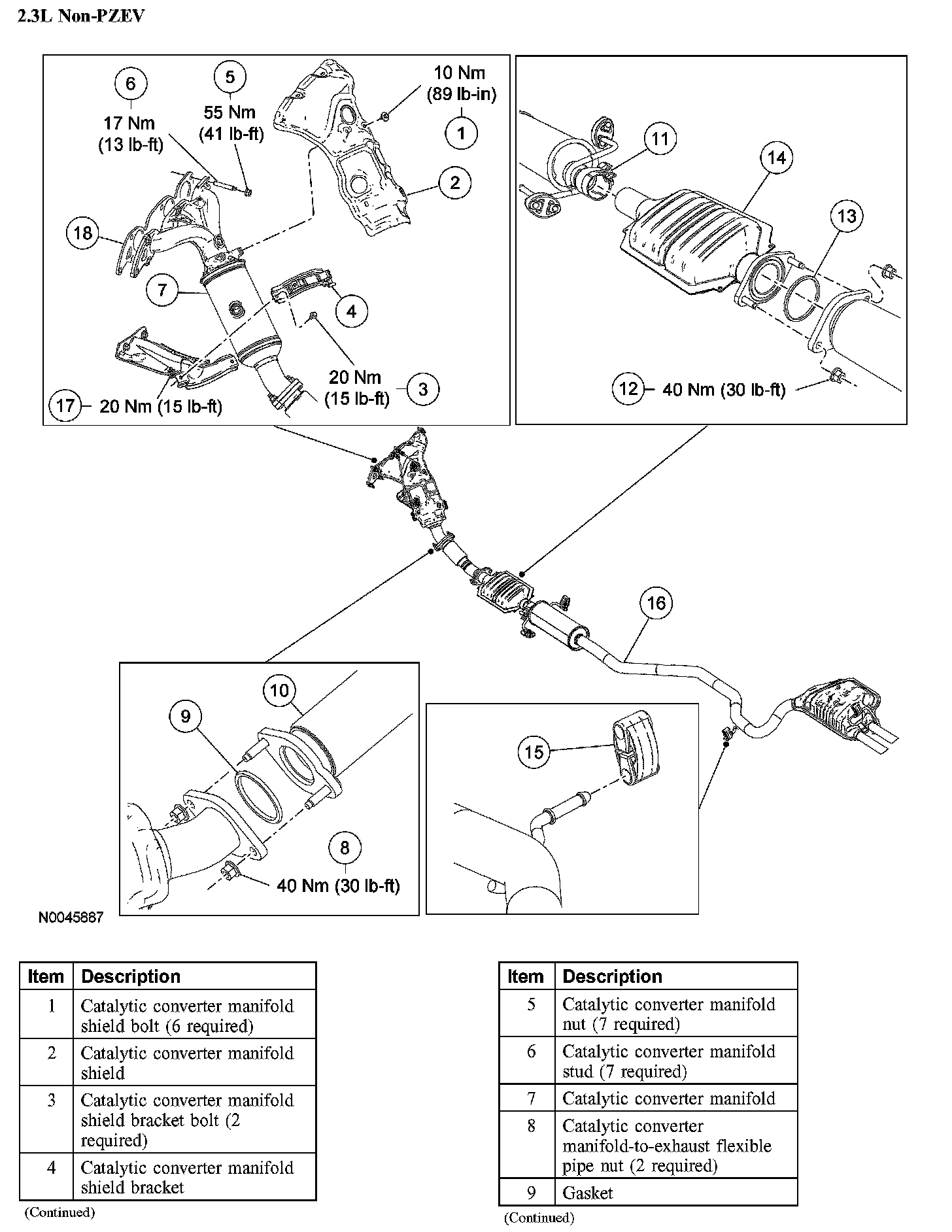

2.3L Non-PZEV:

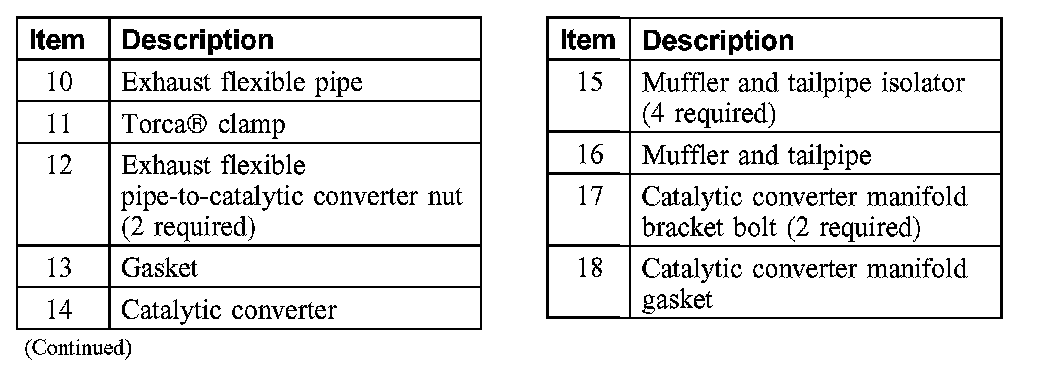

2.3L Non-PZEV:

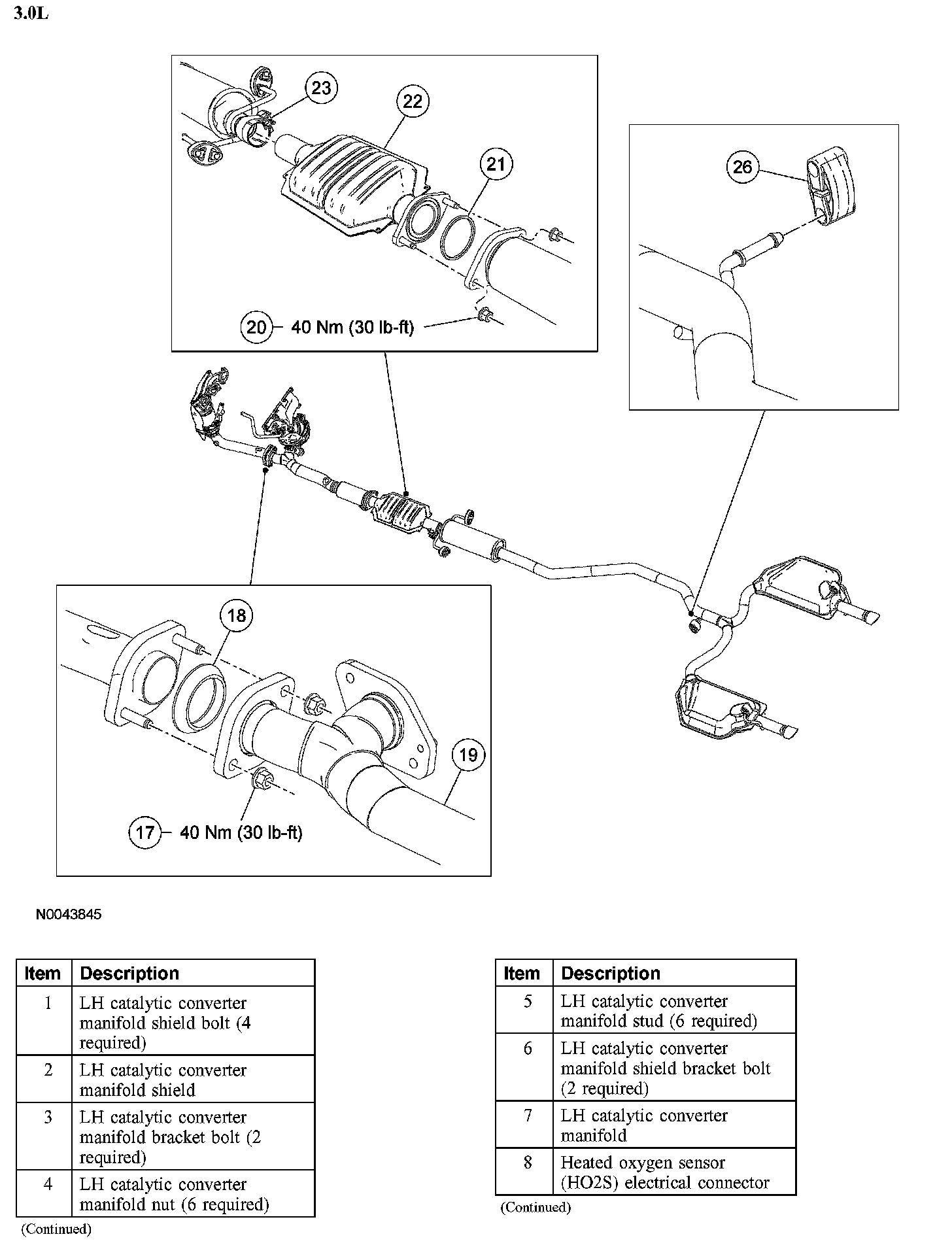

3.0L:

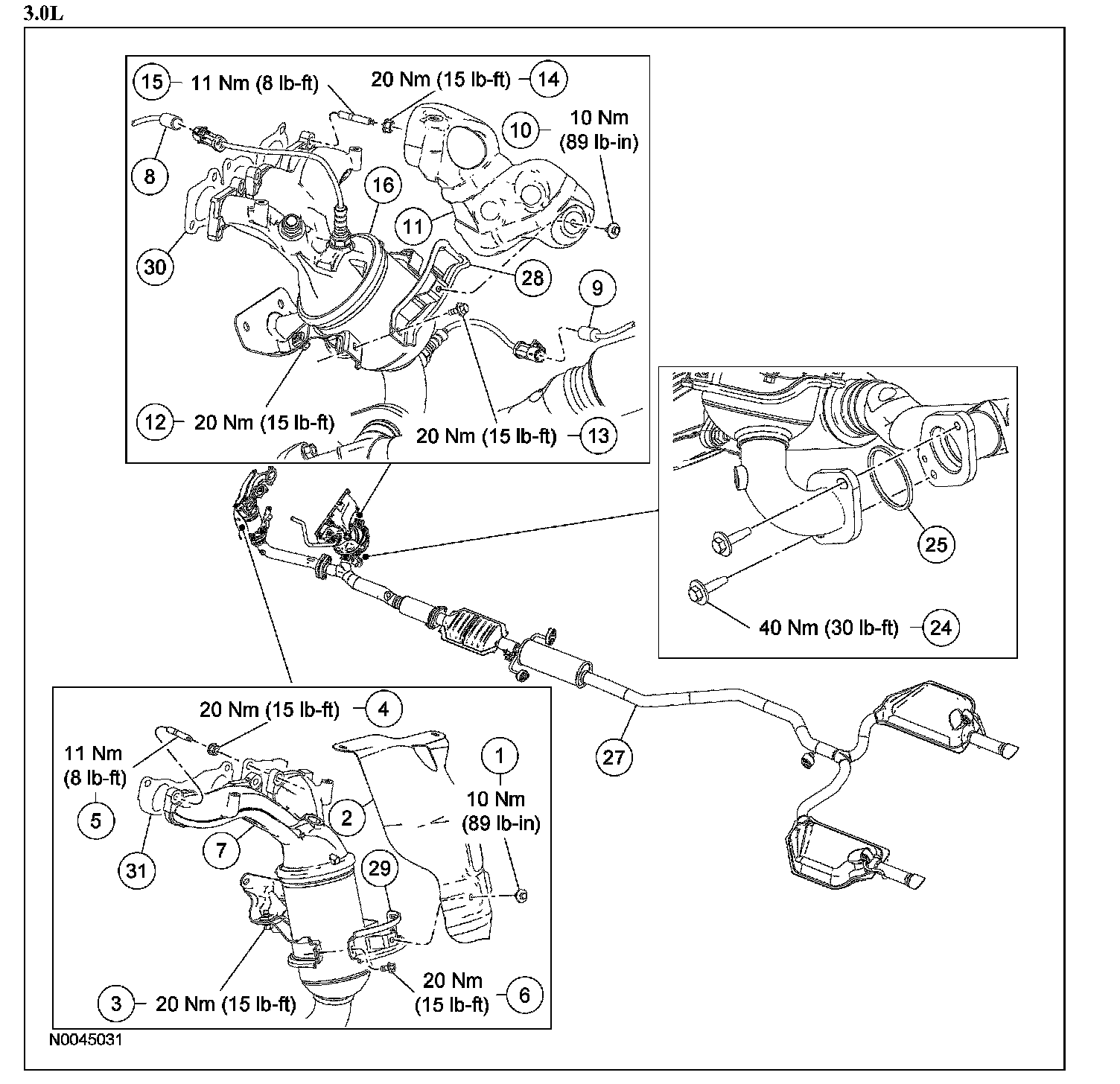

3.0L:

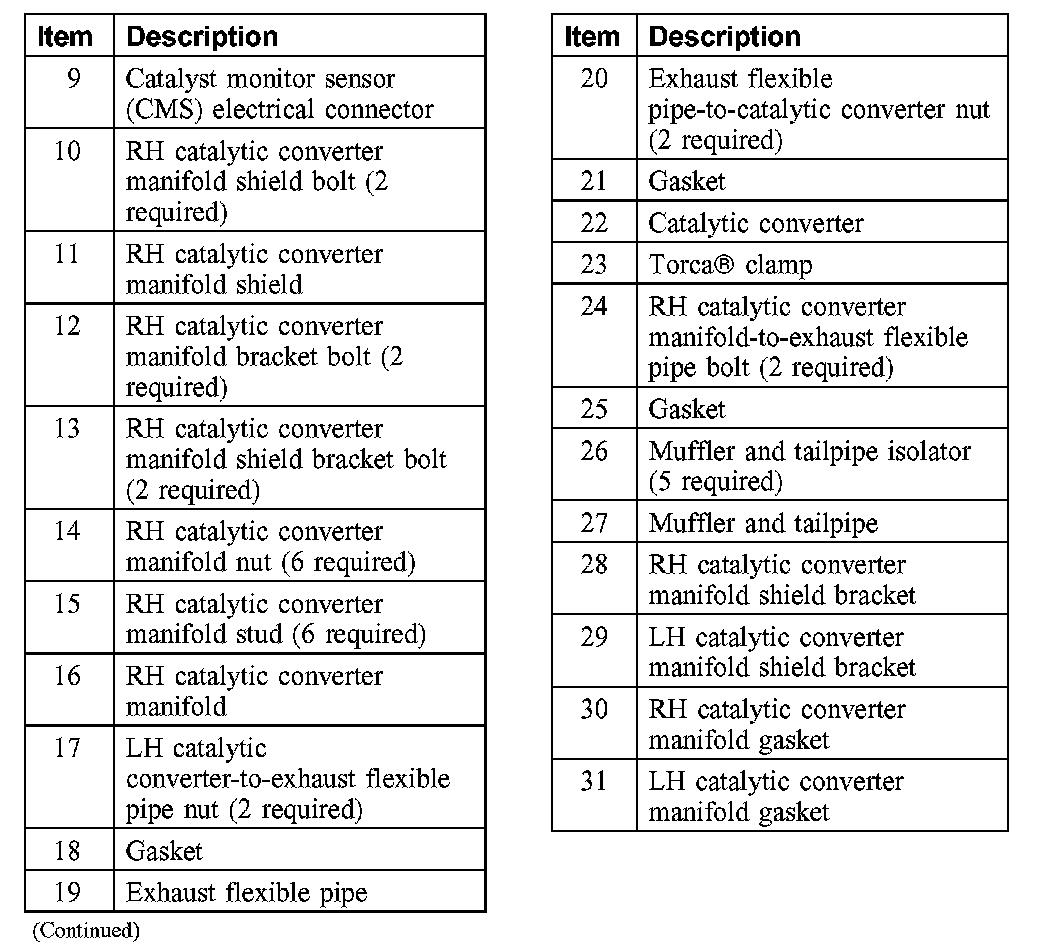

3.0L:
