Home
>>
Ford
>>
2006
>>
Fusion L4-2.3L VIN Z
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
>>
Electronic Automatic Temperature Control (EATC) Module
Electronic Automatic Temperature Control (EATC) Module

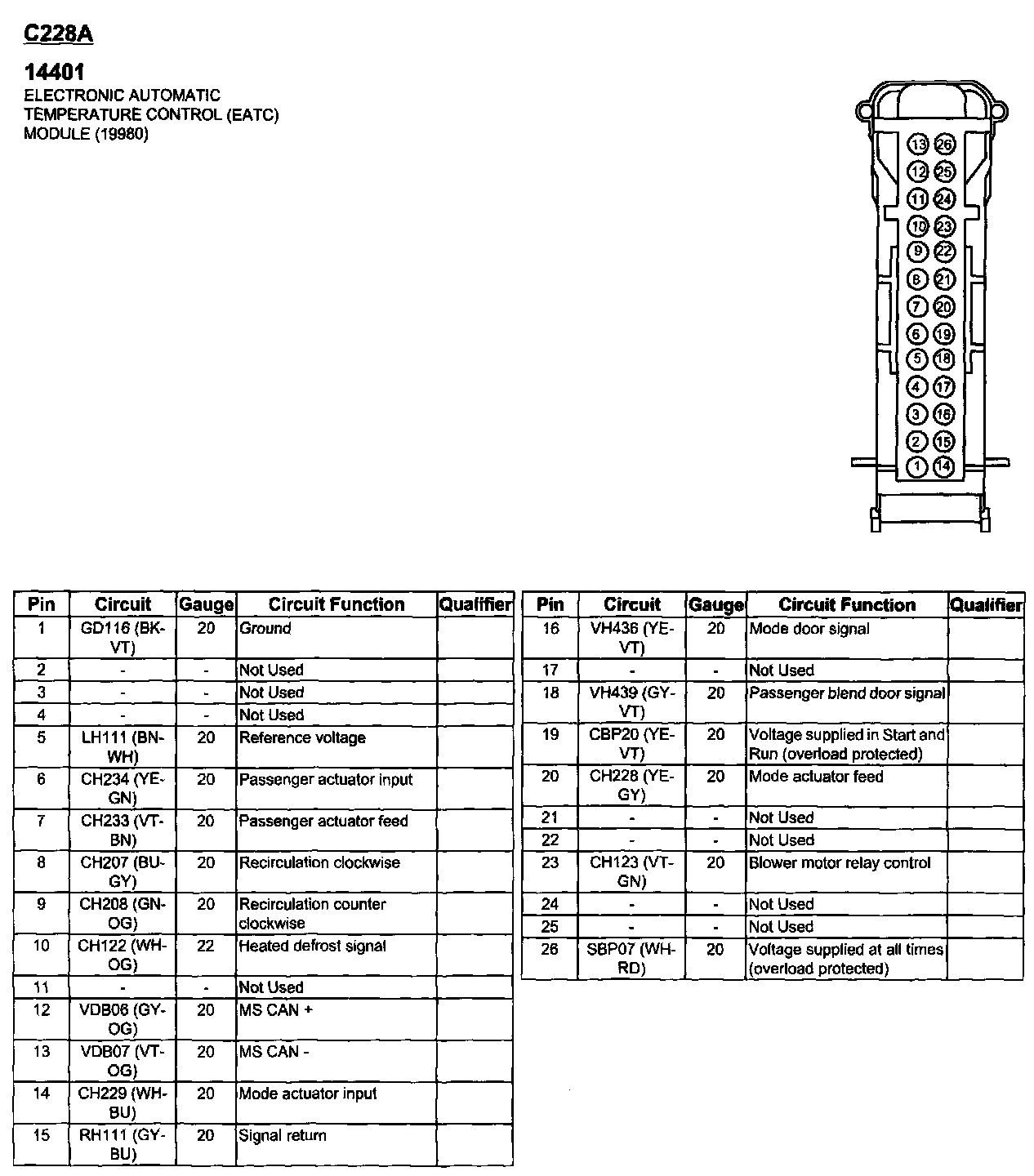

C228A:

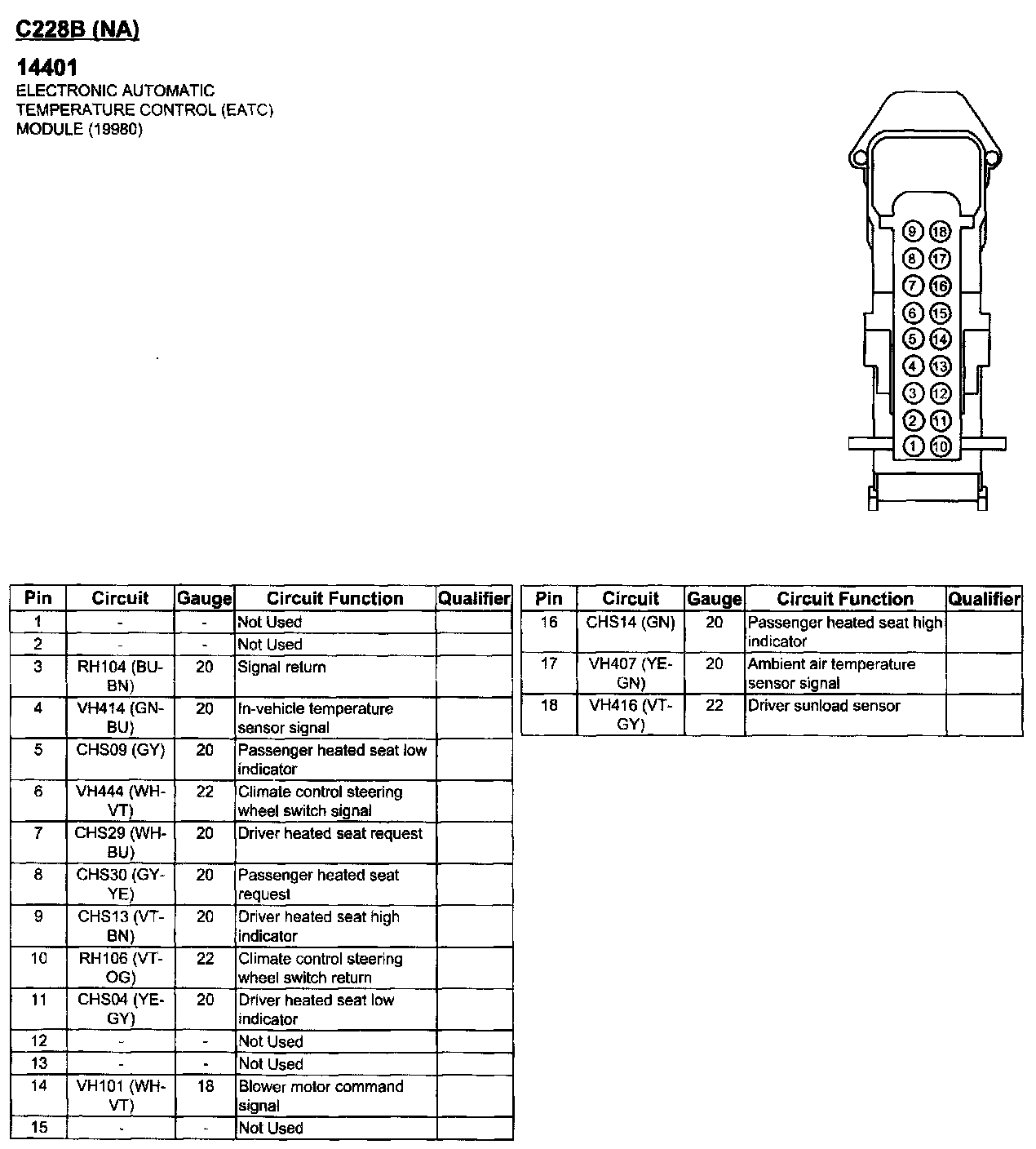

C228B:
