Home >> Ford >> 2006 >> Fusion L4-2.3L VIN Z >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

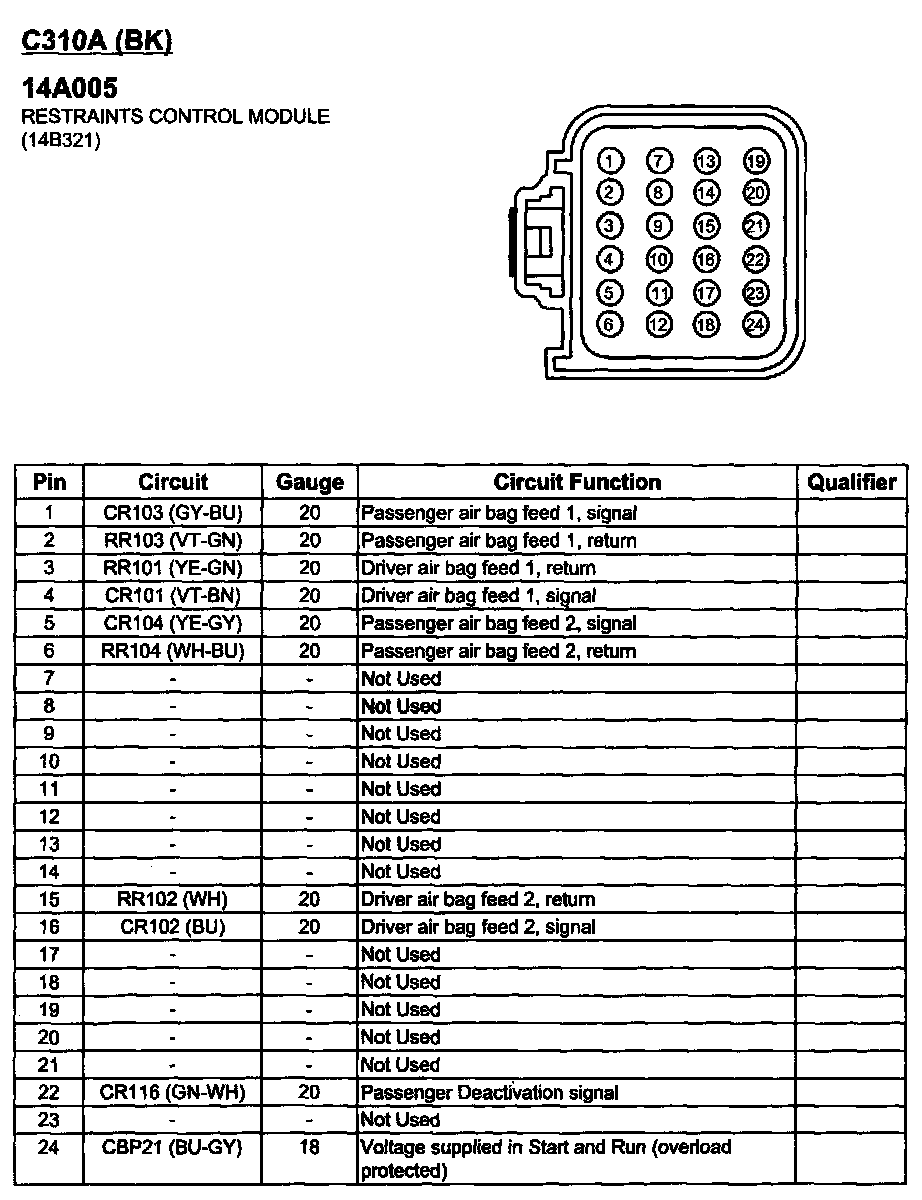

C310A:

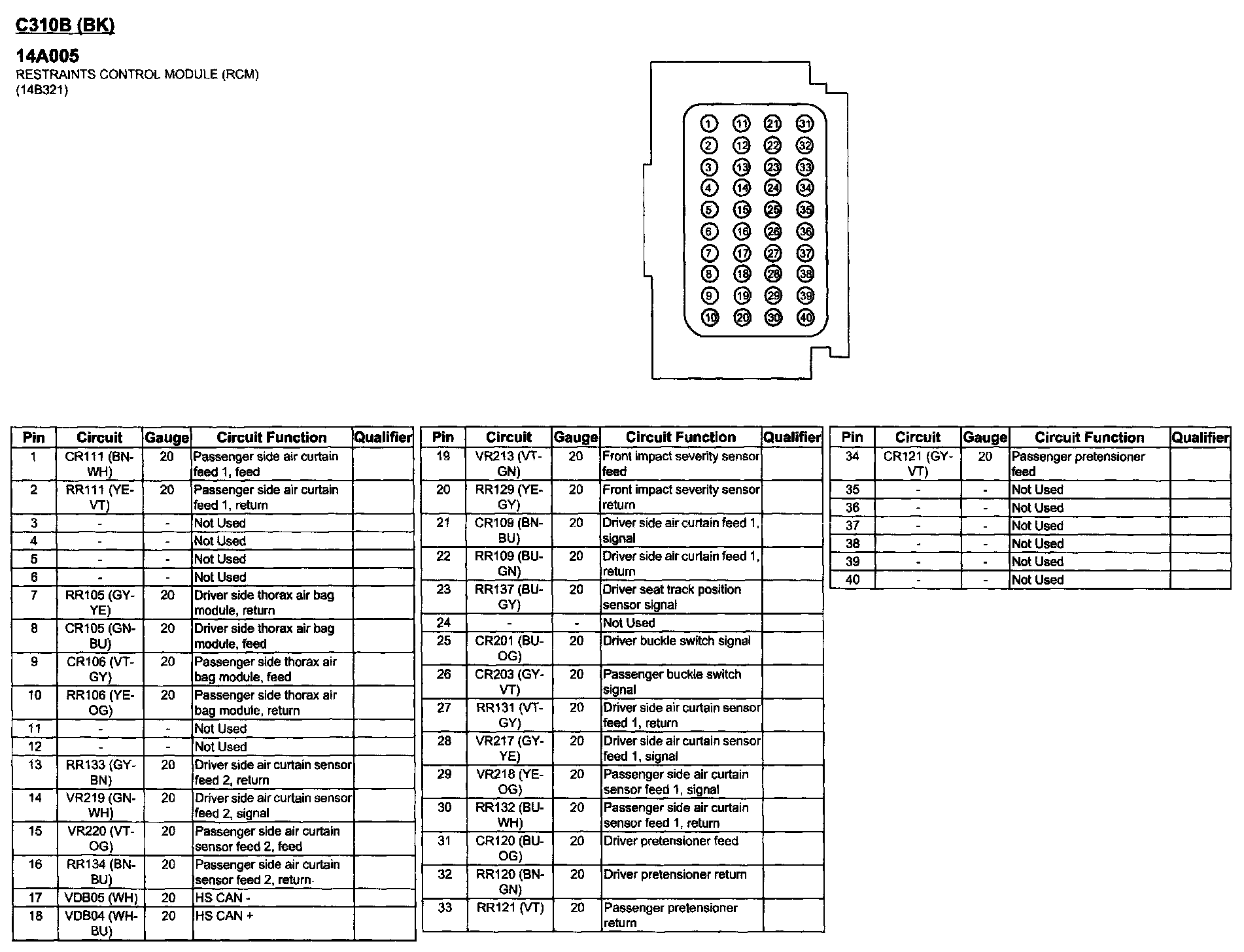

C310B:
