Fusion L4-2.3L VIN Z
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Seat Temperature Control Module
>>
Locations
>>
Heated/Cooled Seat Module
Heated/Cooled Seat Module

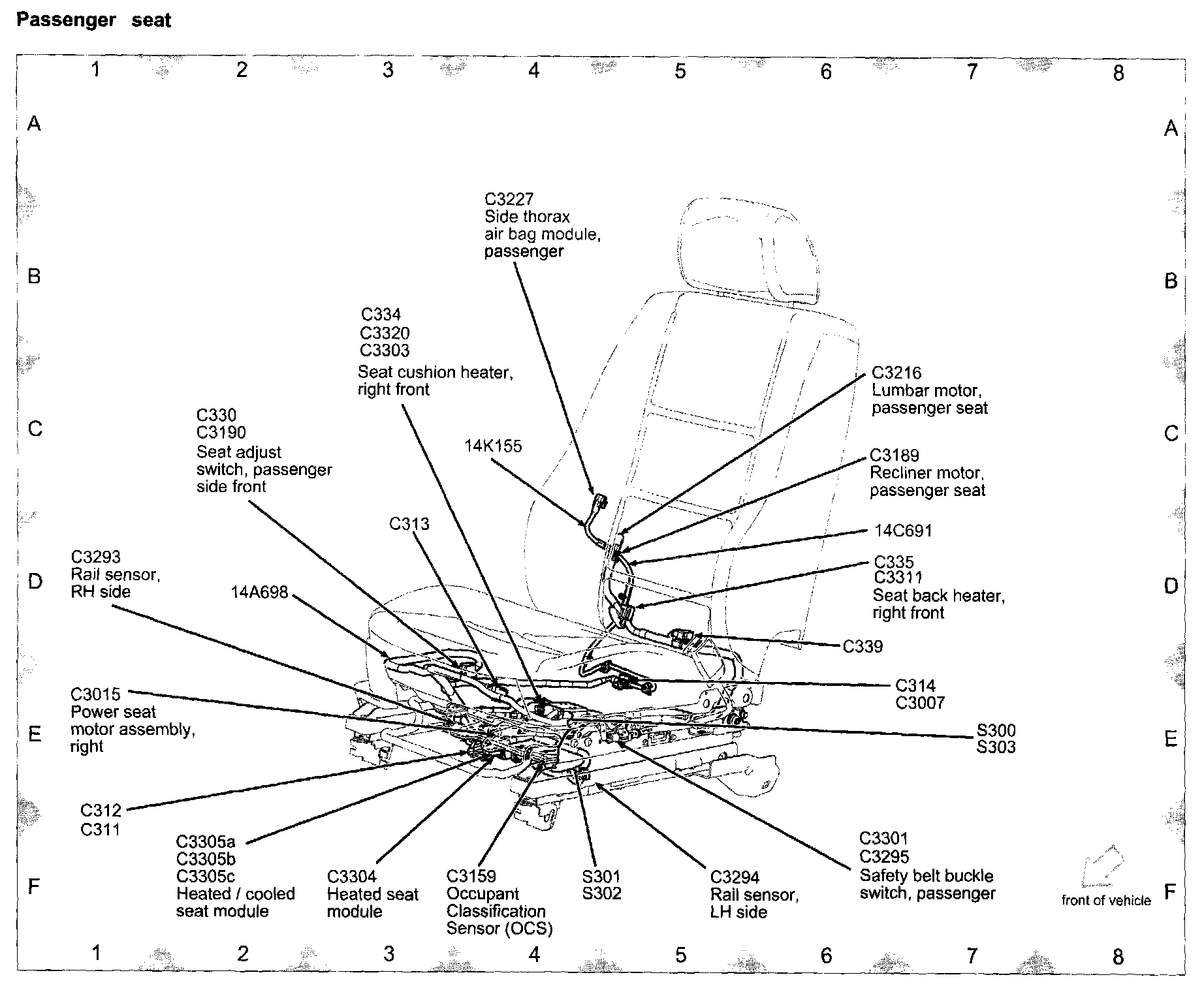

View 151-19 (Passenger Seat):
