Home >> Ford >> 2006 >> Freestar V6-4.2L VIN 2 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Radiator

Radiator

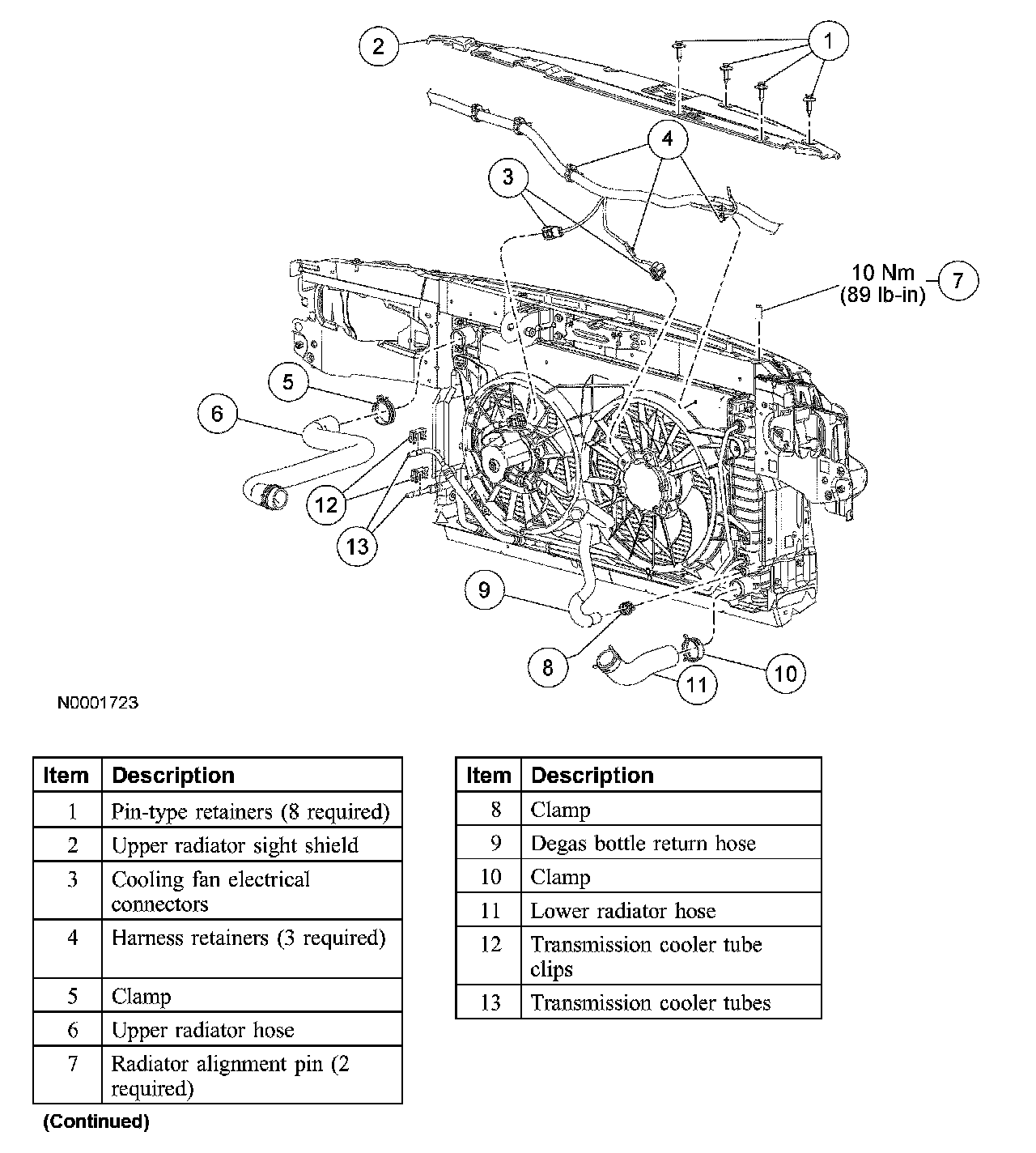

Radiator and Cooling Fan - Exploded View (Part 1):

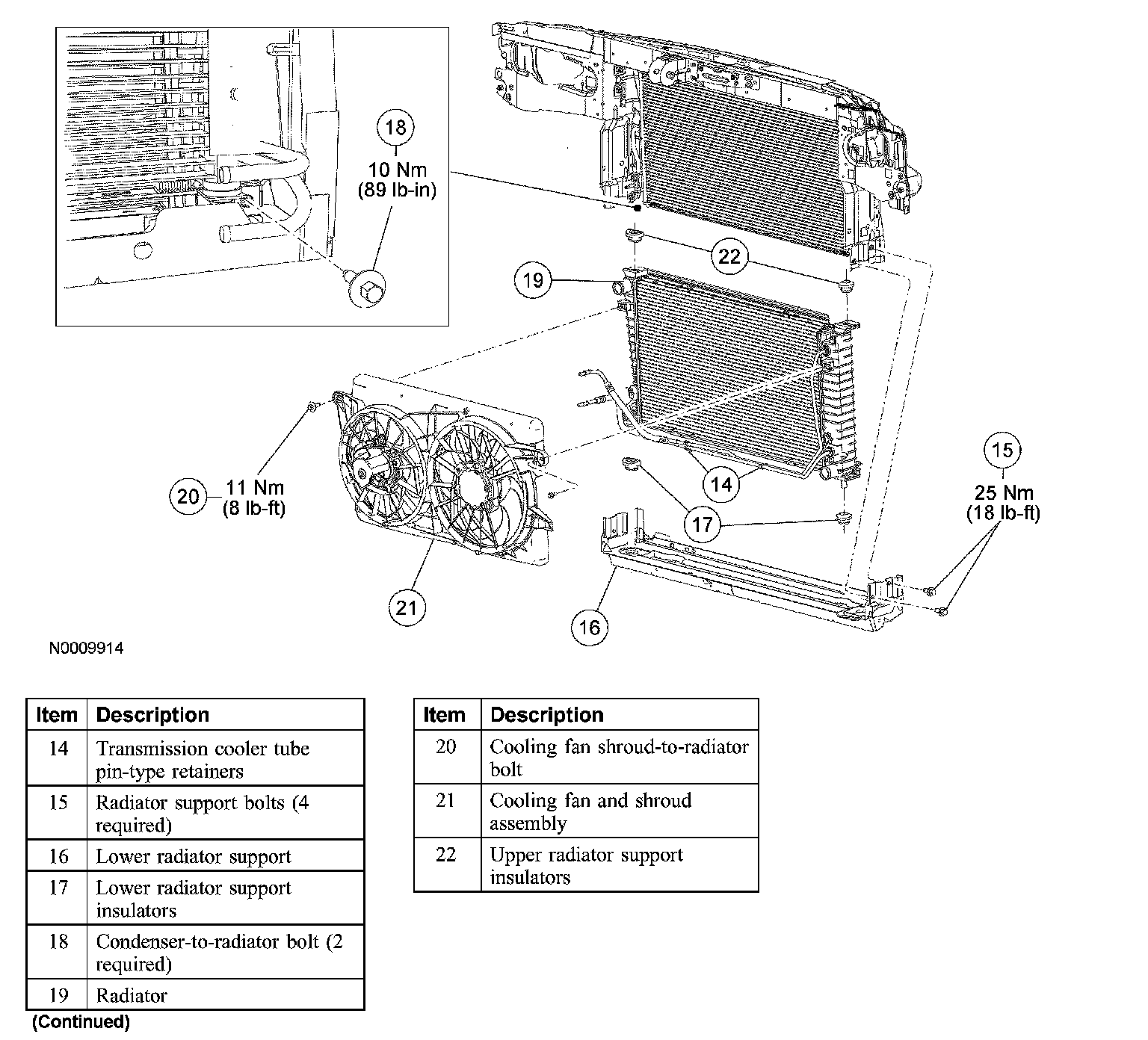

Radiator and Cooling Fan - Exploded View (Part 2):
