Lower End Components - Exploded View

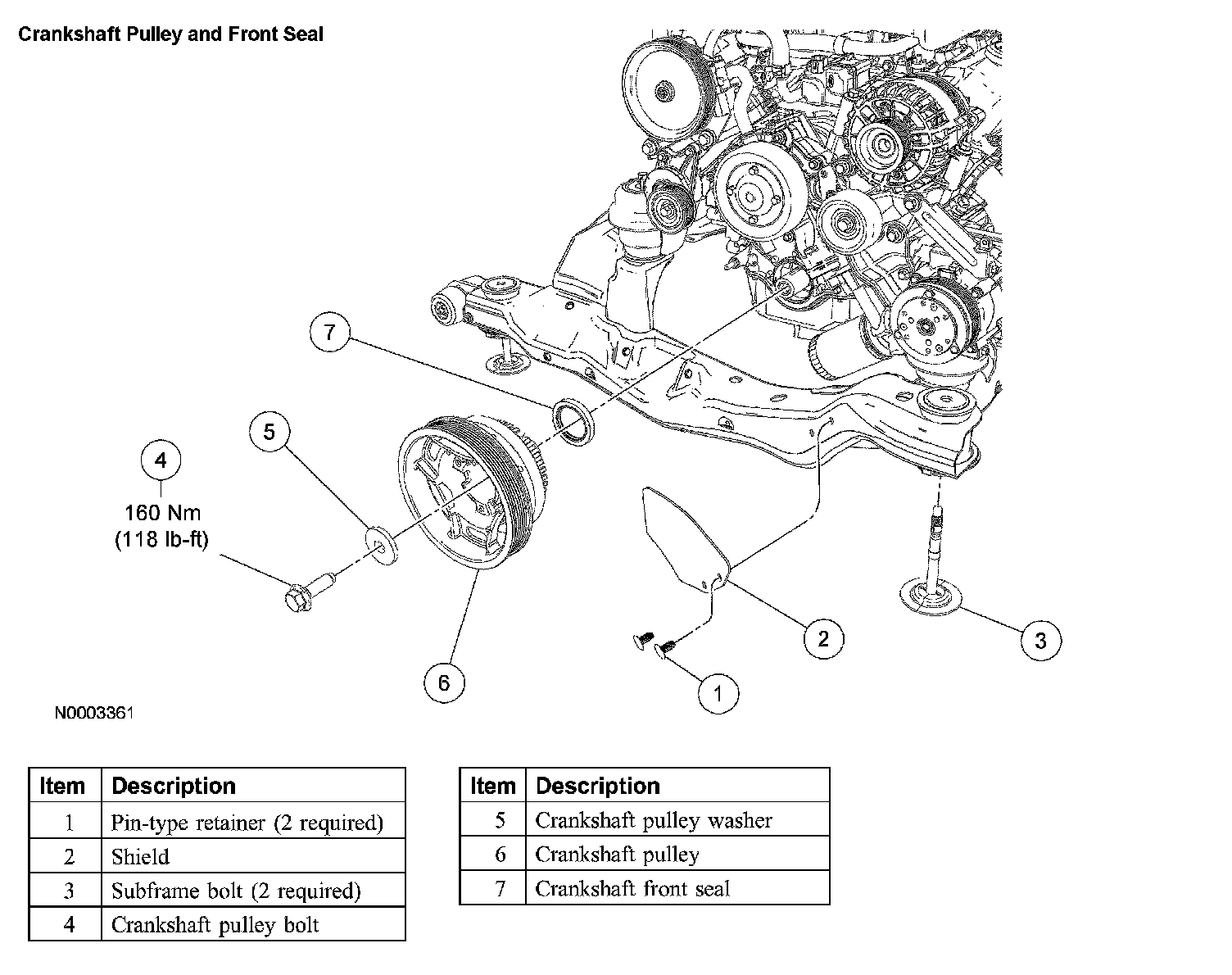

Crankshaft Pulley and Front Seal:

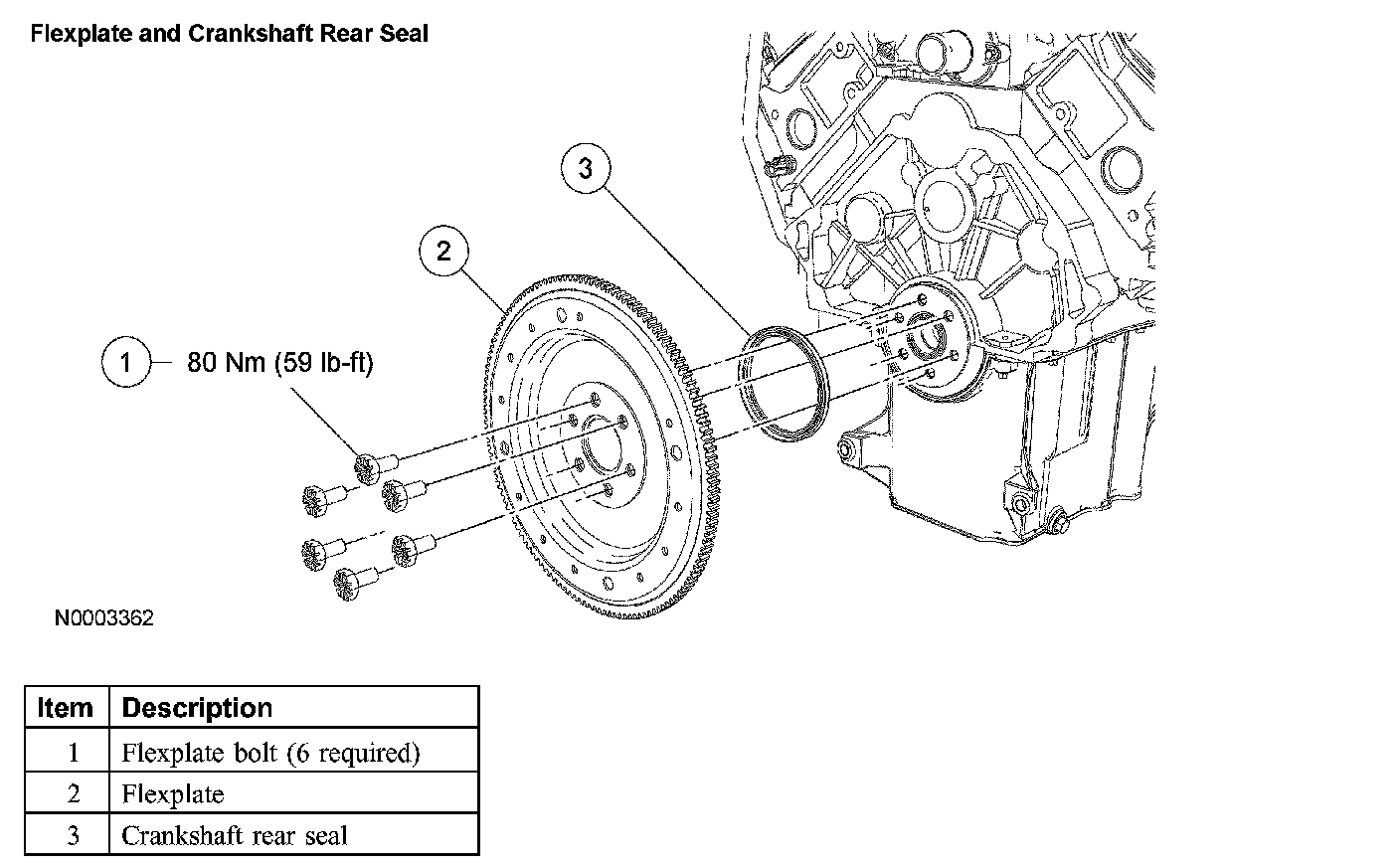

Flexplate and Crankshaft Rear Seal:
