Home >> Ford >> 2006 >> Freestar V6-4.2L VIN 2 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC

Control Module HVAC

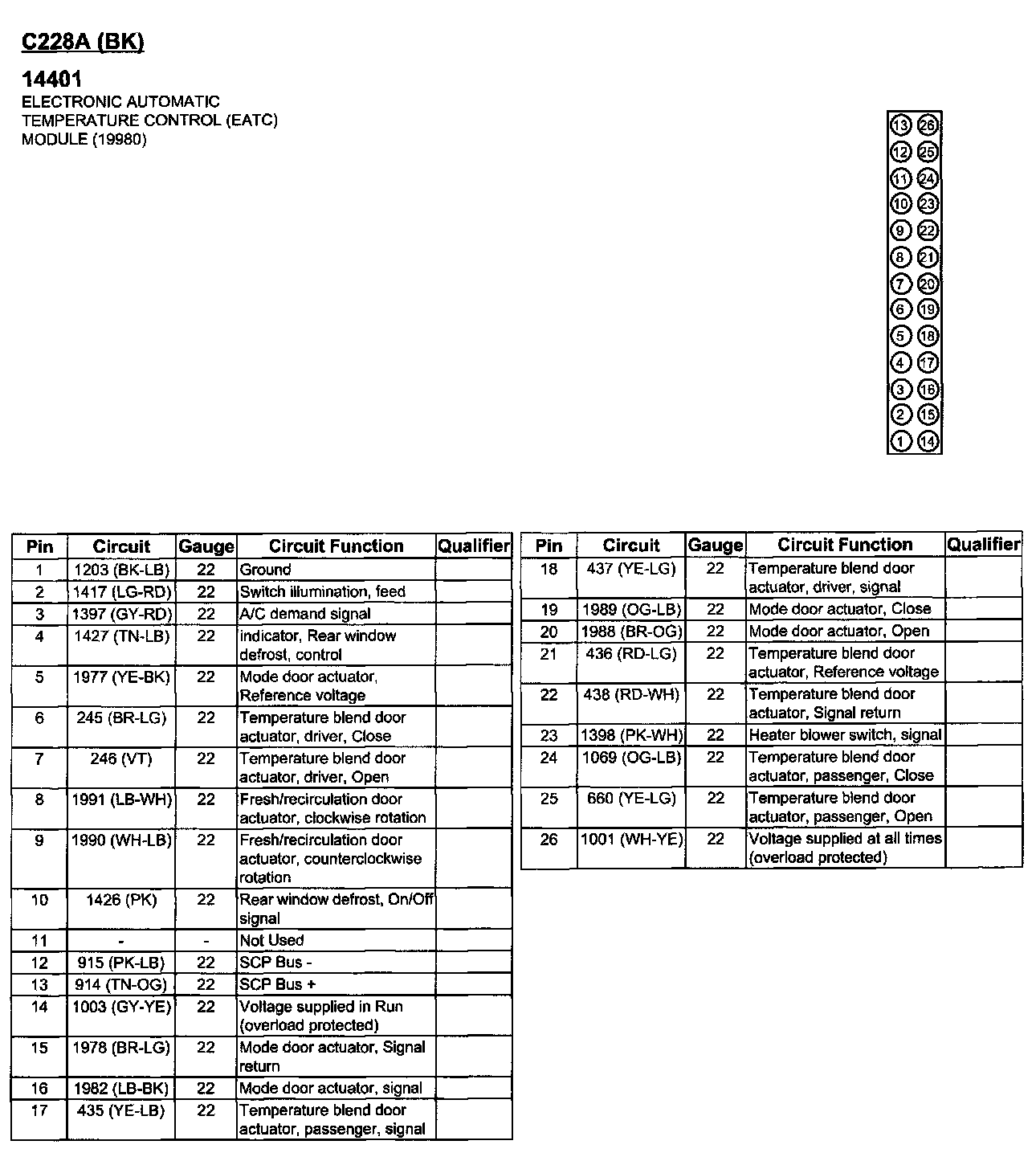

C228A:

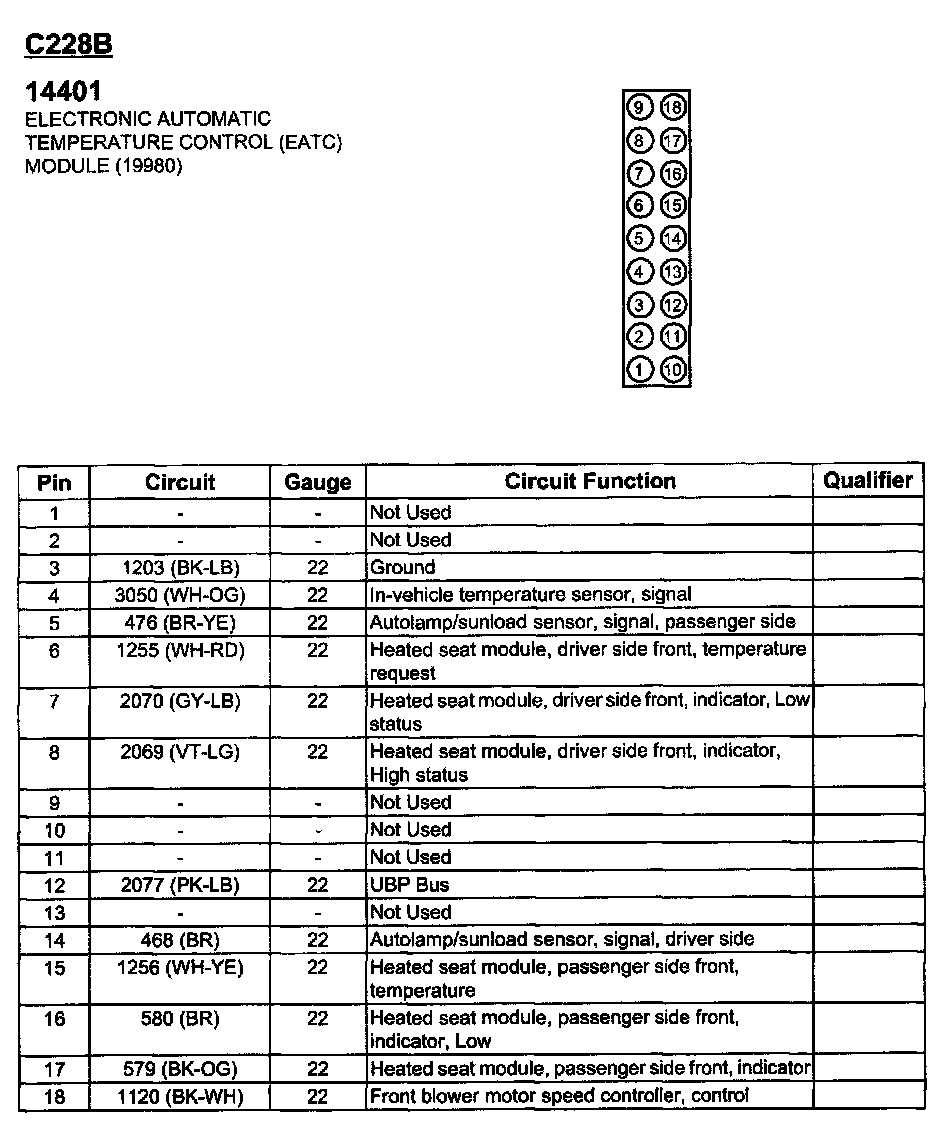

C228B:
