Exhaust System
Exhaust System
Exhaust System
- Exploded View

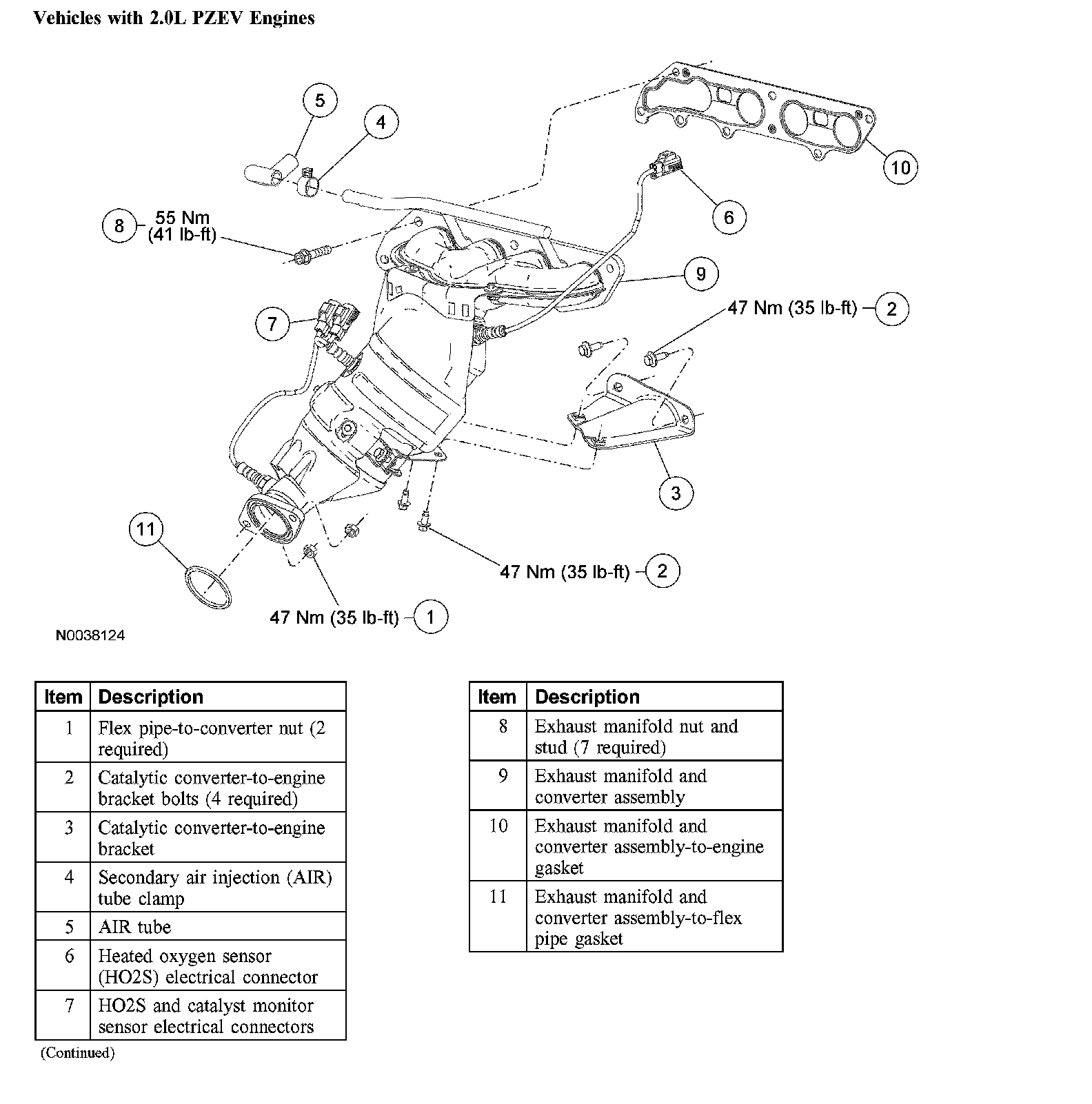

Vehicles with 2.0L PZEV Engines:

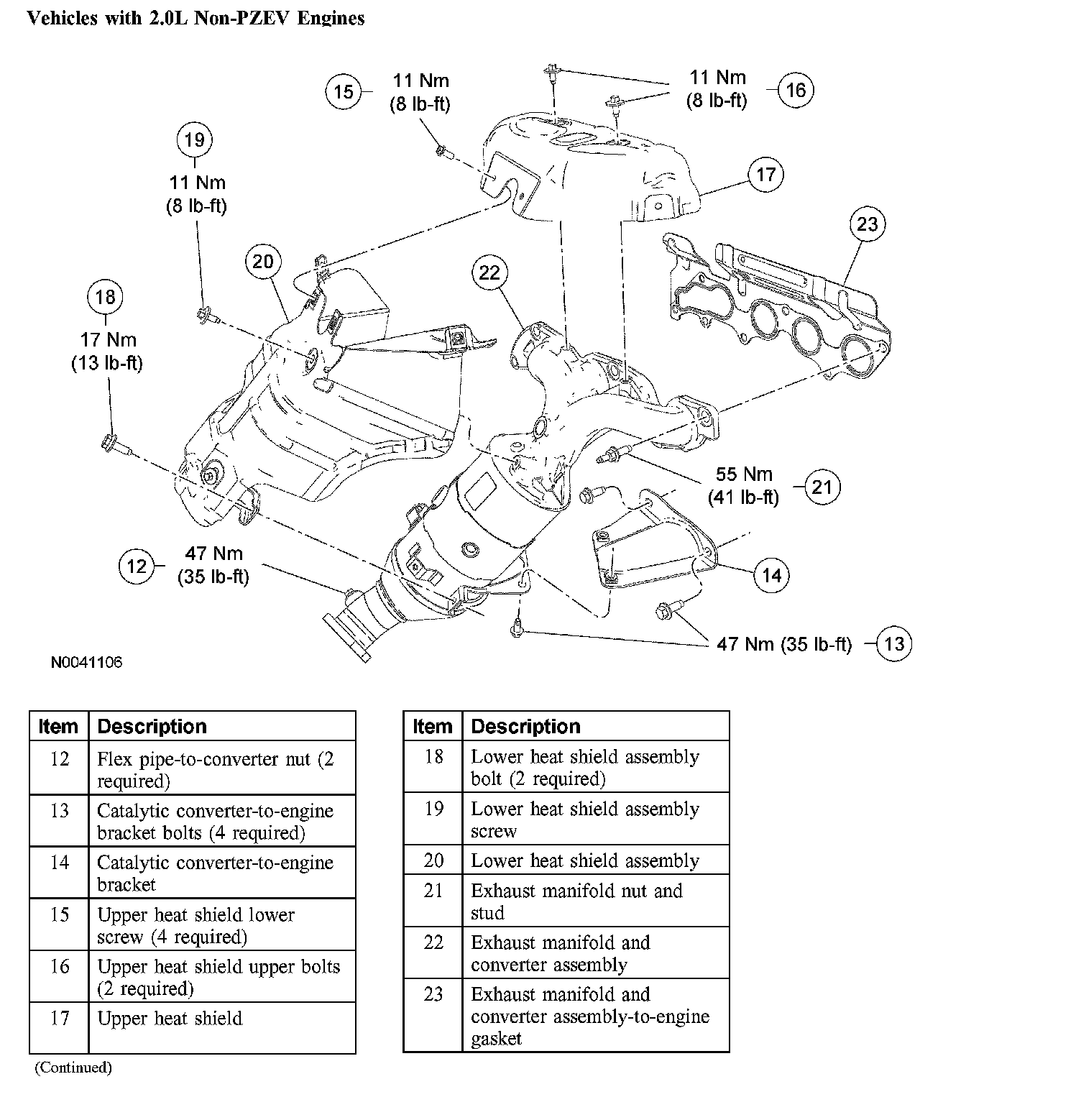

Vehicles with 2.0L Non-PZEV Engines:

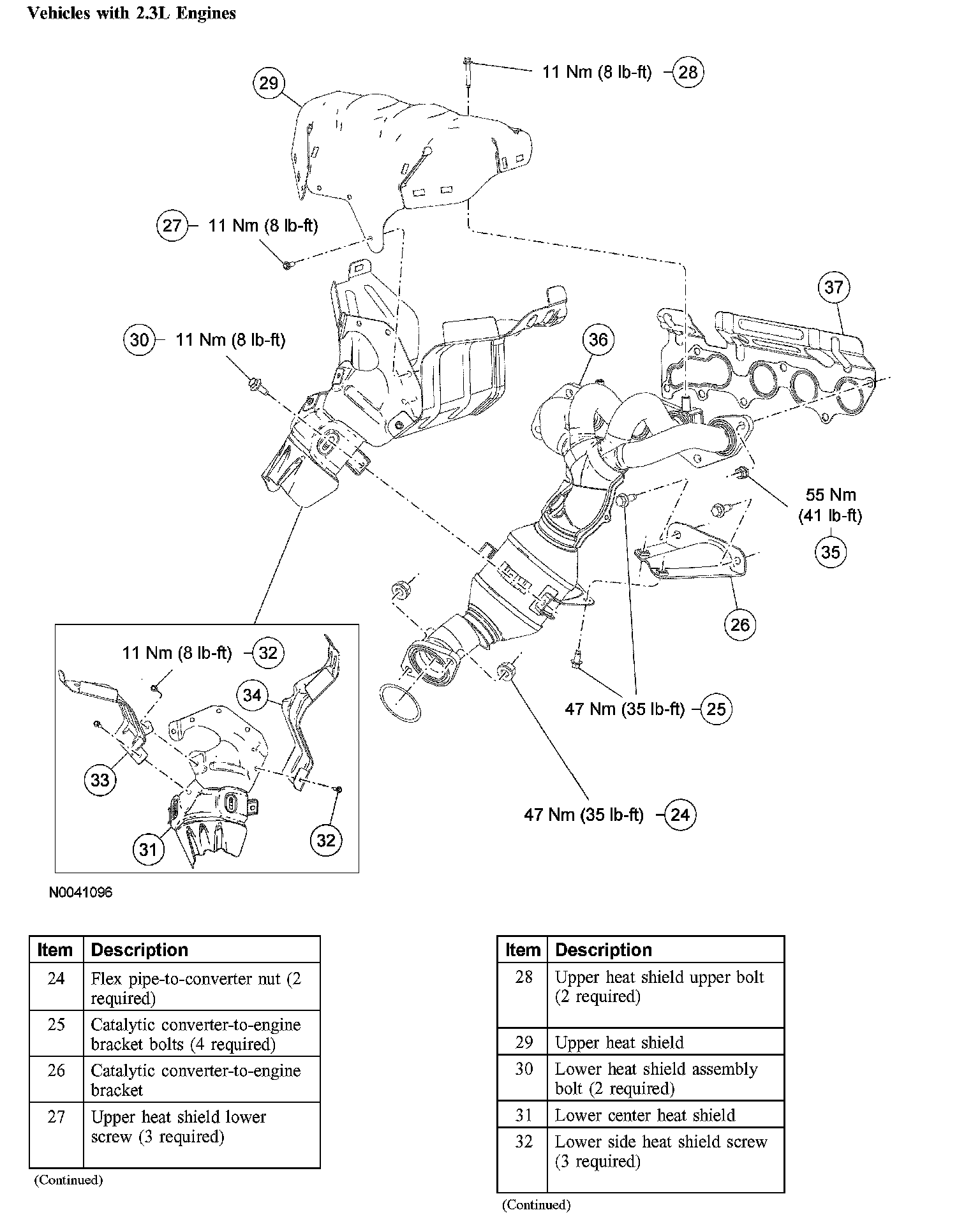

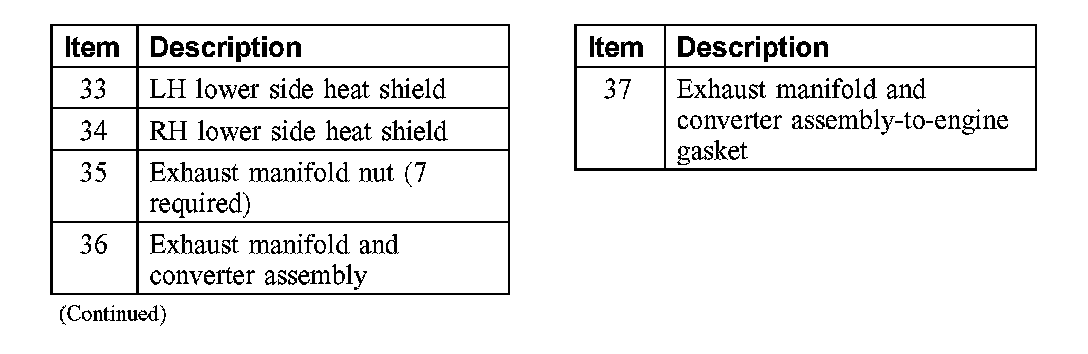

Vehicles with 2.3L Engines:

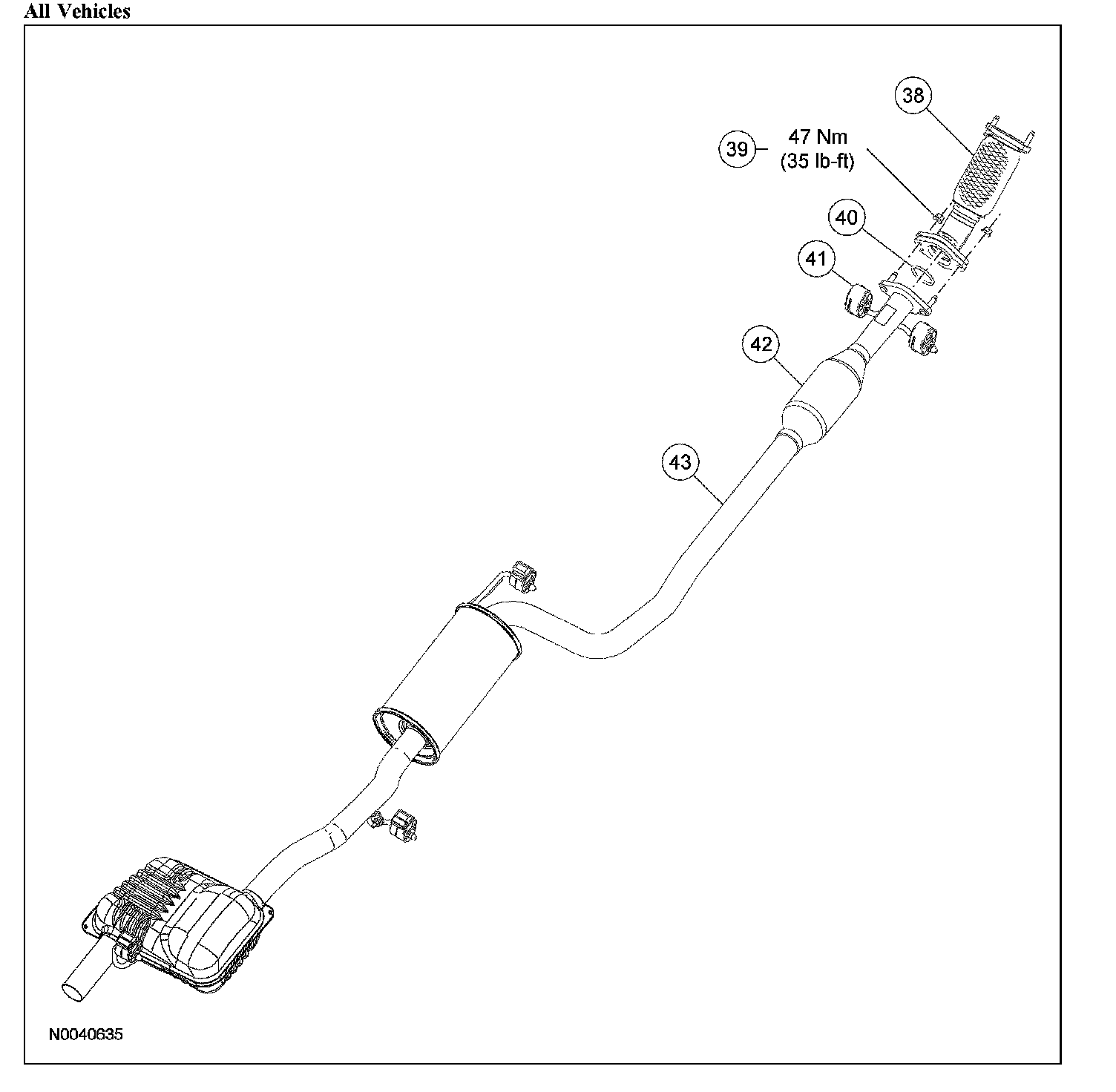

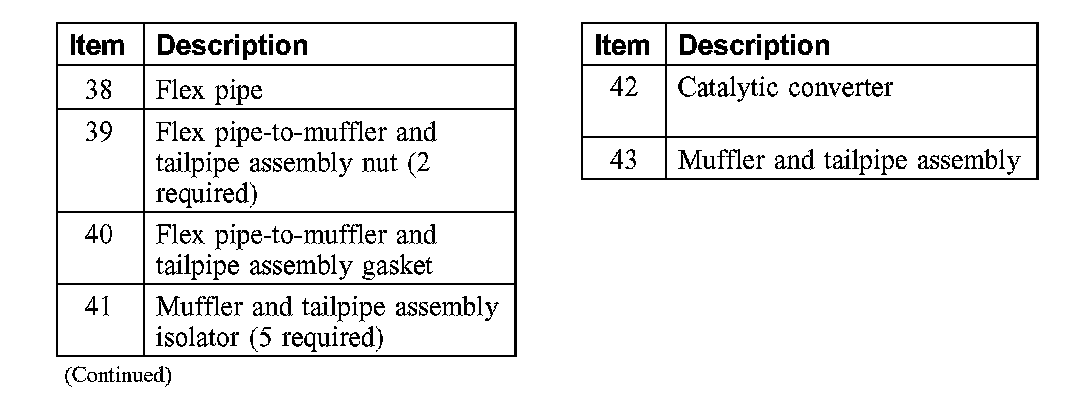

All Vehicles:
