Focus L4-2.3L VIN Z
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Engine Lubrication
Engine Lubrication

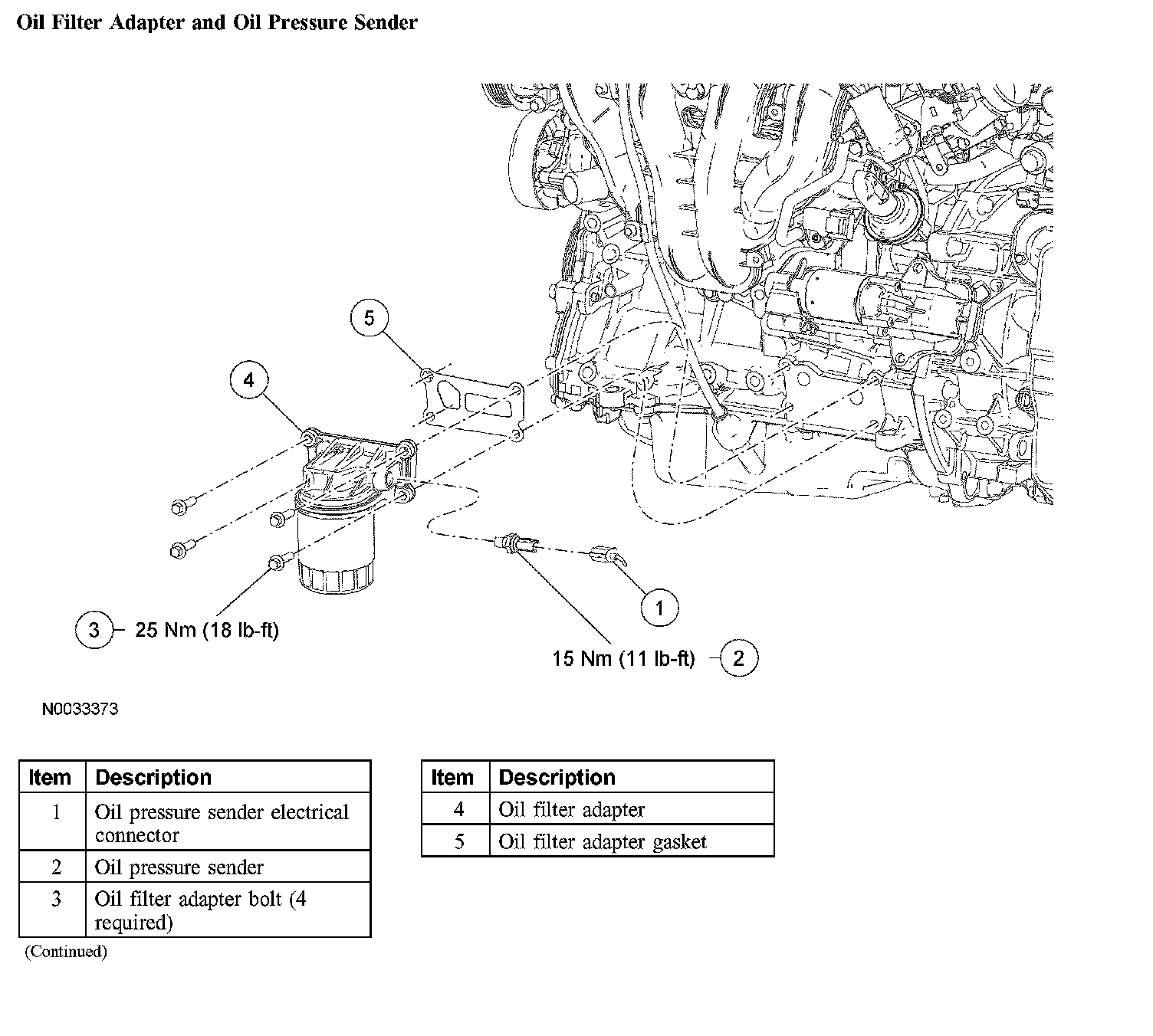

Oil Filter Adapter and Oil Pressure Sender:

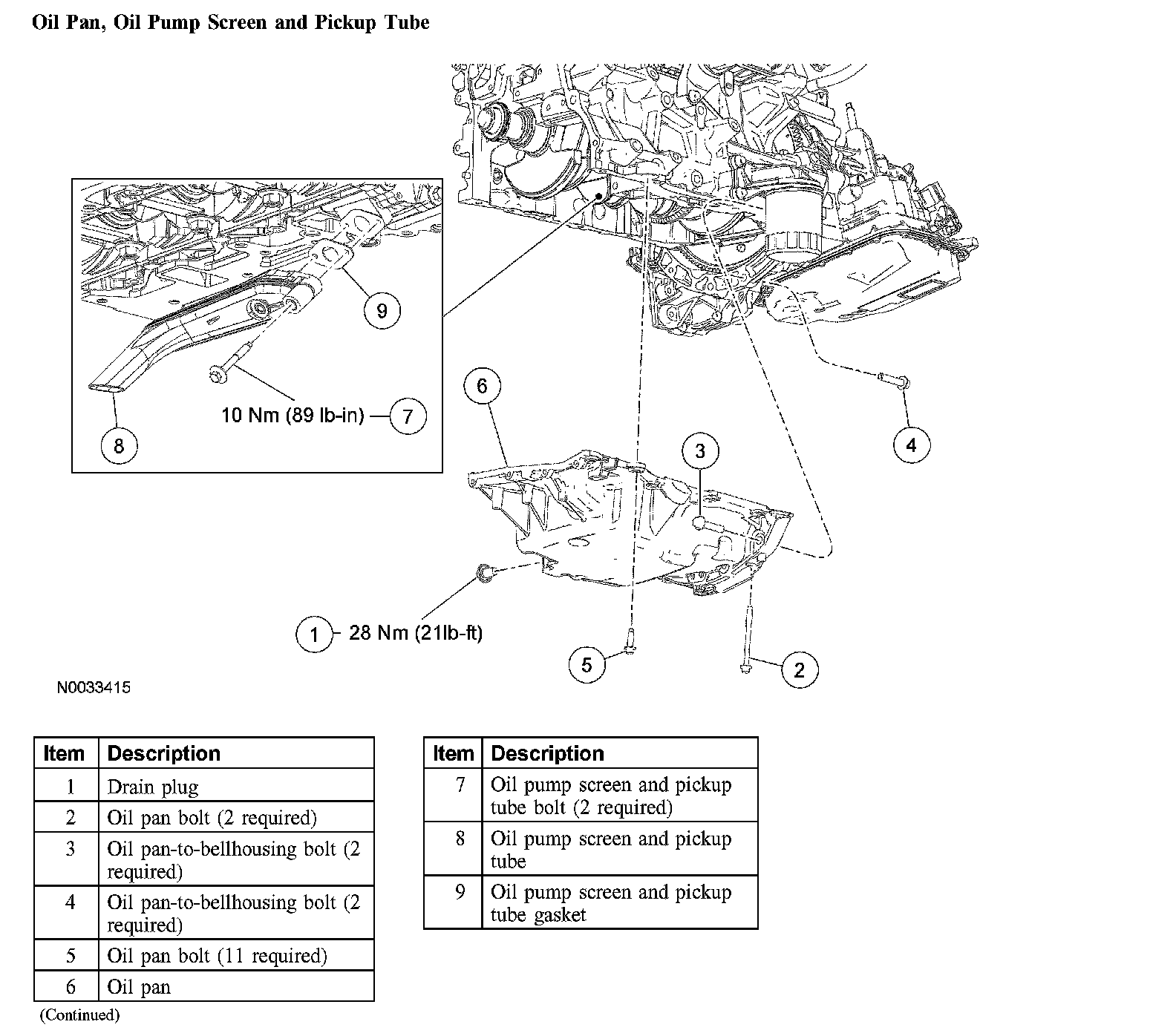

Oil Pan, Oil Pump Screen and Pickup Tube:
Engine Lubrication
Components Exploded View
