Drive Belt

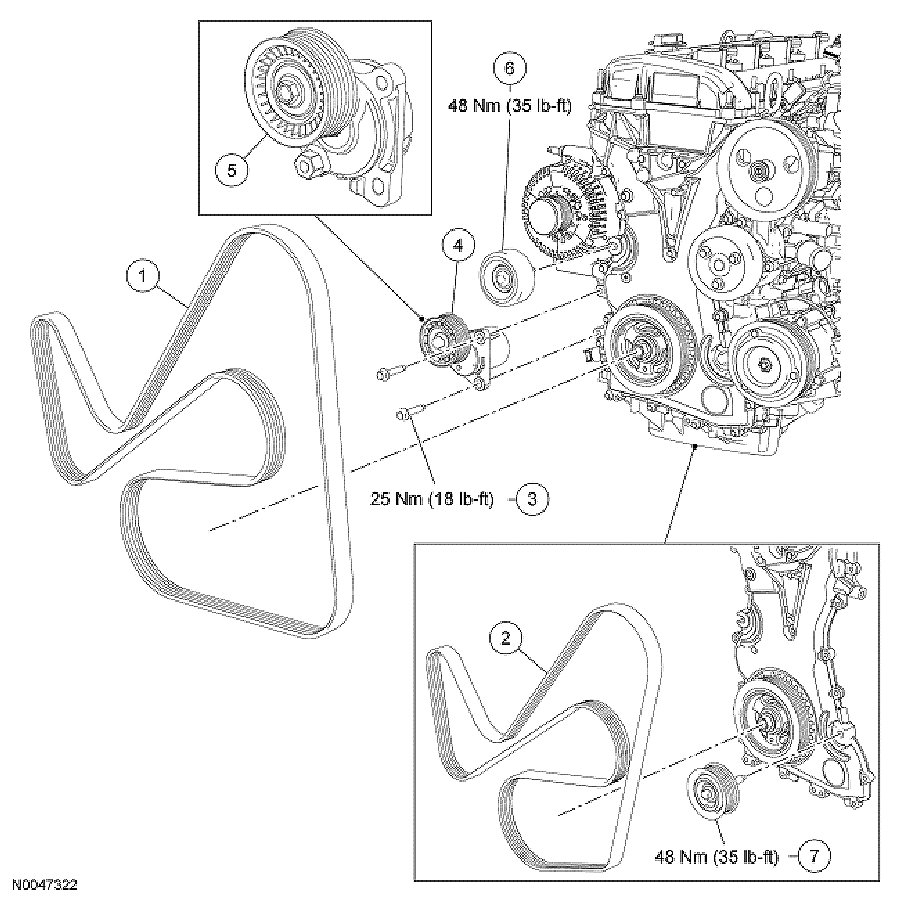

Front End Accessory Drive (FEAD) - Exploded View

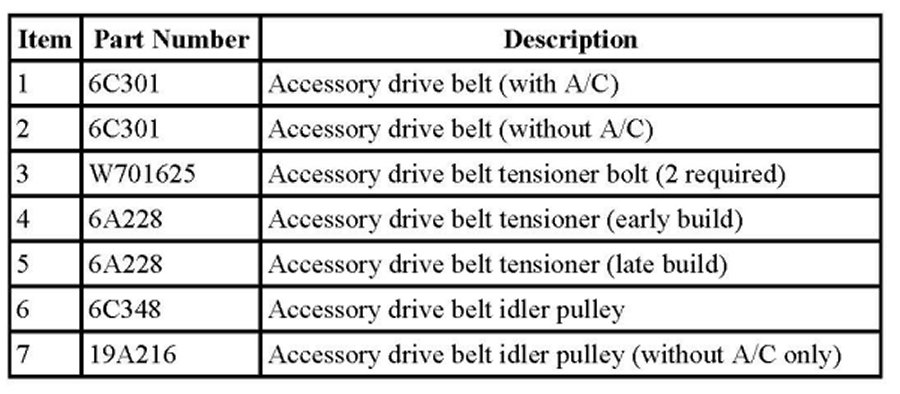

Front End Accessory Drive (FEAD) - Exploded View:
