Home >> Ford >> 2006 >> Focus L4-2.3L VIN Z >> Repair and Diagnosis >> Diagrams >> Connector Views >> Relay Box

Relay Box

C270a:

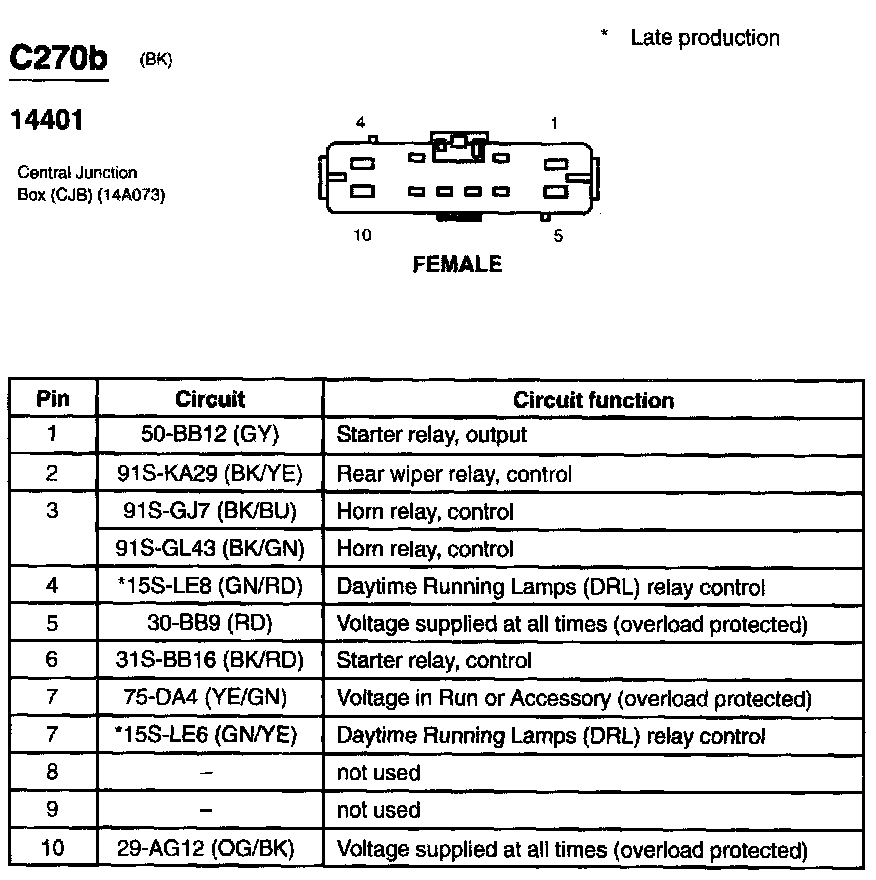

C270b:



C270c:

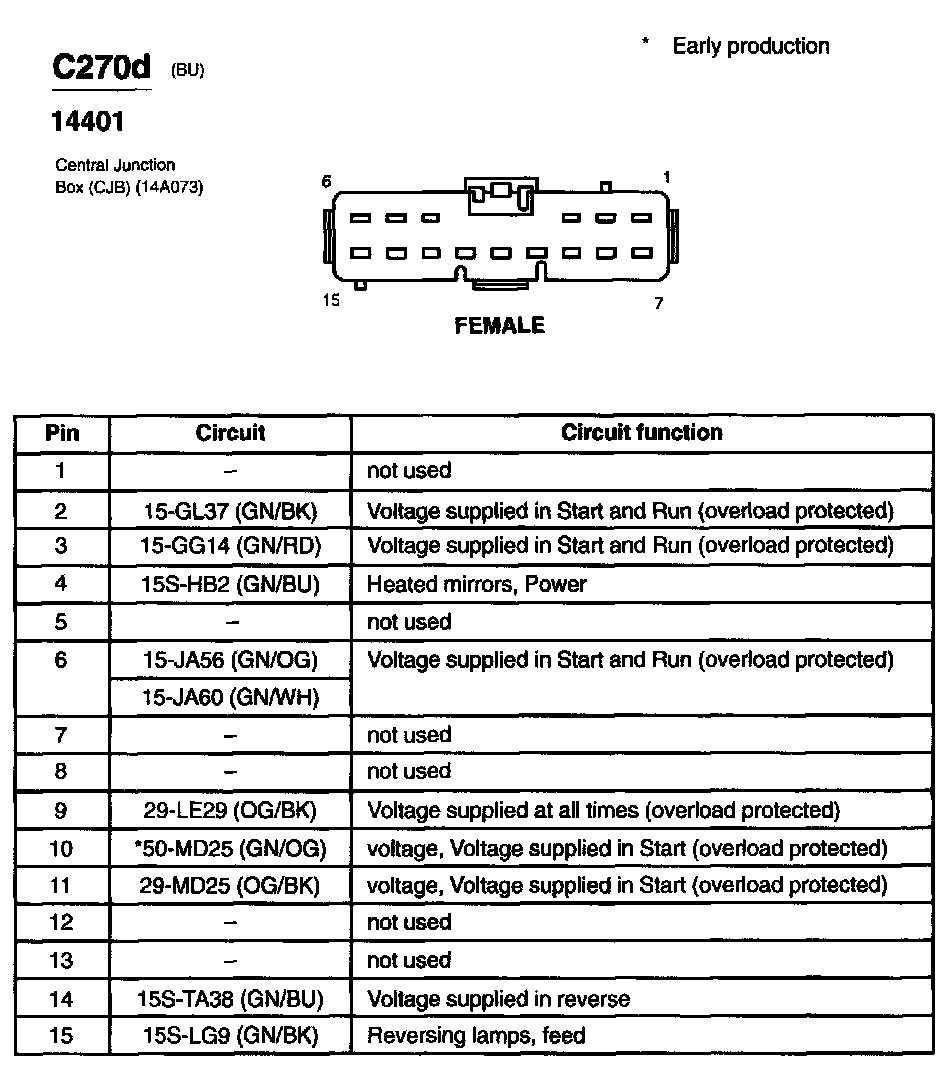

C270d:

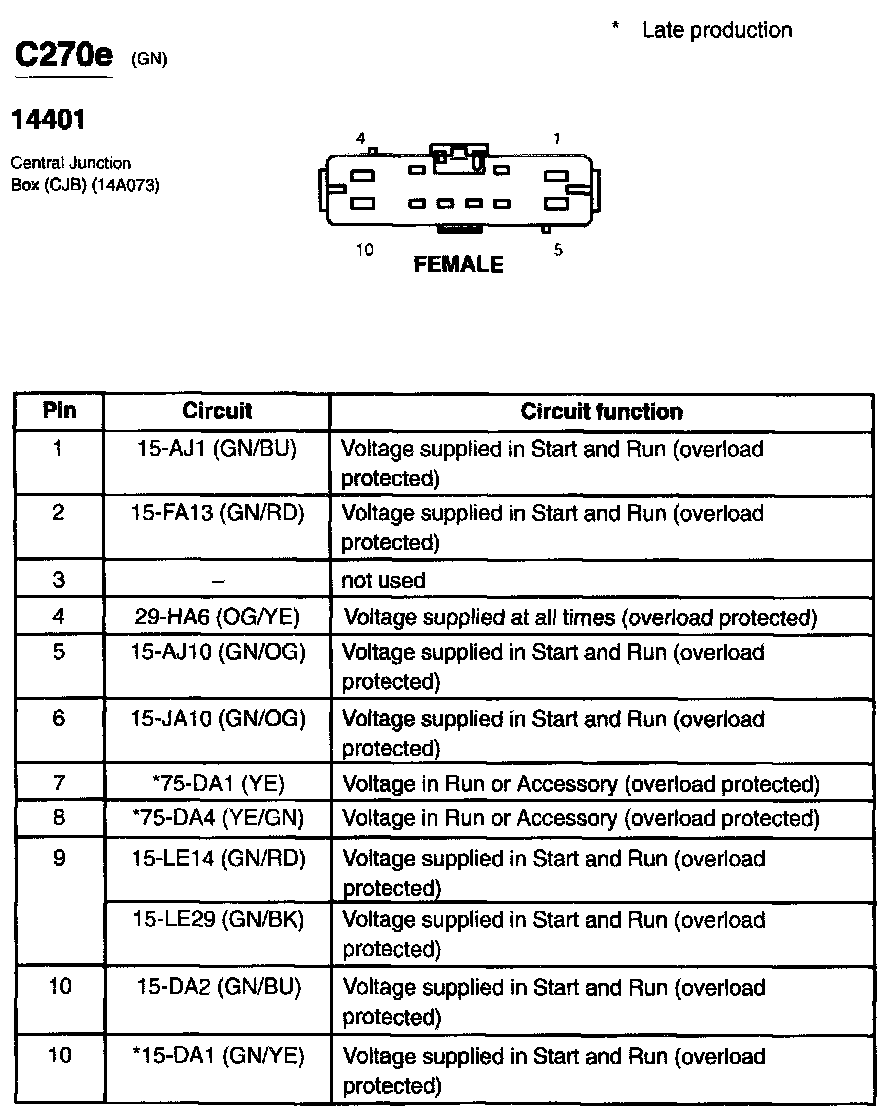

C270e:

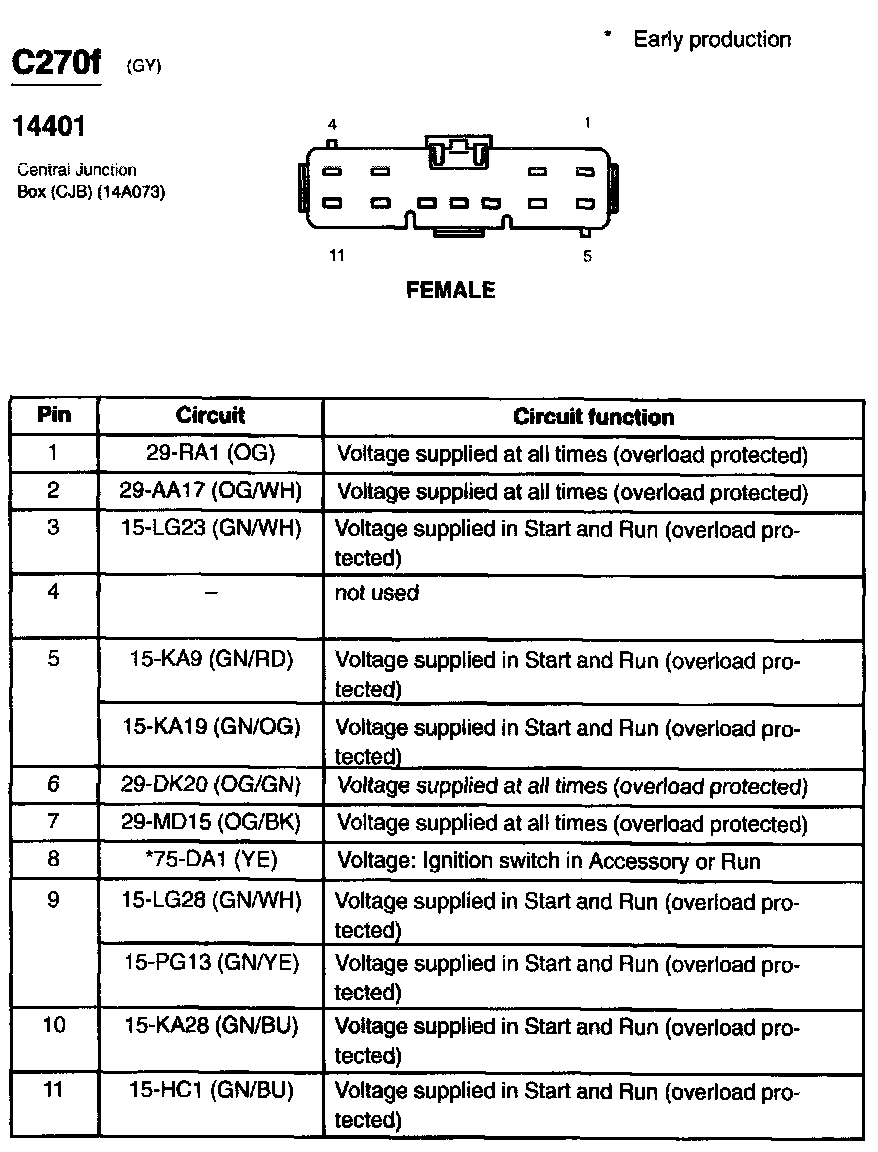

C270f:



C270g:
