Air Flow Meter/Sensor: Service and Repair

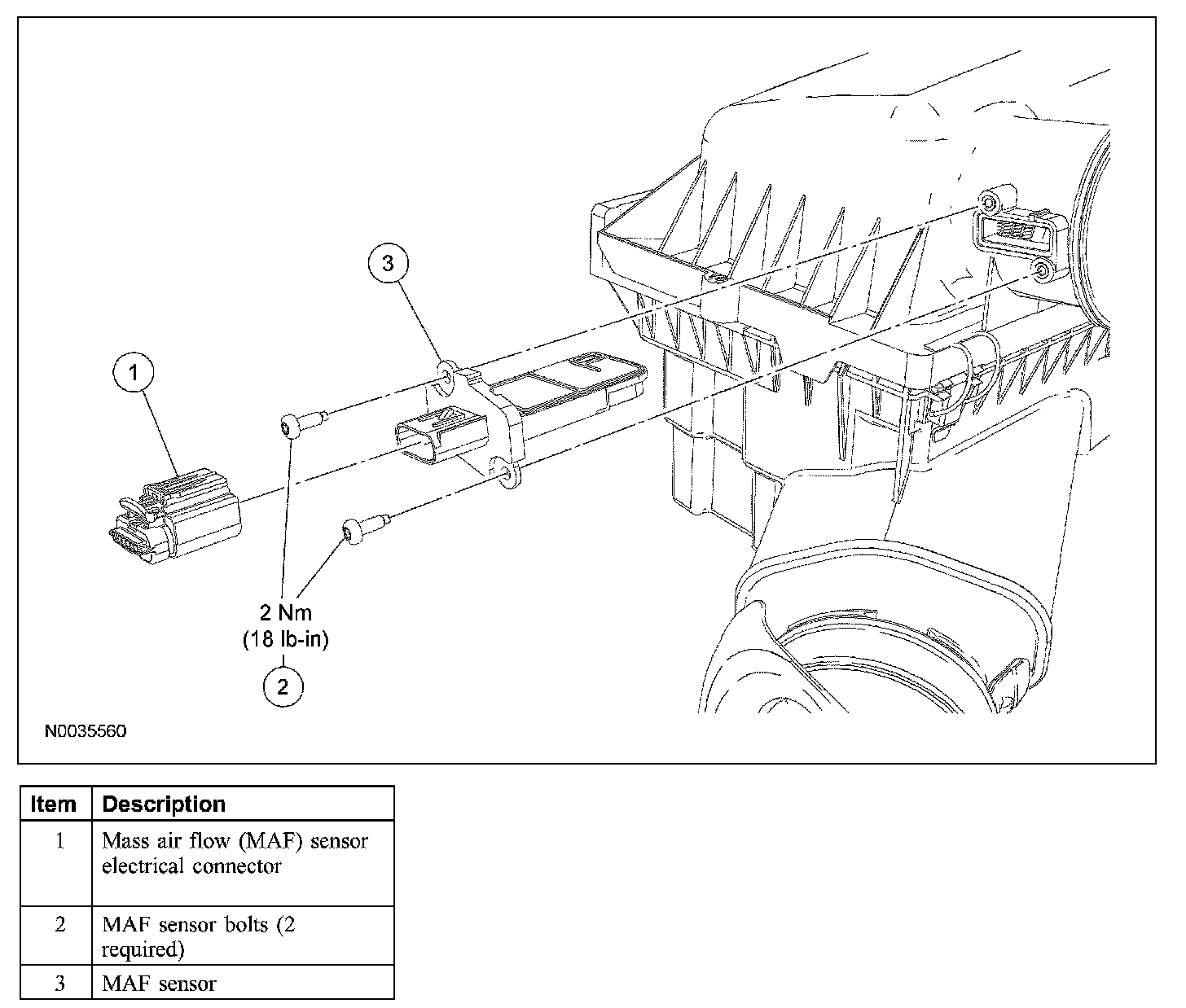

MASS AIR FLOW (MAF) SENSOR







Removal and Installation
1. Disconnect the battery ground cable.
2. Disconnect the mass air flow (MAF) sensor electrical connector.
3. Remove the bolts and the MAF sensor.
- To install, tighten to 2 Nm (18 lb-in).

4. To install, reverse the removal procedure.
