Timing Components

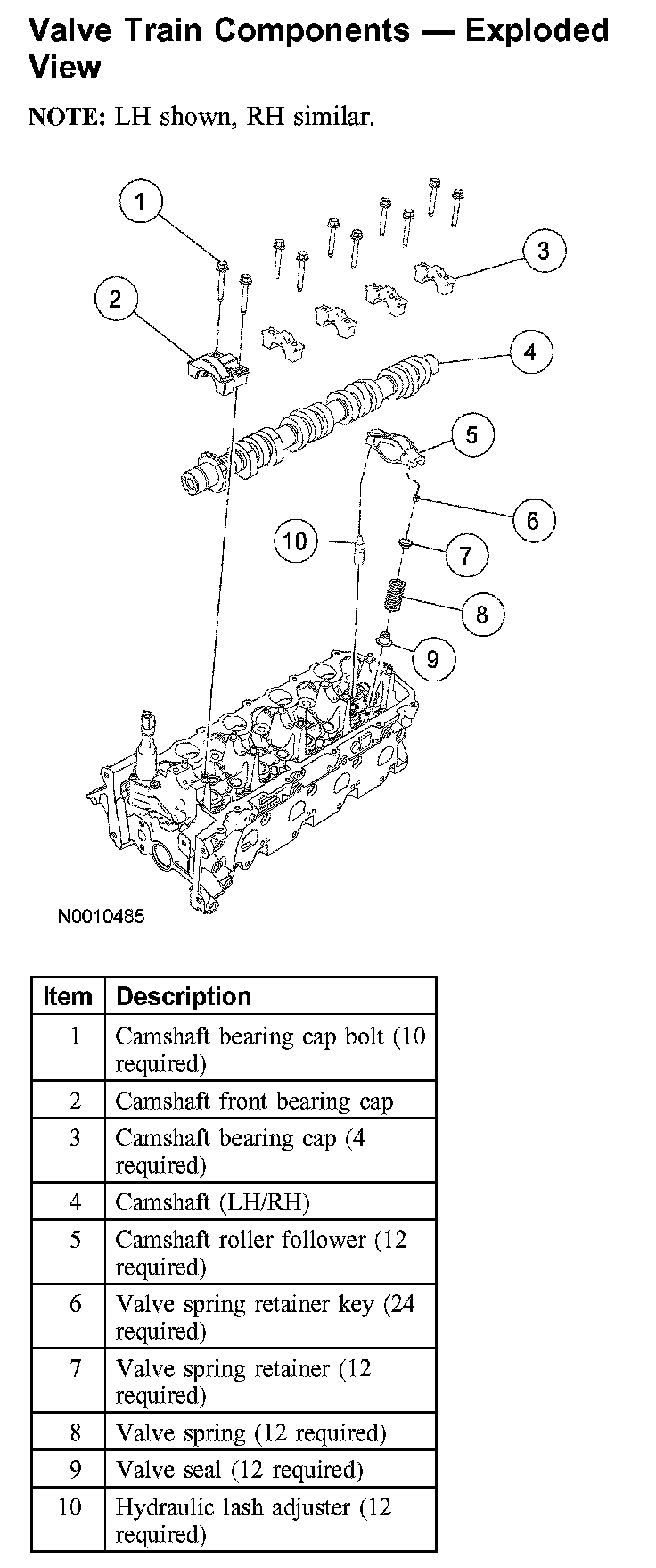

Valve Train Components - Exploded View
Valve Train Components - Exploded View:
NOTE:
LH shown, RH similar.
