Home >> Ford >> 2006 >> Explorer 2WD V8-4.6L VIN 8 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Engine Lubrication

Engine Lubrication

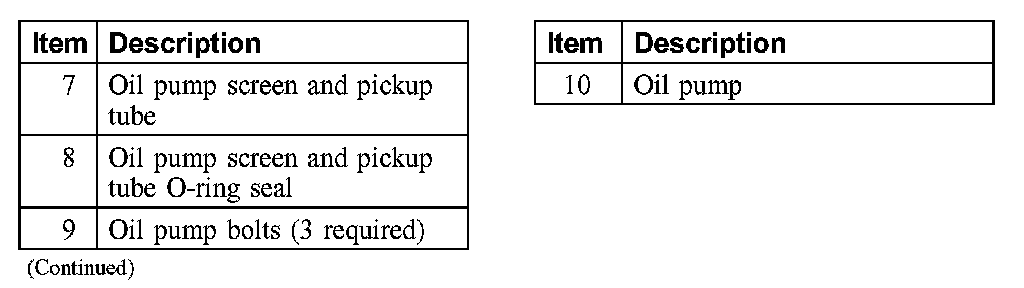

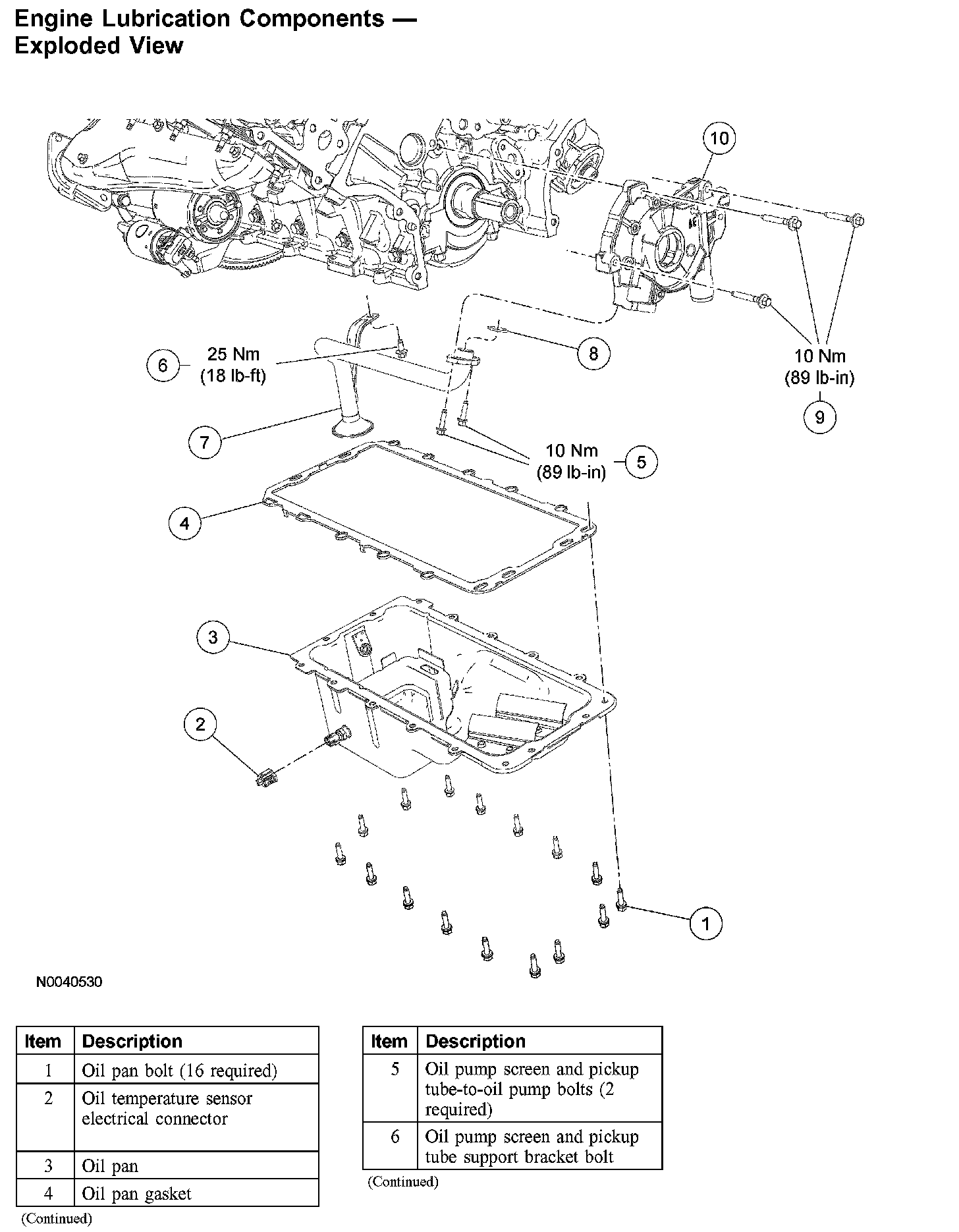

Engine Lubrication Components Exploded View:



Engine Lubrication Components Exploded View:
