Home >> Ford >> 2006 >> Escape 2WD V6-3.0L VIN 1 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Drive Belt

Drive Belt

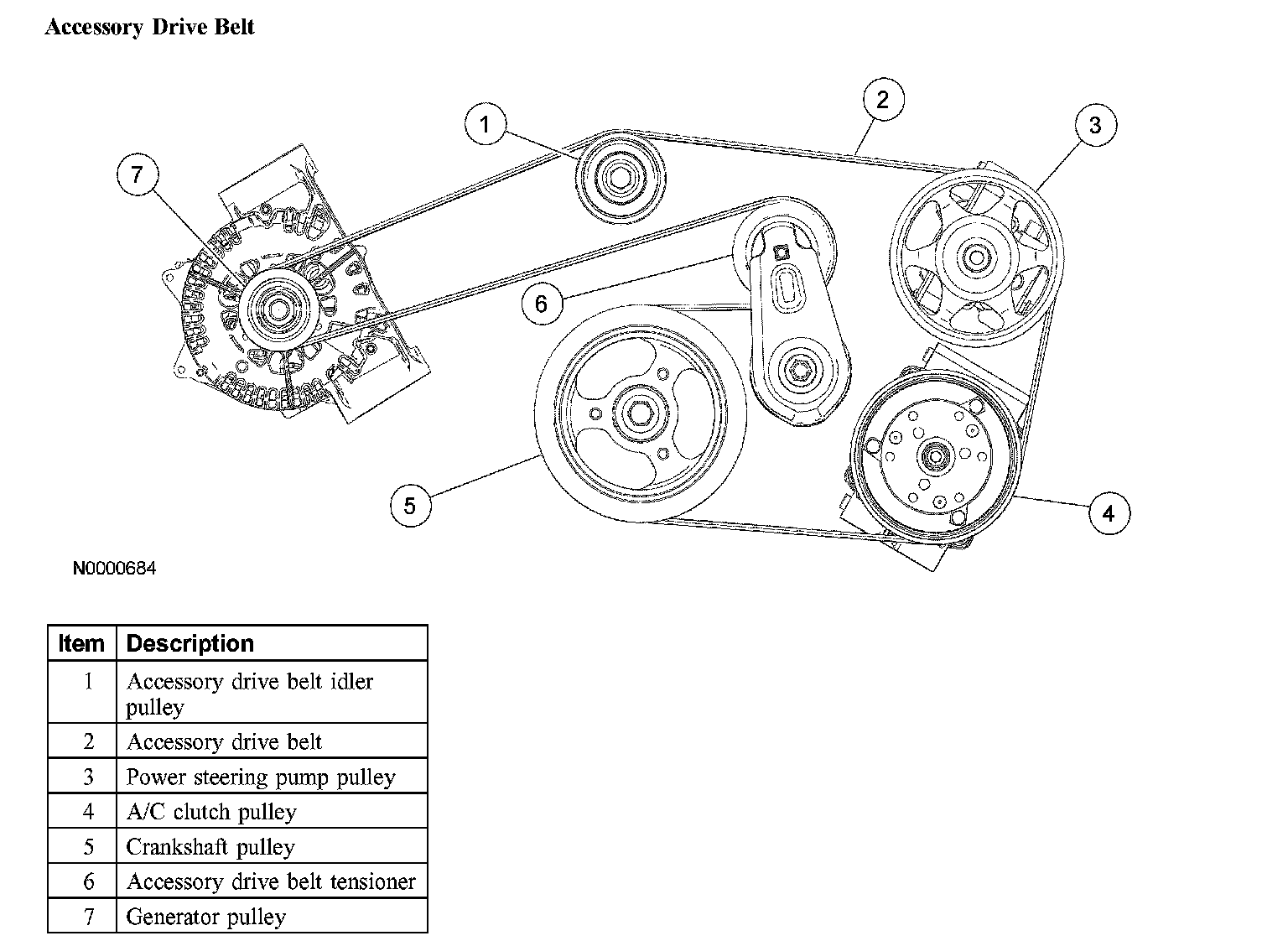

Accessory Drive Belt:

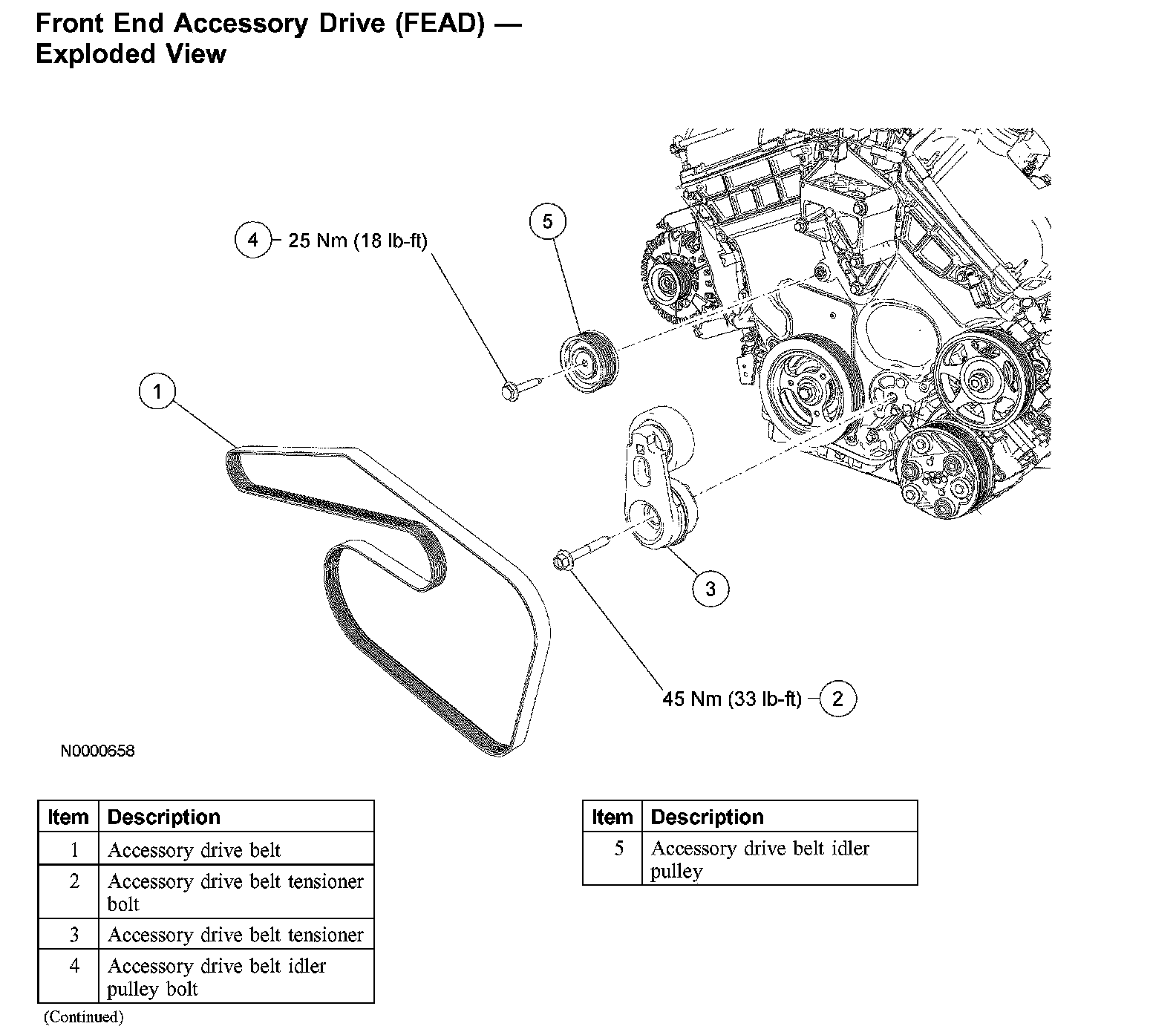

Front End Accessory Drive (FEAD) Exploded View:
