Home >> Ford >> 2006 >> Escape 2WD L4-2.3L VIN Z >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Drive Belt

Drive Belt

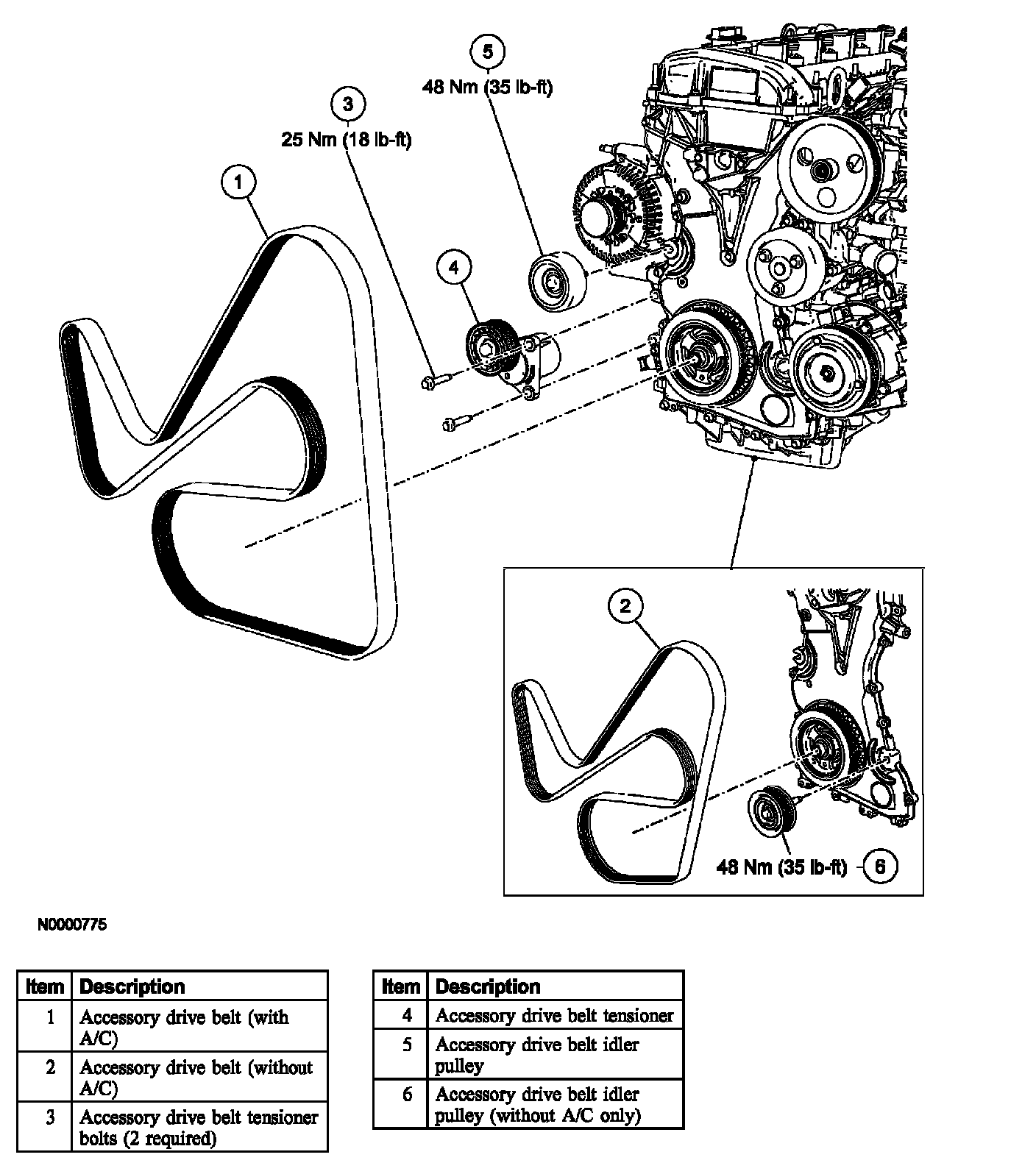

Front End Accessory Drive (FEAD)- Exploded View:
