Home >> Ford >> 2005 >> Ranger 2WD L4-2.3L VIN D >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Locations

Transmission Position Sensor/Switch: Locations

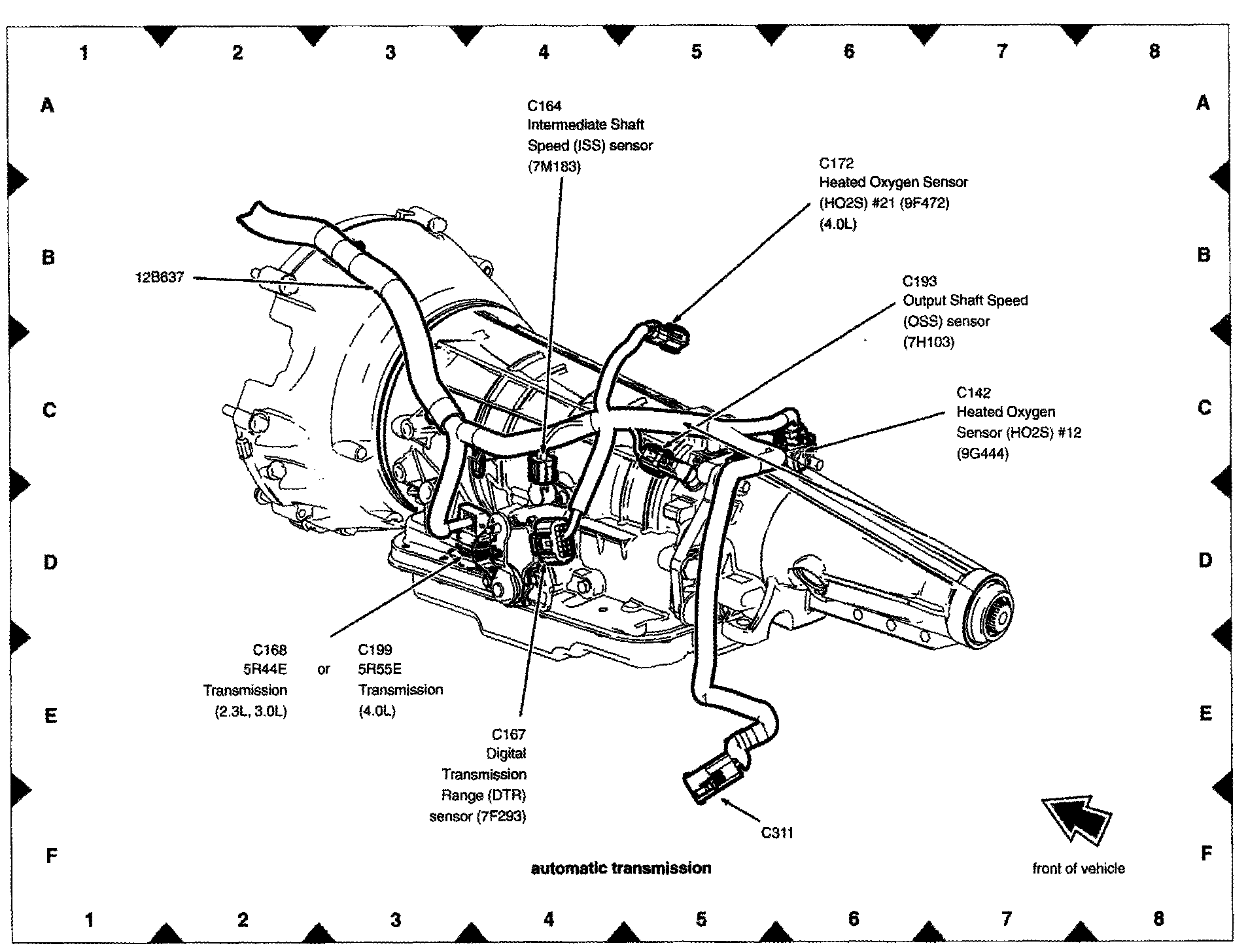

View 151-9 (Automatic Transmission):

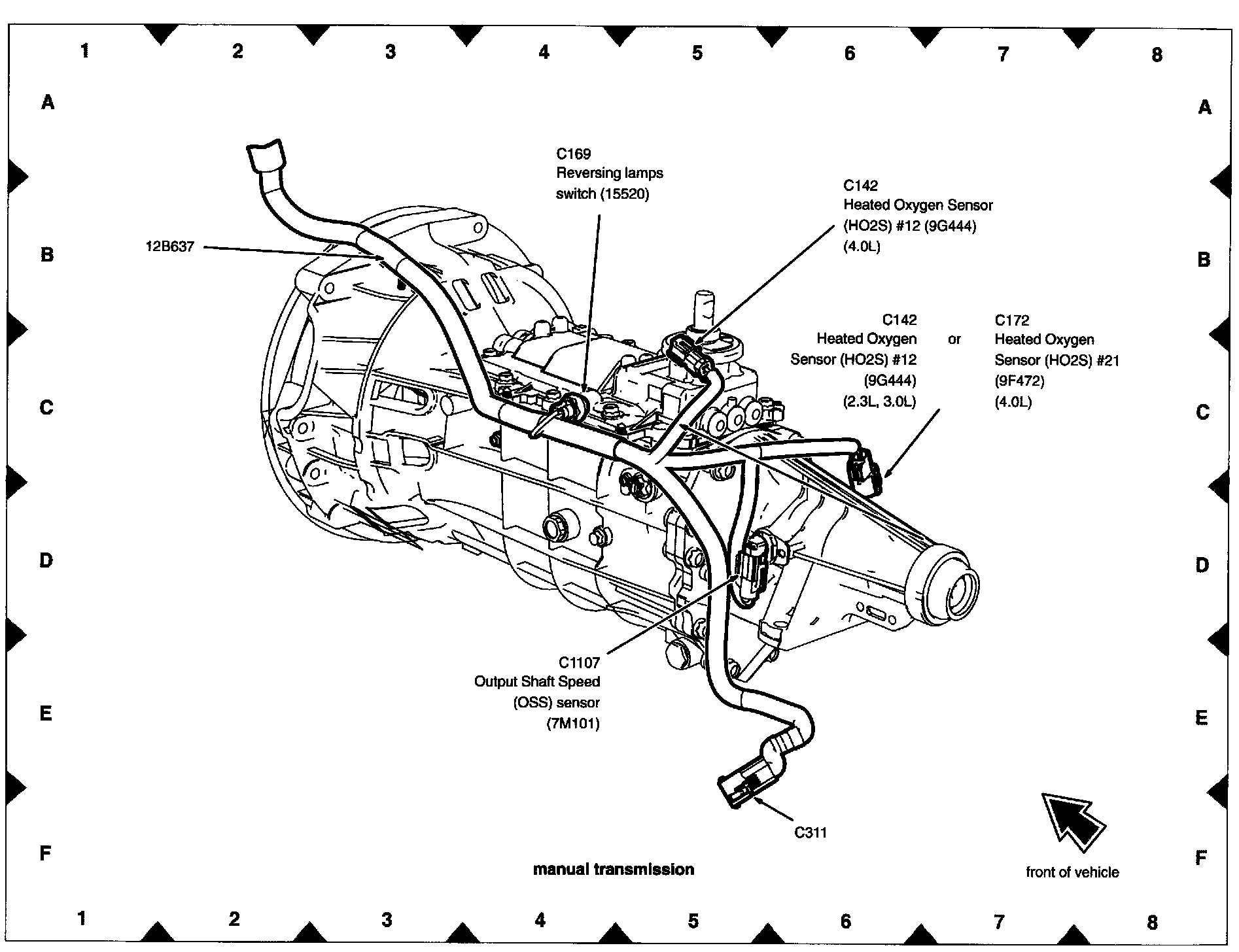

View 151-10 (Manual Transmission):
