Powertrain Control Module (PCM) C175b
Powertrain Control Module (PCM) C175b

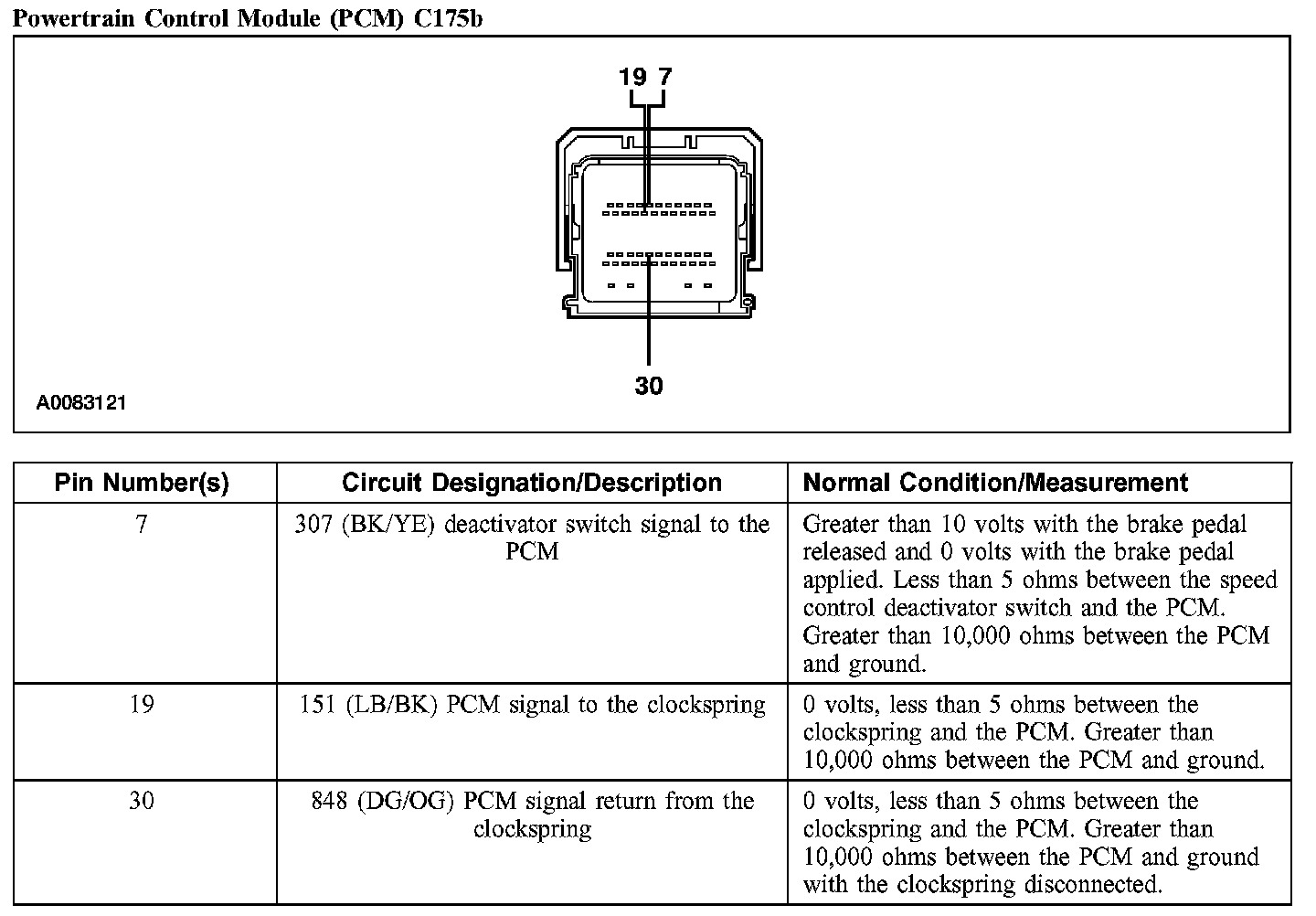

Powertrain Control Module (PCM) C175b:
