lemon-mirror
:
Home
>>
Ford
>>
2005
>>
Explorer 2WD V6-4.0L VIN E
>>
Repair and Diagnosis
>>
Body and Frame
>>
Body Control Systems
>>
Body Control Module
>>
Locations
>>
Component Locations
Component Locations

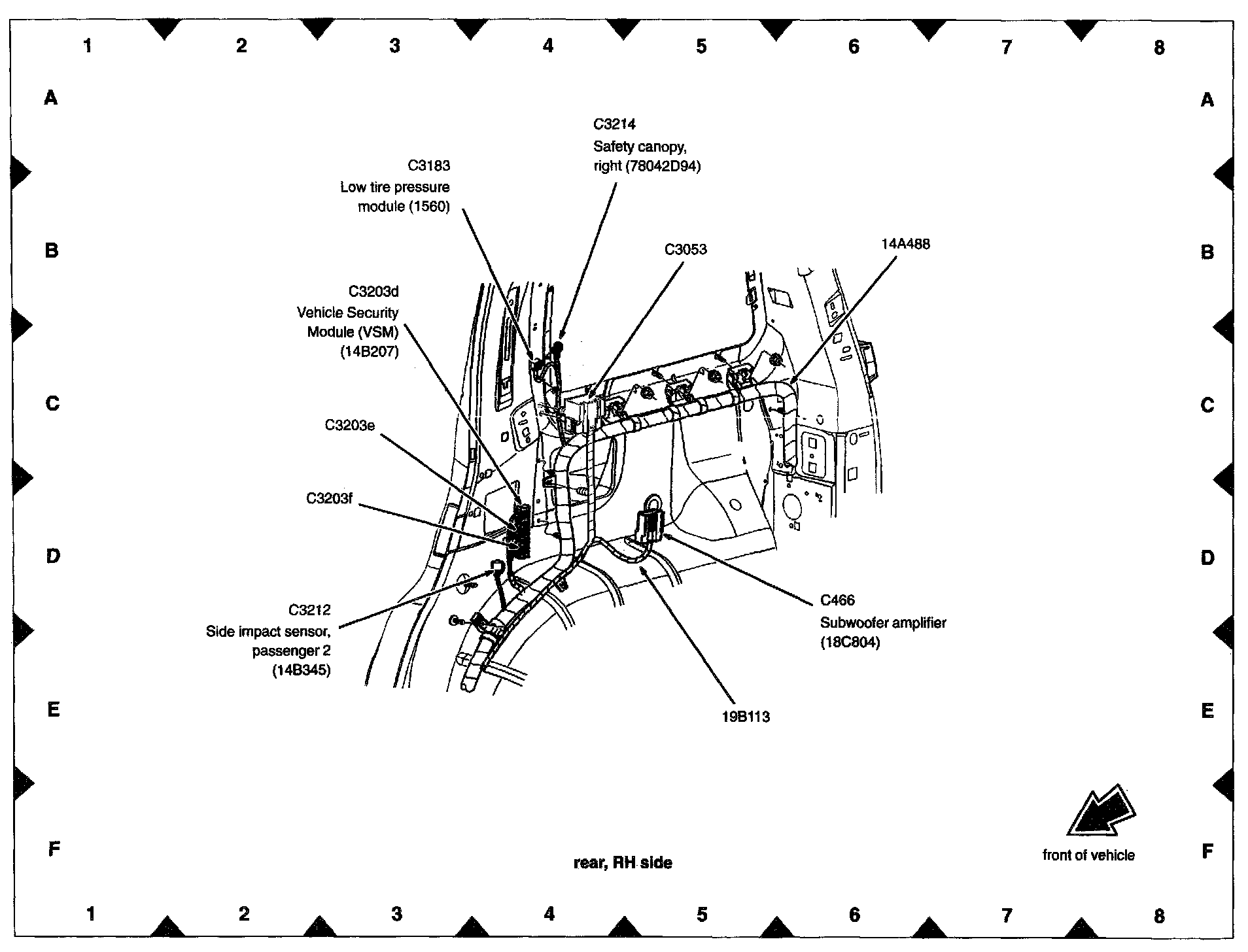

View 151-43 (Rear, RH Side):
