Engine Temperature Sensor: Service and Repair
CYLINDER HEAD TEMPERATURE (CHT) SENSORRemoval and Installation
1. Remove the upper intake manifold

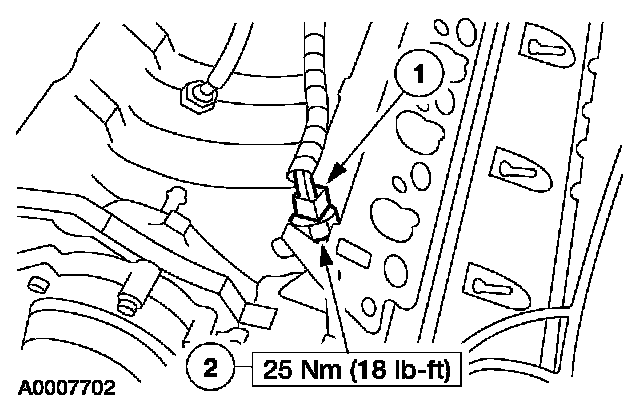

2. Remove the cylinder head temperature (CHT) sensor.
1. Disconnect the electrical connector.
2. Remove the CHT sensor.
3. To install, reverse the removal procedure.
