AUXILIARY CLIMATE CONTROL ASSEMBLY - FRONT

Removal and Installation

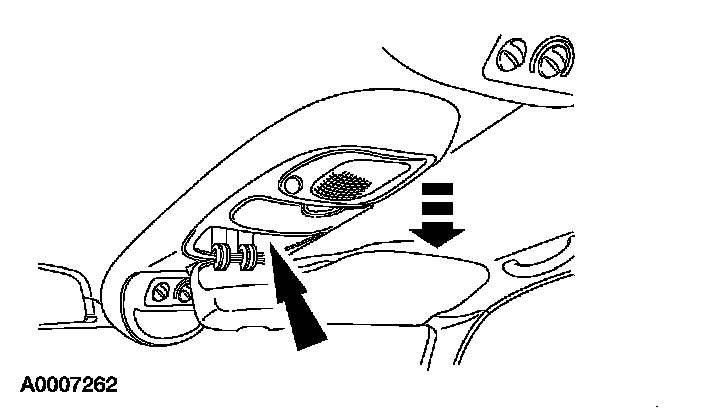

1. Remove the screw, disengage the clips, and lower the overhead console.

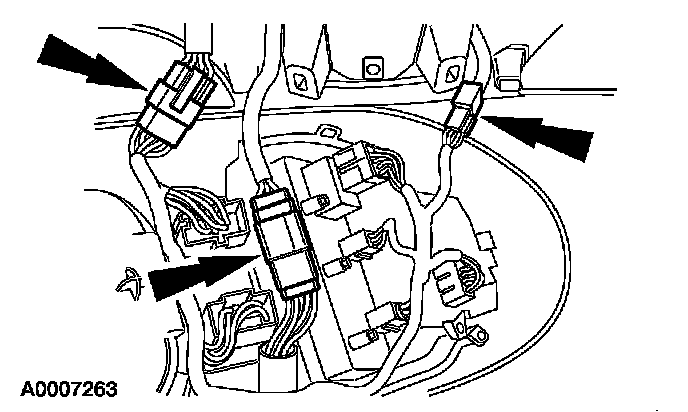

2. Disconnect the electrical connectors.







3. Remove the climate control assembly from the overhead console.

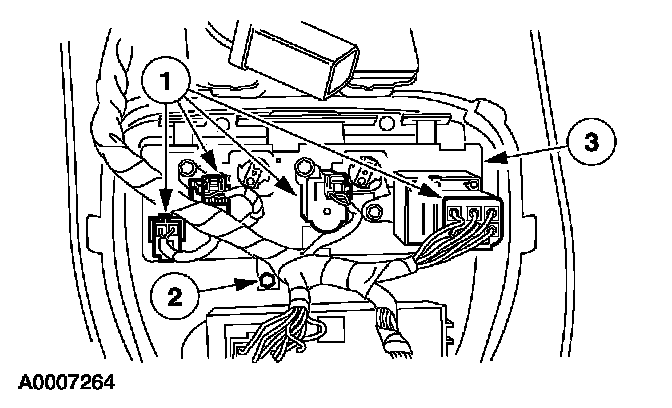

1 Disconnect the electrical connectors.
2 Remove the 2 screws.
3 Remove the climate control assembly.

4. To install, reverse the removal procedure.
