lemon-mirror
:
Home
>>
Ford
>>
2005
>>
Escape 4WD L4-2.3L VIN Z
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Engine Lubrication
Engine Lubrication
Engine Lubrication
Components- Exploded View

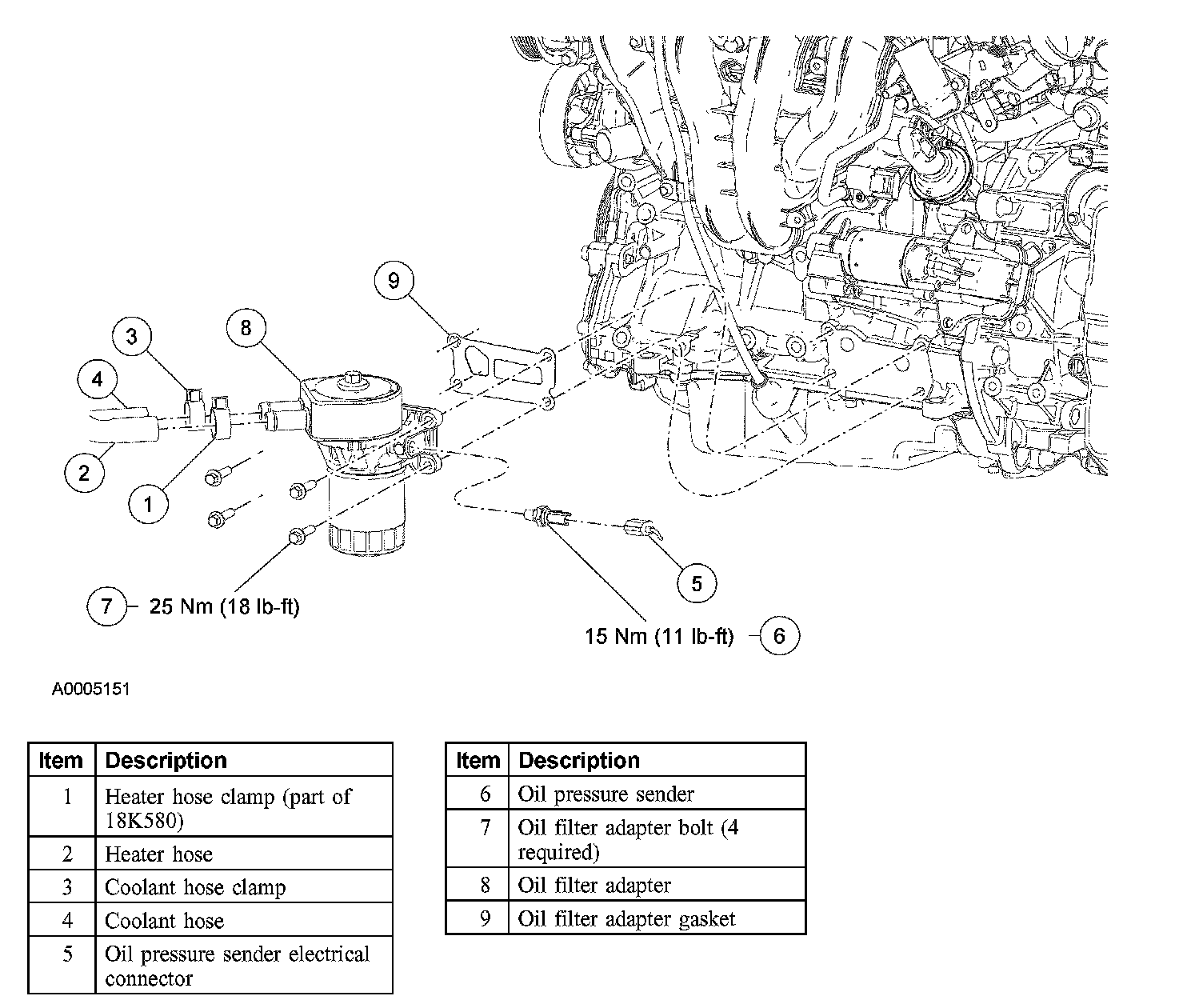

Oil Filter Adapter
and
Oil Pressure Sender

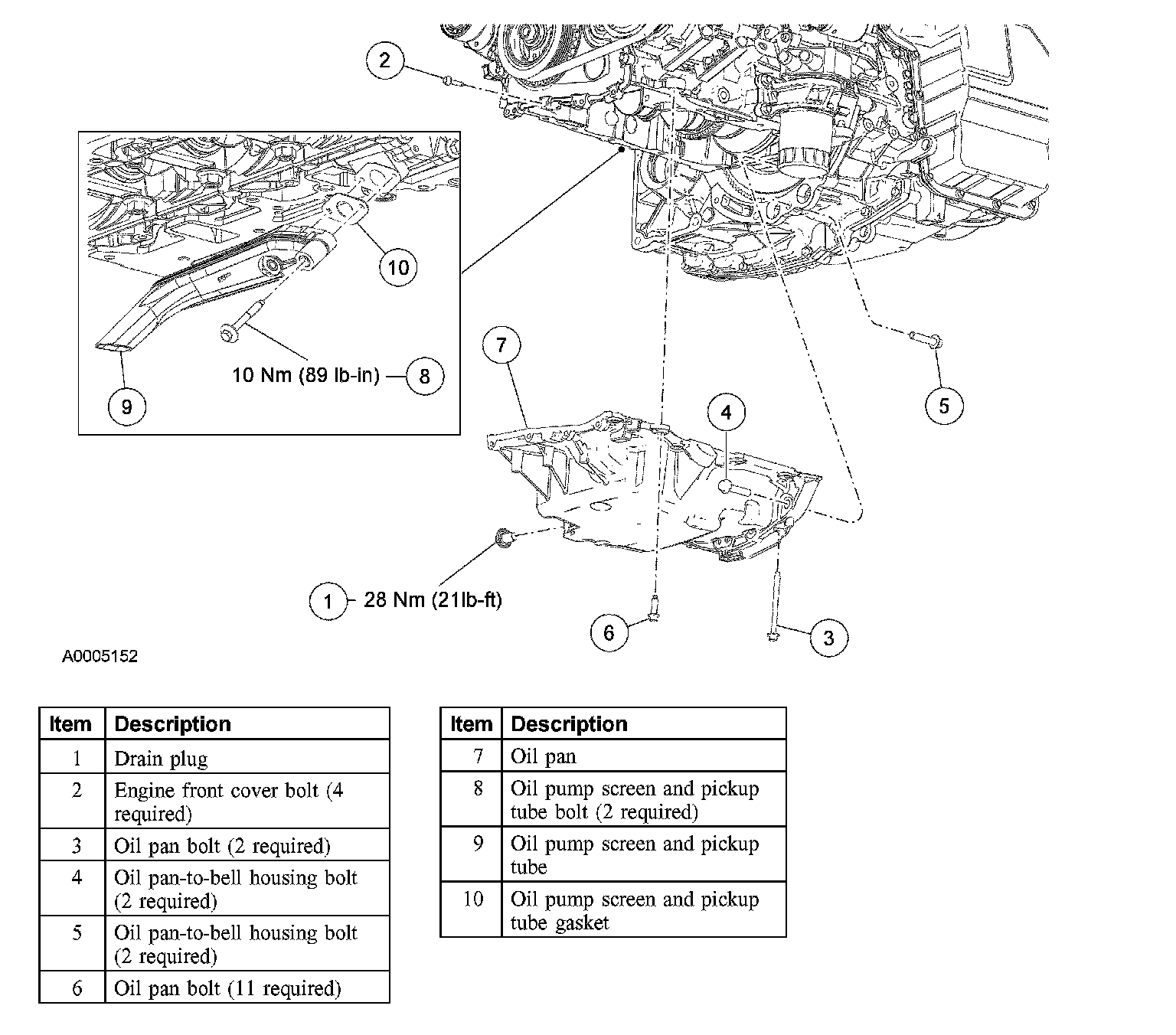

Oil Pan
, Oil Pump Screen and Pickup Tube
