Lower End Components-Exploded View

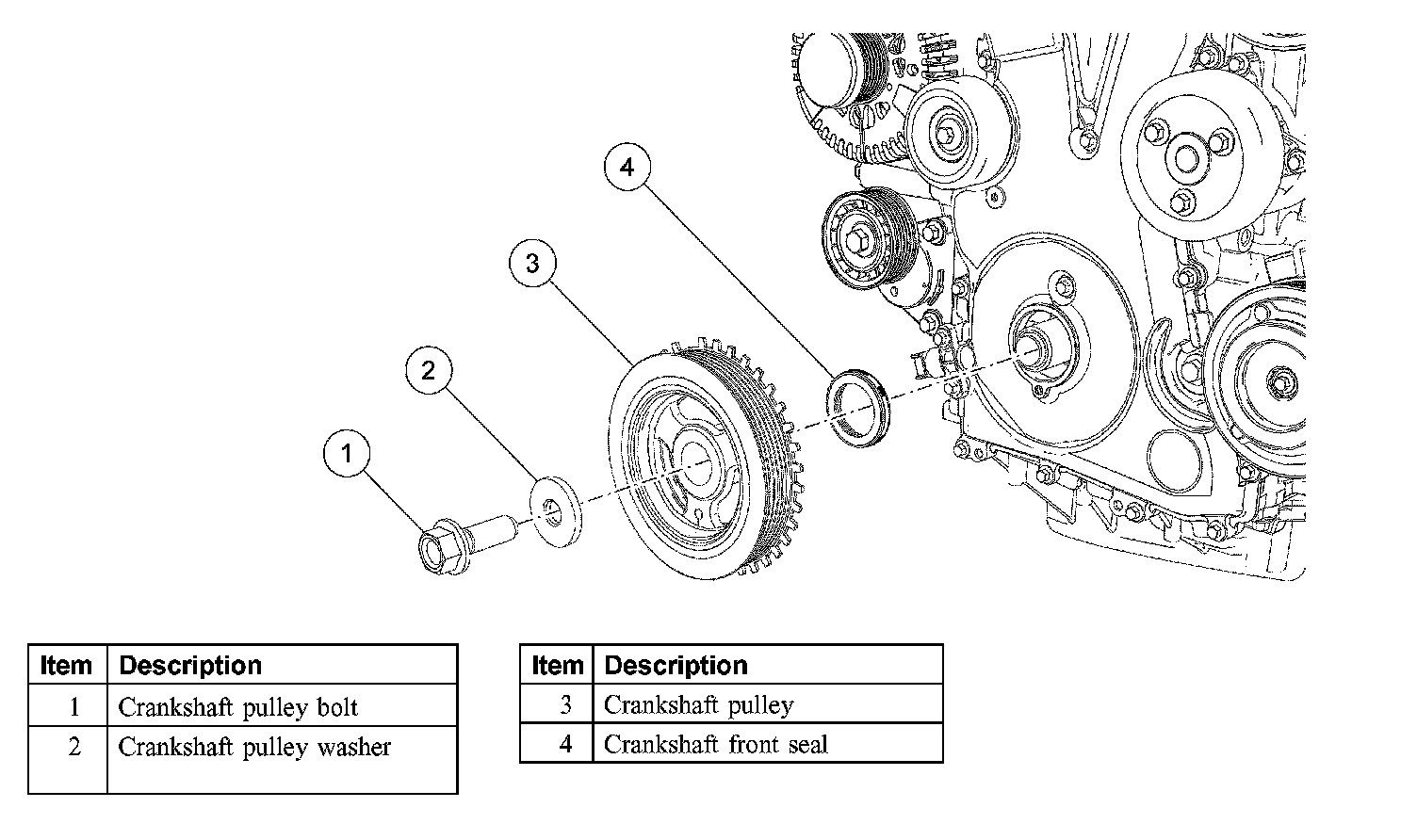

Crankshaft Pulley and Crankshaft Front Oil Seal

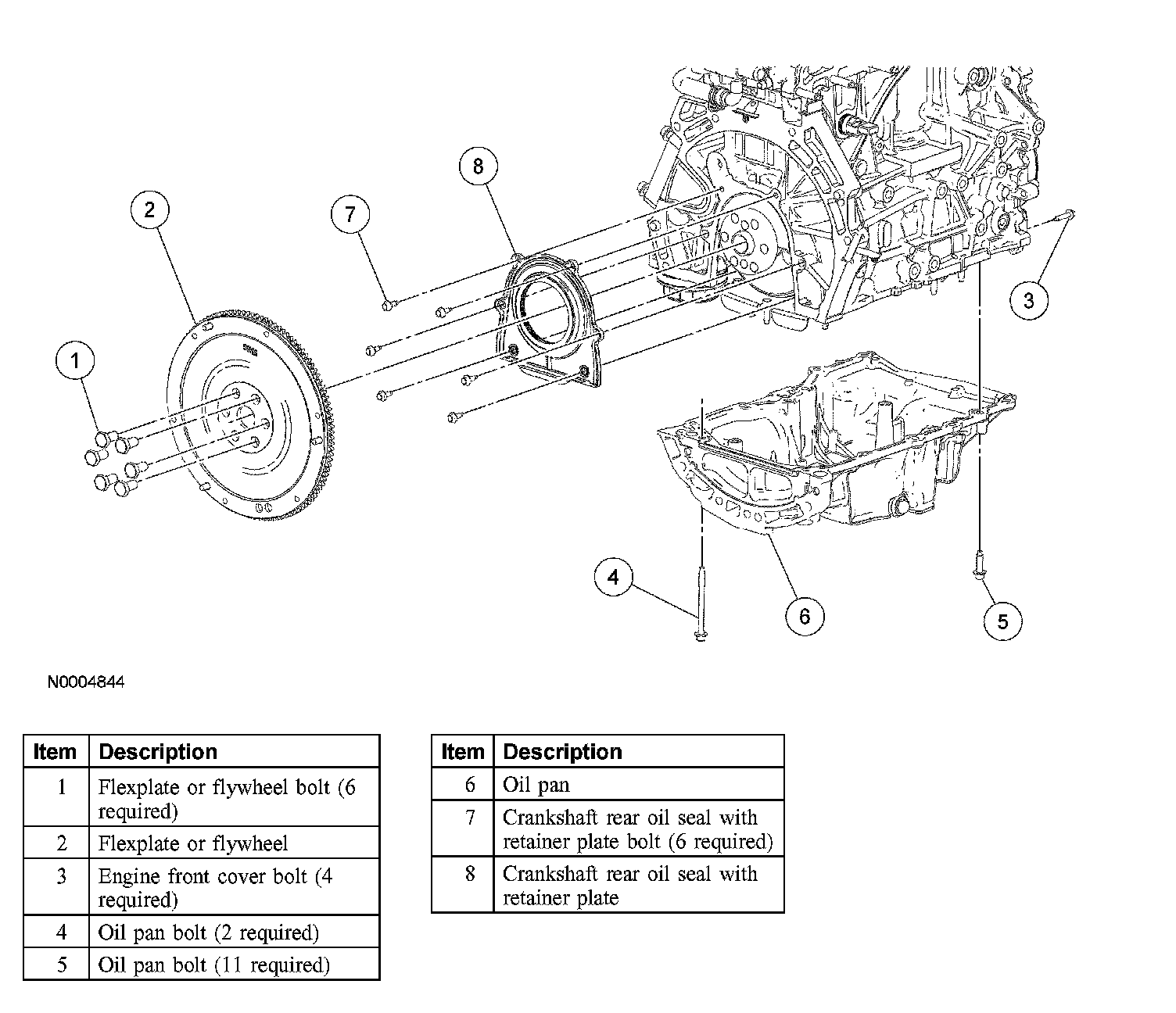

Flexplate, Flywheel and Crankshaft Rear Oil Seal
