Home >> Ford >> 2005 >> Escape 2WD L4-2.3L VIN Z >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Drive Belt

Drive Belt

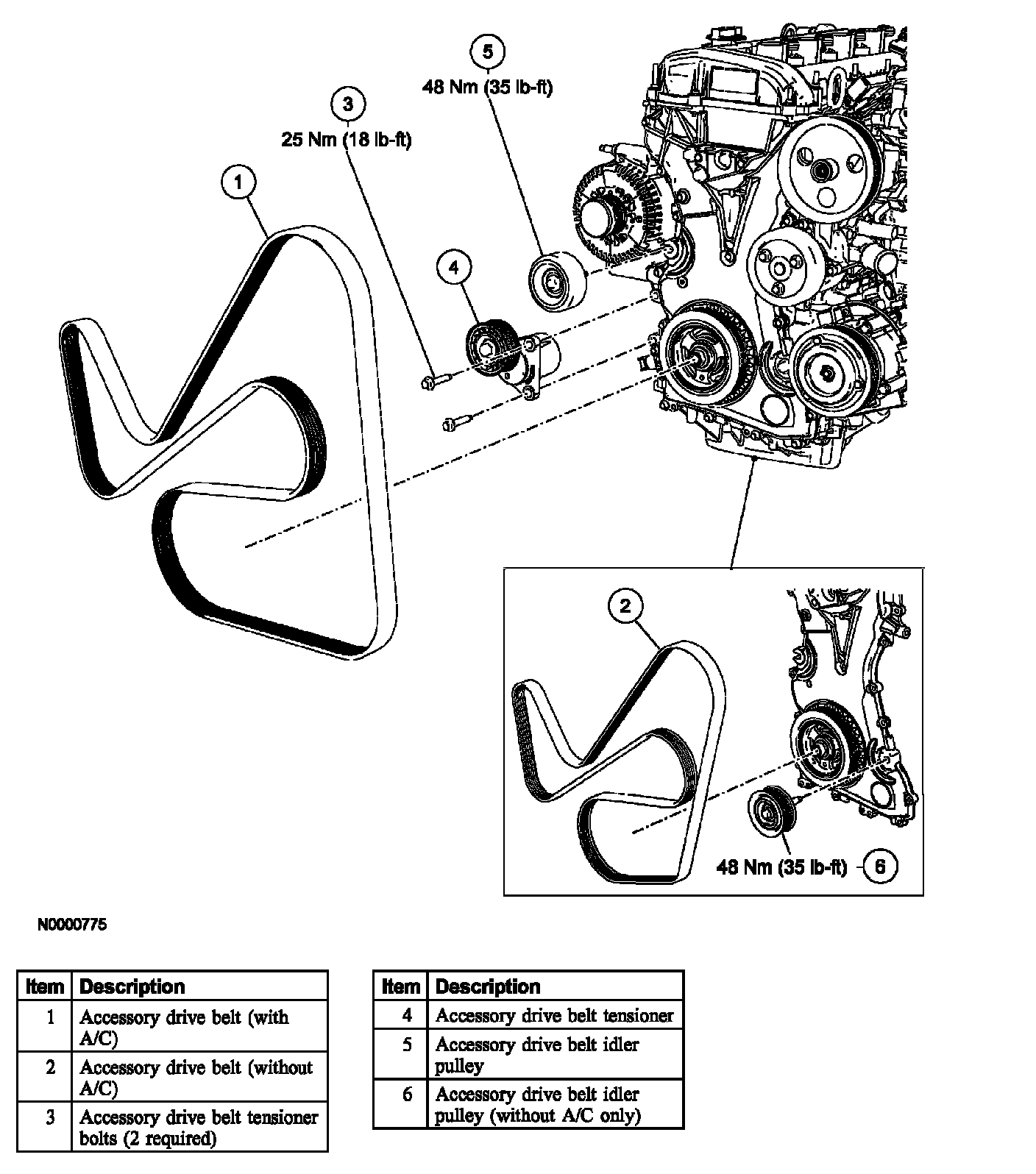

Front End Accessory Drive (FEAD)- Exploded View:





Front End Accessory Drive (FEAD)- Exploded View
