Seat Temperature Control Module
>>

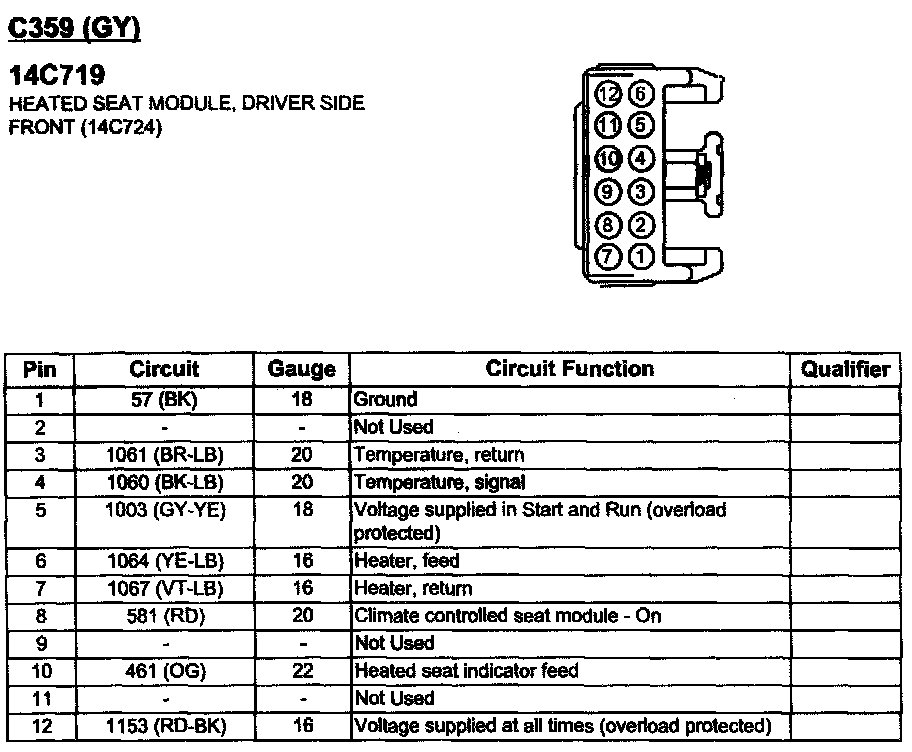

Heated Seat Module, Driver Side Front
Heated Seat Module, Driver Side Front
