Home >> Ford >> 2004 >> Taurus V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Cylinder Block - Lower

Cylinder Block - Lower

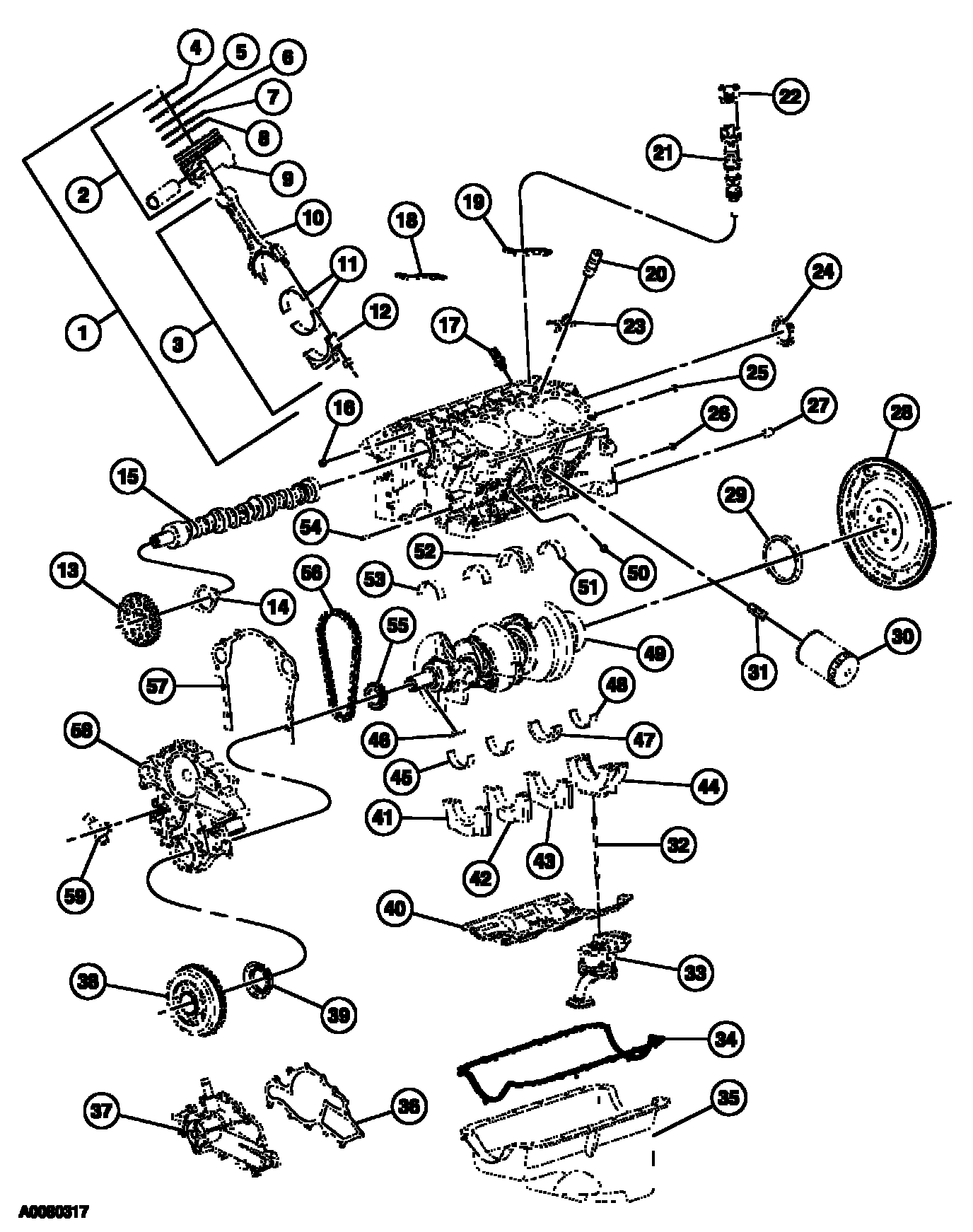

Part 1:

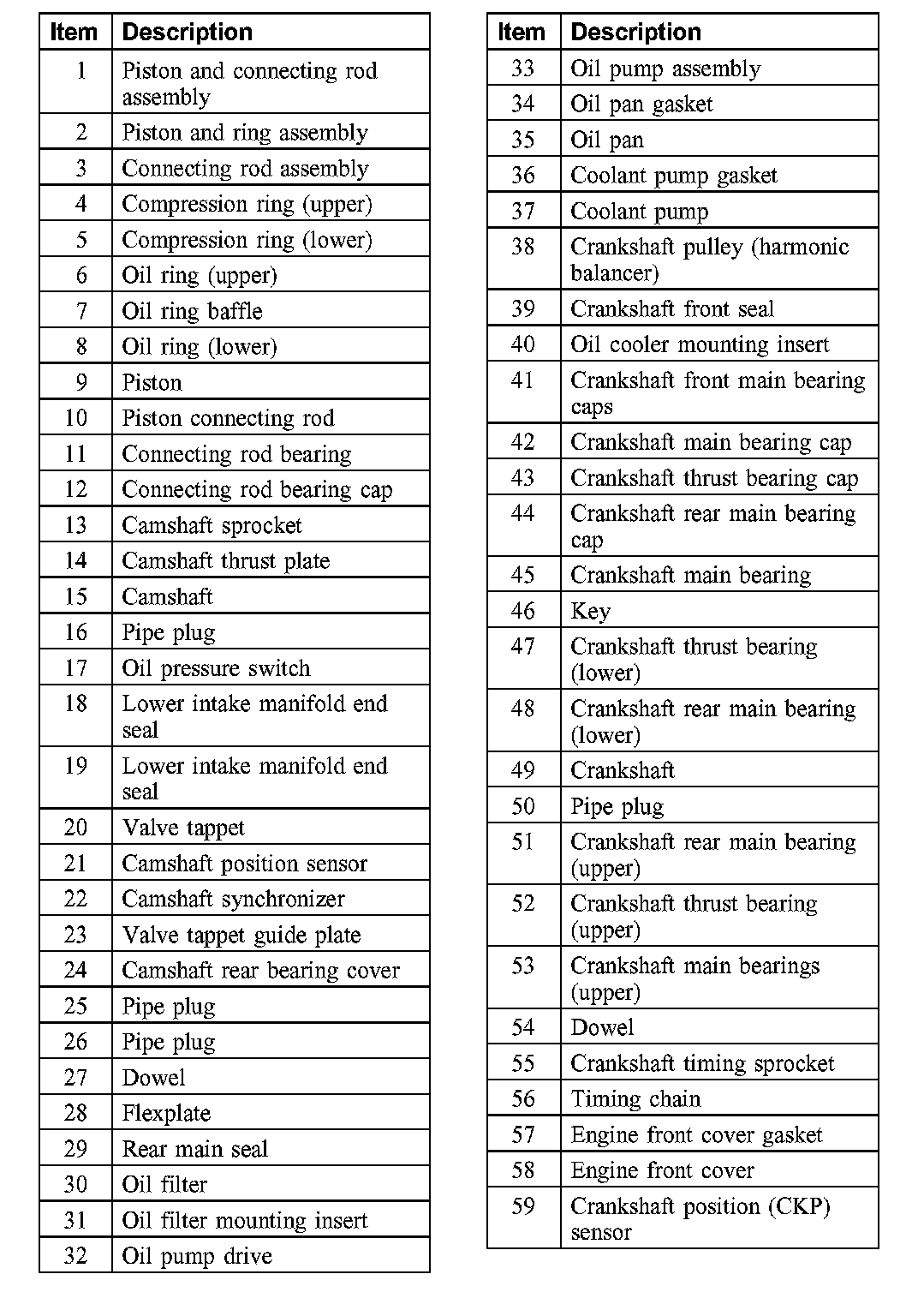

Part 2:
