Home >> Ford >> 2004 >> Taurus V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Main Components and Functions

Main Components and Functions

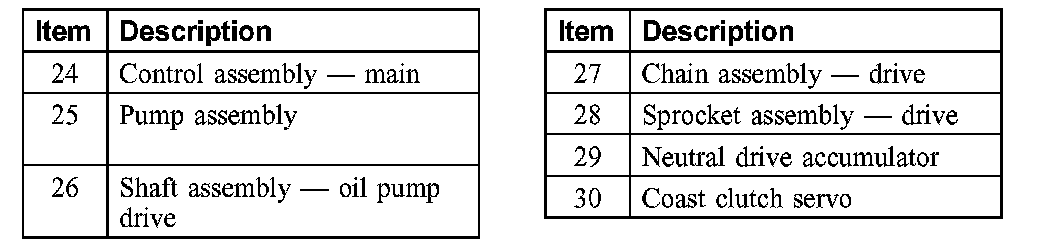

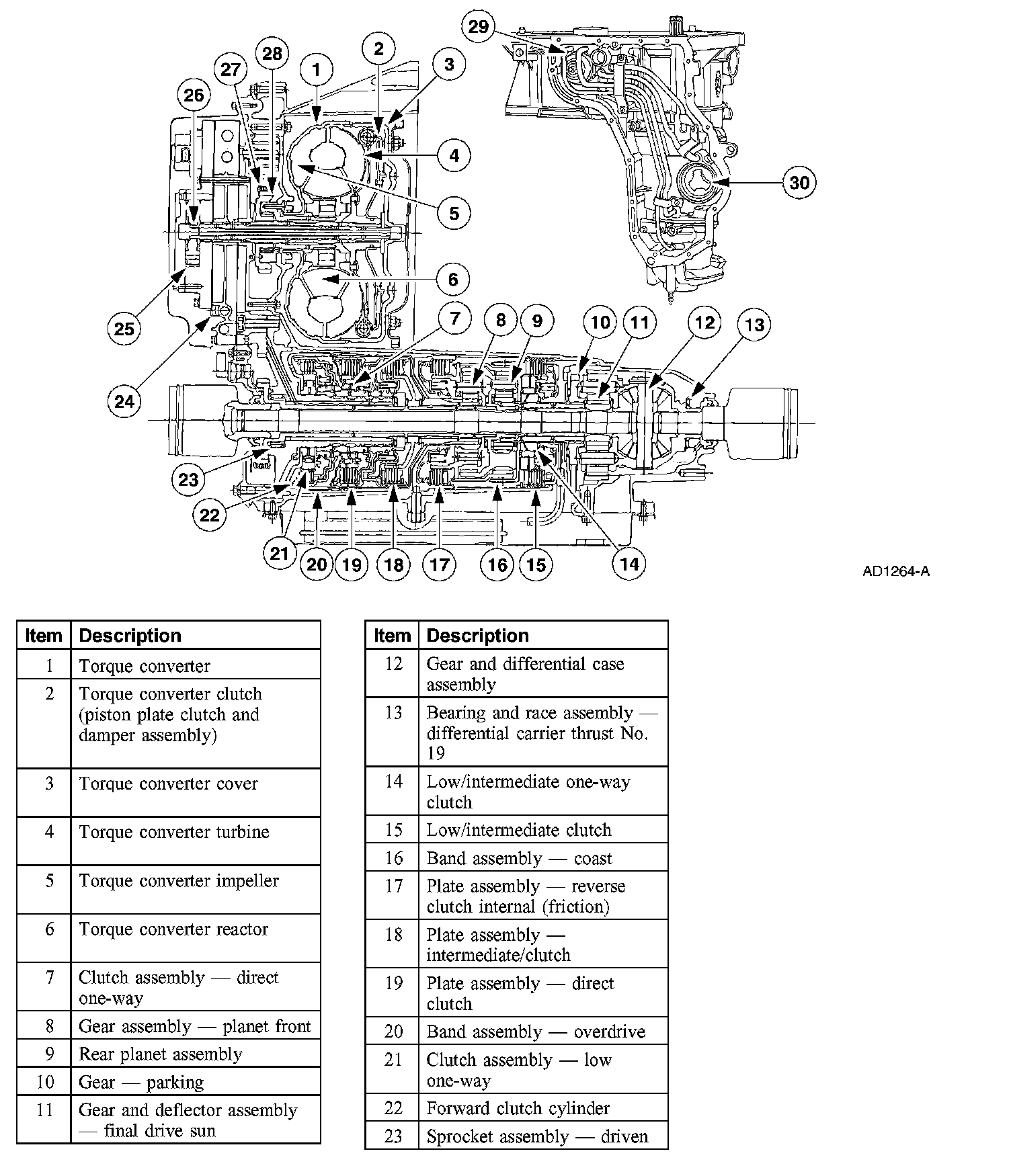

Main Components and Functions

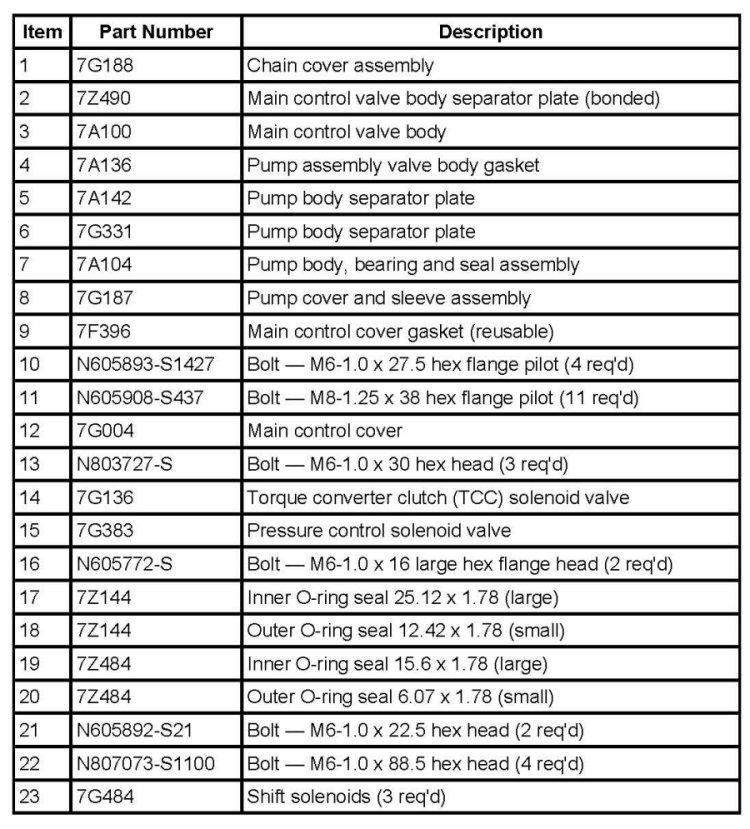

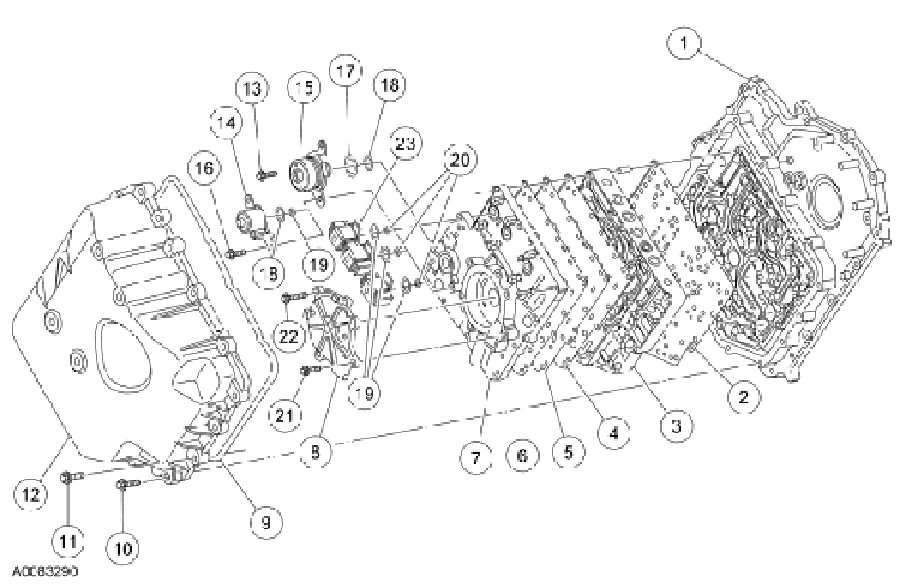

Main Control Components 1 Of 2:






Main Control Components 2 Of 2:

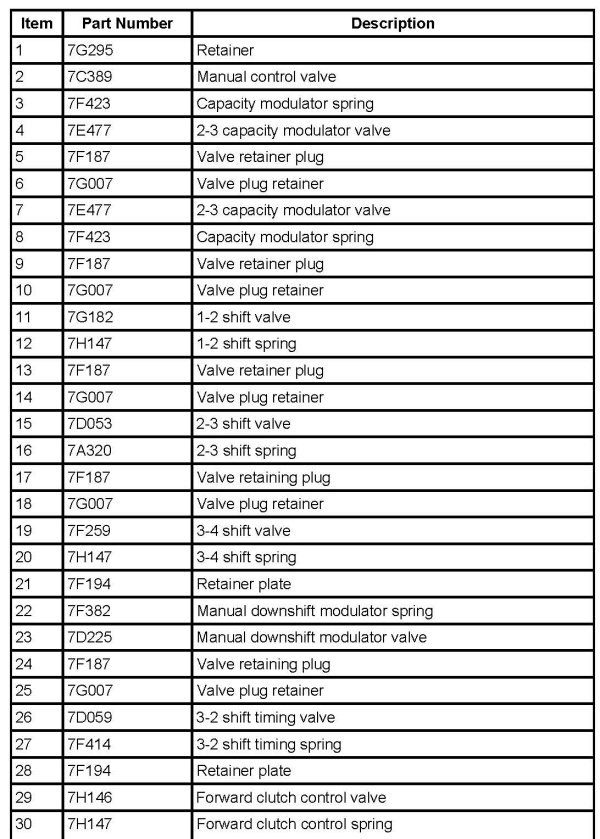

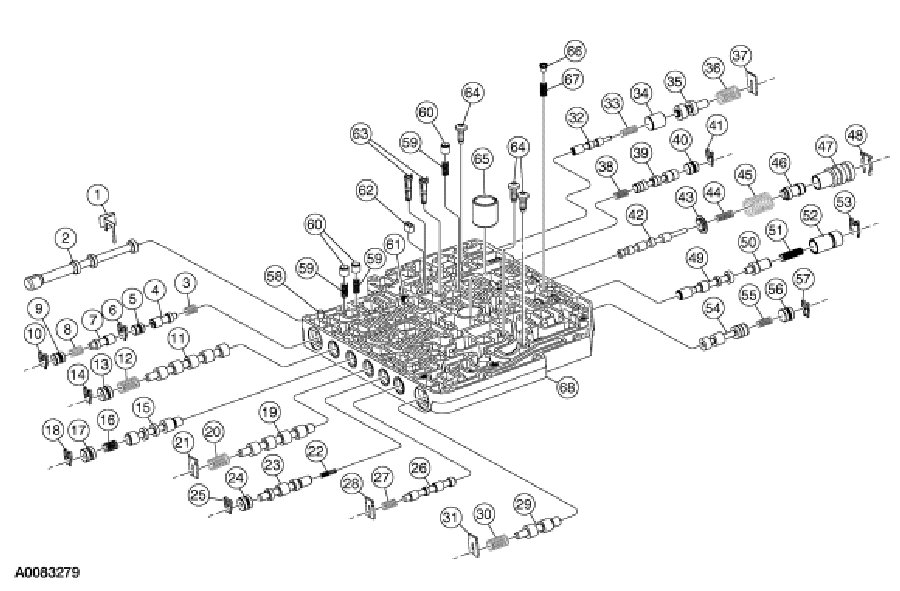

Main Control Valves 1 Of 3:






Main Control Valves 2 Of 3:

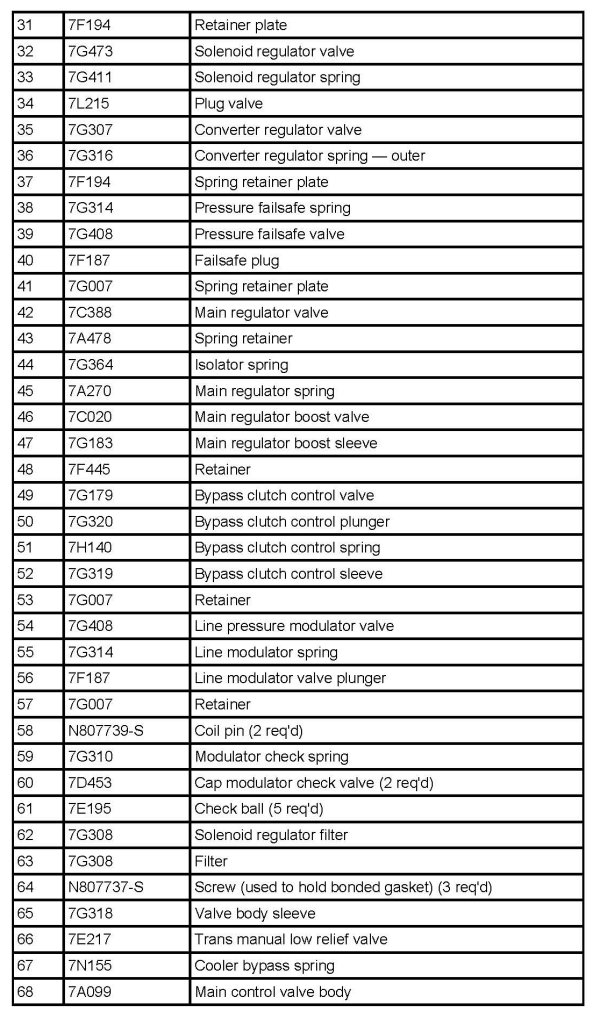

Main Control Valves 3 Of 3:
