Home >> Ford >> 2004 >> Ranger 2WD L4-2.3L VIN D >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Intake Manifold

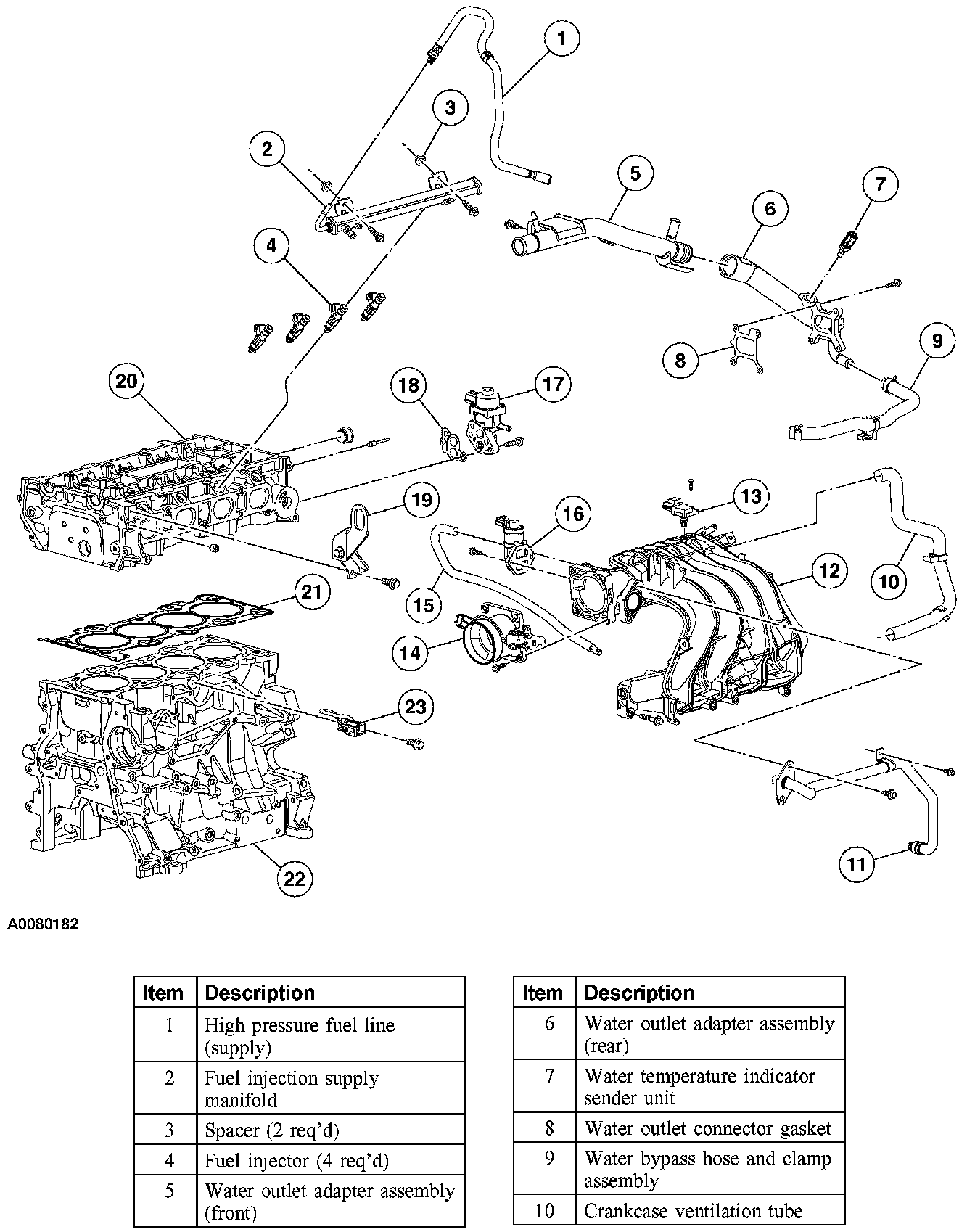

Intake Manifold

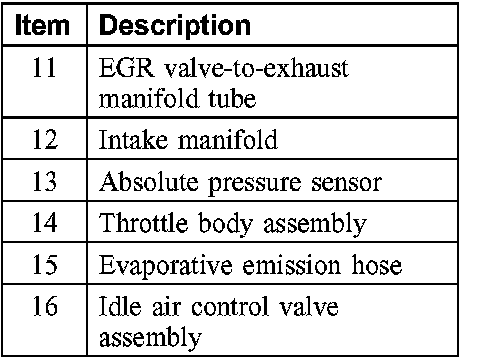

Part 1 Of 2:

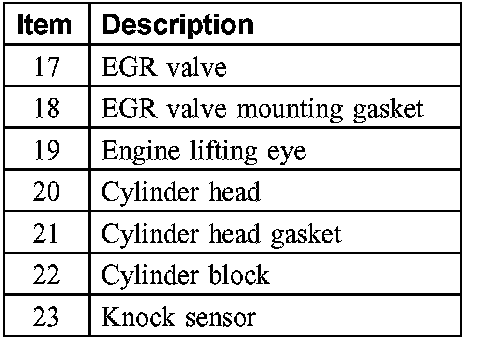

Part 2 Of 2:
